Sea-Dog 14 AWG Tan Marine Primary Wire 100 ft
Sea-Dog 14 AWG Tan Marine Primary Wire 100 ft — Product description

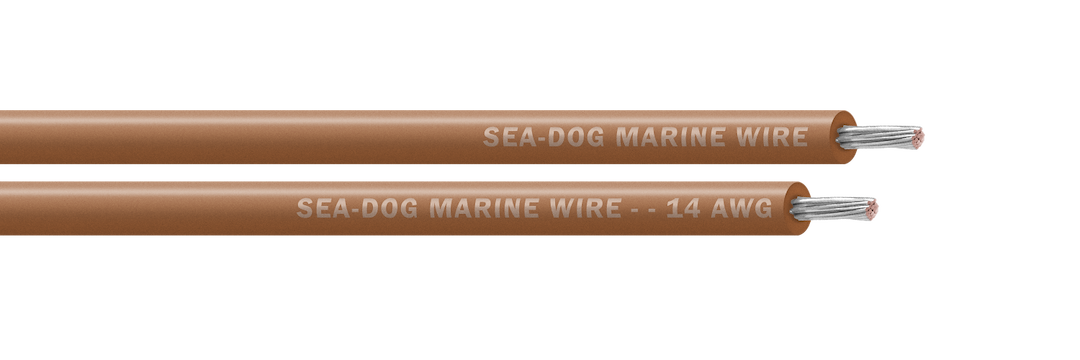

Sea-Dog 14 AWG primary wire is single-conductor tinned copper on a 100-foot spool, built for the marine environment. The tan jacket gives you another color for a clean harness, and it's UL listed and ABYC certified so your wiring holds up to salt, moisture, and vibration. A solid choice for mid-range 12-volt circuits on any boat.
If you're rewiring a boat or running a new accessory circuit, this Sea-Dog 14 AWG primary wire is the kind of tinned copper you want behind the dash. It's a single-conductor stranded wire in a tan jacket, 100 feet on the spool, and it's built for the marine environment where cheap automotive wire corrodes and goes brittle. Tinned copper is the whole point. Every strand carries a thin tin coating that fights off the corrosion salt air and bilge moisture cause over time.
The 14 gauge size is a workhorse. It handles a lot of the mid-range 12-volt circuits on a typical boat: nav lights, bilge pump runs, courtesy lighting, livewell pumps, and small electronics feeds. Stranded conductor means it flexes around tight corners and stands up to the constant vibration a boat sees underway, where solid wire would eventually fatigue and crack. The tan color gives you another wire to work with when you're color-coding a harness and you've already used up your reds, blacks, and yellows.
This wire is UL listed and ABYC certified, which matters if you care about doing the job right or if a surveyor is ever going to look at your work. ABYC is the standard marine electrical systems are held to, and using certified wire is part of keeping a safe, insurable boat. Just remember that ampacity on a boat isn't only about the gauge. Run length drives voltage drop, so on a long pull you may need to step up a size. Check an ABYC ampacity and voltage-drop chart against your circuit before you commit.
One thing worth knowing: this is primary wire, a single insulated conductor, not duplex or triplex. If you need two or three conductors in one jacket for a pump or a light, that's a different Sea-Dog product. For single runs where you're pulling individual colors through a chase or a loom, 100 feet gives you plenty to work with on most boats.
Key Features
- 14 AWG stranded tinned copper conductor, sized for mid-range 12-volt circuits like nav lights, bilge pumps, and livewell pumps
- Tinned copper construction resists the corrosion salt air and bilge moisture cause, outlasting bare-copper automotive wire
- Stranded conductor flexes around tight bends and handles constant onboard vibration without fatiguing like solid wire
- 100-foot spool gives you plenty of length for full accessory runs on most boats
- UL listed and ABYC certified, the standard for safe, insurable marine wiring
- Tan insulation adds another color for keeping a wiring harness organized and traceable
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog 14 AWG Tan Marine Primary Wire, 100 ft Tinned Copper |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 8014122 |
| UPC | 035514802864 |
| Wire Gauge | 14 AWG |
| Conductor Type | Stranded |
| Conductor Material | Tinned Copper |
| Color | Tan |
| Length | 100 Feet |
| Certification | UL / ABYC |
| Wire Type | Primary Wire |
Frequently asked questions
How many amps can 14 gauge marine wire carry?
14 AWG primary wire is generally used for circuits up to around 15 amps, but the safe rating drops as the run gets longer because of voltage drop. Don't just go by gauge. Check an ABYC ampacity and voltage-drop chart against your actual run length before you size a circuit.
Is this wire tinned or bare copper?
It's tinned copper. Every strand carries a thin tin coating that resists corrosion from salt air and moisture, which is why tinned wire is the standard choice for boats instead of the bare-copper wire you'd use in a car.
Is this wire UL and ABYC certified?
Yes. It's UL listed and ABYC certified. ABYC is the standard marine electrical work is held to, so using certified wire helps keep your boat safe and insurable.
What's the difference between this and duplex wire?
This is primary wire, a single insulated conductor. Duplex and triplex wire bundle two or three conductors in one jacket. For single-color runs pulled through a loom or chase, primary wire is what you want. For a pump or light that needs paired conductors, look at Sea-Dog duplex or triplex.
What color is this wire and why does color matter?
This spool is tan. On a boat, color-coding your wiring makes troubleshooting far easier down the road. Tan gives you another circuit color once you've used up the common reds, blacks, and yellows.
What can I use 14 gauge wire for on my boat?
It's a common size for mid-range 12-volt circuits: navigation lights, courtesy and cabin lighting, bilge pump runs, livewell pumps, and feeds to small electronics. Always confirm the load and run length against an ampacity chart first.
