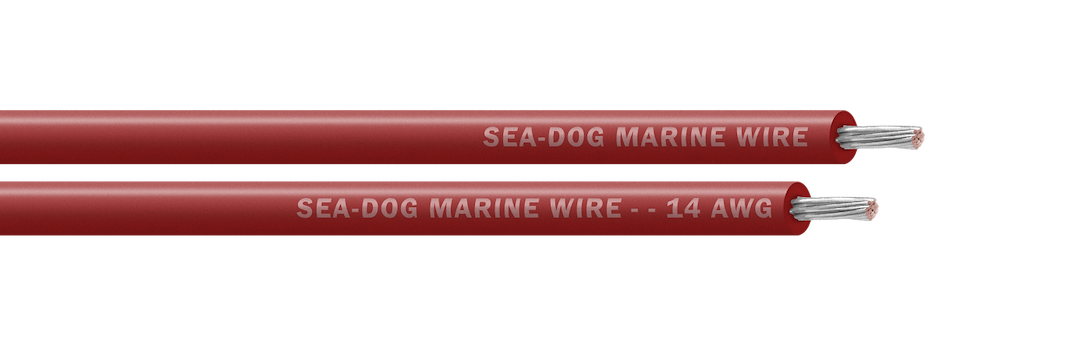

Sea-Dog 14 AWG Red Tinned Copper Primary Wire, 500 ft Spool

If you've ever chased down a dead nav light or a pump that won't prime, you already know most 12V gremlins live in the wire, not the gear. This Sea-Dog 14 AWG primary wire is the honest fix. It's 500 feet of stranded, tinned copper conductor on a single spool, wrapped in red PVC insulation, and it's UL and ABYC certified. That's the wire you want feeding the small and mid-size DC circuits all over your boat.

Fourteen gauge is the workhorse size on most boats. It's right for cabin and nav lighting, small bilge and washdown pumps, electronics power leads, stereo runs, accessory switches, and just about any low-to-moderate draw circuit you'll wire. The red jacket marks it as a positive run at a glance, which makes troubleshooting at the panel a lot faster six months from now when you've forgotten how you ran it.

Here's why the tinned copper matters. Bare copper corrodes on a boat. Salt air finds its way into every locker and bilge, and once a strand starts to green up, resistance climbs, connections heat, and the circuit gets flaky. Every strand in this wire is tin-plated, so it shrugs off that corrosion and holds a clean connection for years. It also takes solder beautifully and crimps clean, so your ring and spade terminals actually bite the way they should.

And it's stranded, not solid. That's not a small thing on a boat. Solid wire work-hardens and cracks under constant vibration and flexing. Stranded 14 AWG stays flexible, snakes through tight chases behind the helm, and takes the pounding of a hull slapping chop without fatiguing at the terminals.

The 500 foot spool is the buy-once size. If you're doing a full rewire, running new circuits on a project boat, or you just want a roll on the shelf for every small repair for the next few seasons, this covers it. One tip from the folks who do this all day: don't try to unroll the whole spool single-handed. Measure your run, cut your length, then pull it. You'll avoid kinks and save yourself a fight.

A few install notes worth passing along. Always run a voltage drop calculation for anything longer than about 20 feet. 14 AWG is plenty for short runs, but on a long pull to a bow light or a forward pump, the drop adds up and you may need to step up a gauge to keep things bright and strong. For crimped terminals, use a proper ratchet crimper and adhesive-lined heat shrink at every connection. That's the single biggest thing separating a connection that lasts a decade from one that fails in a season. Near the engine or exhaust, add high-temp sleeving to protect the PVC from heat, and on deck runs, drop it into split loom so UV doesn't fade or chalk the jacket.

Because it carries UL and ABYC certification, this wire meets the standards a surveyor or insurer wants to see. If you're building out a boat you plan to keep, or one you'll want to sell someday, wiring to spec with certified marine cable is money well spent. It's the difference between a system that passes inspection and one that raises questions.

Pair it with 14 to 16 gauge terminals and 3/8 inch adhesive-lined heat shrink for most 12V circuits, and keep a spool of black on hand for your negative runs so your color coding stays clean end to end. On aluminum boats, a dab of dielectric grease at each connection keeps galvanic corrosion from setting up where dissimilar metals meet.

Bottom line: this is the red 14 AWG you reach for again and again. Good copper, real tinning, honest certification, and enough of it to finish the job and then some. Wire it in right and you won't think about it again.
