Sea-Dog 14 AWG Gray Primary Wire, 100 ft Tinned
Sea-Dog 14 AWG Gray Primary Wire, 100 ft Tinned — Product description

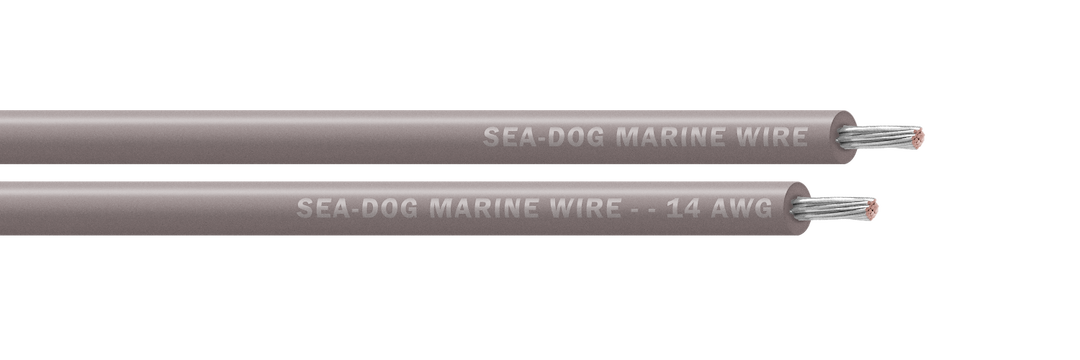

Sea-Dog's 14 AWG primary wire gives you 100 feet of stranded, tinned-copper conductor on a single spool, wrapped in gray PVC insulation. It's the everyday wire you reach for when you're running a new circuit, chasing down a bad ground, or color-coding a panel. Flexible, corrosion-resistant, and easy to work with at the helm.
Sea-Dog's 14 AWG gray primary wire is the kind of hookup wire you keep on the boat and reach for again and again. You get 100 feet of single-conductor, stranded tinned-copper wire on one spool, jacketed in gray PVC insulation. It's built for the everyday jobs: running a new accessory circuit, feeding a set of gauges, wiring in a light, or replacing a corroded run you finally got tired of fighting.
The conductor is tinned copper, and that matters more on a boat than anywhere else. Bare copper corrodes fast in salt air, and once the strands start to green up, resistance climbs and your connections get flaky. The tin coating on every strand slows that down, so the wire holds a clean connection at the crimp and stays flexible for years. It's the same reason we steer people toward tinned wire for anything below deck or anywhere spray can reach.
Because it's stranded rather than solid, this wire bends around bulkheads and pulls through tight chases without kinking. That flexibility makes a real difference when you're feeding a run behind a console or snaking wire through a rigging tube. Solid wire fights you in those spots. Stranded doesn't.
The gray insulation is there for circuit identification. When you're staring at a bundle behind the dash six months from now, color-coding is what keeps you sane. Pick a color per circuit type, stay consistent, and future troubleshooting gets a whole lot easier. Sea-Dog runs this same 14-gauge wire in a full range of colors, so you can wire an entire panel with a matched set.
Fourteen gauge is a workhorse size. It handles lighting, gauges, pumps, and most moderate-draw accessories on a 12V system with room to spare. When you route it, leave a small service loop at each end so you've got slack to re-terminate later, and support the run every foot or so with cushioned clamps to keep it from chafing against a sharp edge. Do that, and this wire will outlast most of what you connect it to.
Key Features
- 14 AWG single-conductor primary wire, sized for lighting, gauges, pumps, and most moderate-draw 12V accessory circuits
- Stranded tinned-copper conductor resists salt-air corrosion and keeps a clean, low-resistance connection at every crimp
- Stranded construction stays flexible, so it bends around bulkheads and pulls through tight chases without kinking
- Gray PVC insulation for clean circuit identification and consistent color-coding behind the dash
- Generous 100-foot spool covers a full panel or several separate runs from one roll
- Part of Sea-Dog's matched color range, so you can wire an entire system with coordinated colors
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog 14 AWG Gray Primary Wire, 100 ft |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 8014112 |
| UPC | 035514801485 |
| Wire Gauge | 14 AWG |
| Conductor Material | Tinned Copper |
| Conductor Construction | Stranded |
| Insulation Material | PVC |
| Insulation Color | Gray |
| Spool Length | 100 ft |
| Conductor Count | Single Conductor |
| Wire Type | Primary Wire |
Frequently asked questions
Is this wire tinned or bare copper?
It's tinned copper. Every strand carries a tin coating that slows the corrosion bare copper suffers in salt air, so your connections stay clean and low-resistance over time.
Is the conductor stranded or solid?
Stranded. That's what keeps it flexible enough to route around bulkheads and pull through tight chases without kinking, which is exactly what you want on a boat.
What gauge and length do I get?
It's 14 AWG wire on a 100-foot spool, single conductor, so you have plenty to cover a full panel or several separate runs from one roll.
What circuits is 14-gauge wire good for?
Fourteen gauge is a common size for lighting, gauges, pumps, and most moderate-draw accessories on a 12V system. For higher-current runs, step up to a heavier gauge.
Why is the insulation gray?
The gray PVC jacket is for circuit identification. Color-coding your runs makes troubleshooting far easier later. Sea-Dog offers this same wire in a full range of colors so you can keep a consistent scheme.
Any tips for a clean install?
Leave a small service loop at each end so you can re-terminate later, and support the run about every foot with cushioned clamps to keep it from chafing against sharp edges.
