Sea-Dog 14/2 AWG Flat Duplex Safety Wire, 250 ft Red/Yellow

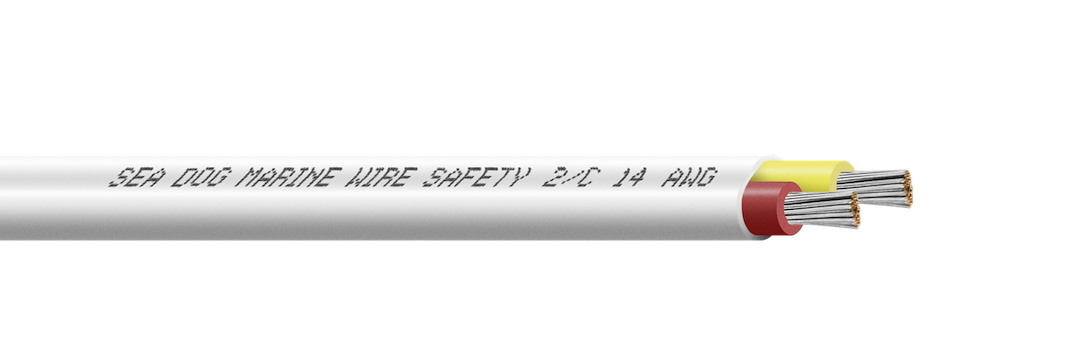

Rewiring a boat means running a lot of wire, and you want the same cable doing the whole job so your color code stays consistent from the panel to the last fixture. That's what this 250 foot spool of Sea-Dog 14/2 flat duplex is for. Two 14 gauge tinned copper conductors, red and yellow, sealed side by side in a flat PVC jacket. It's UL and ABYC rated, so it passes a surveyor's eye and keeps the insurance company happy.

The tinned copper is the part that matters most out here. Bare copper looks fine the day you install it. Then a couple of seasons in a damp bilge and you've got green corrosion creeping up under the insulation, killing your connections one circuit at a time. Tinned strands resist that, which is why every ABYC-compliant boat cable uses them. And because it's stranded rather than solid, it takes the vibration and flex of a moving boat without work-hardening and breaking at the terminals the way solid house wire would. Fourteen gauge handles the mid-size DC loads you run all over a boat. Cabin lighting, nav lights, bilge pumps, fresh water pumps, accessory circuits. If you're feeding a windlass or a big inverter, step up to heavier cable. For everything else, 14/2 is the workhorse.

The flat encasement is a practical touch. A flat cable lies down against a stringer or tucks under a floorboard without adding the height a round jacket does. Run it along a bulkhead and it stays put. We've used this exact style of cable for full DC rewires on 30 to 35 foot sailboats and trawlers, and the flat profile keeps the runs clean and easy to secure with cable clamps.

Red and yellow isn't random either. Red is your positive, and ABYC calls for yellow on the DC negative return instead of black, so nobody confuses it with an AC ground down the line. Having the pair bonded in one jacket means you pull both legs of the circuit at once and your polarity is never in question. That saves real time when you're tracing a run six months later with a headlamp and a multimeter, trying to remember what you did.

About that UL and ABYC rating. It's not marketing. UL-listed boat cable is built to a stranding and insulation standard that stands up to heat, vibration, and the constant flex a boat puts on its wiring. ABYC compliance is what a marine surveyor checks and what a lot of insurance policies quietly require. If you ever sell the boat or file a claim, wiring that meets the standard is one less thing anyone can flag. Cutting that corner with automotive or hardware-store wire is the kind of thing that looks fine until the day it doesn't, usually at the worst possible moment.

A few things worth knowing before you start. Strip flat cable carefully, because standard strippers can nick the fine strands if you're not paying attention. Back off a gauge on the stripper or use a proper marine tool. Every termination should get an adhesive-lined heat shrink connector, not a bare crimp, or the corrosion resistance you paid for stops at the first joint. And if you're wiring in the cold, PVC stiffens below about 40 degrees, so let the spool warm up before you force it around a tight bend and the jacket won't crack.

This is the cable for anyone doing real DC work. A full rewire, a new electrical panel, a batch of accessory circuits, or just a known-good spool kept aboard for repairs. Two hundred fifty feet covers most of a mid-size boat's low-current wiring with plenty left over for pumps and lights down the road. Keep the leftover on the spool, labeled, and the next repair is a ten minute job instead of a parts-store run. It's honest, code-compliant marine wire from a company that's been making deck and electrical hardware for decades. Buy it once, wire it right, and forget about it.
