Sea-Dog 12 AWG Red Tinned Copper Marine Primary Wire, 400 ft Spool

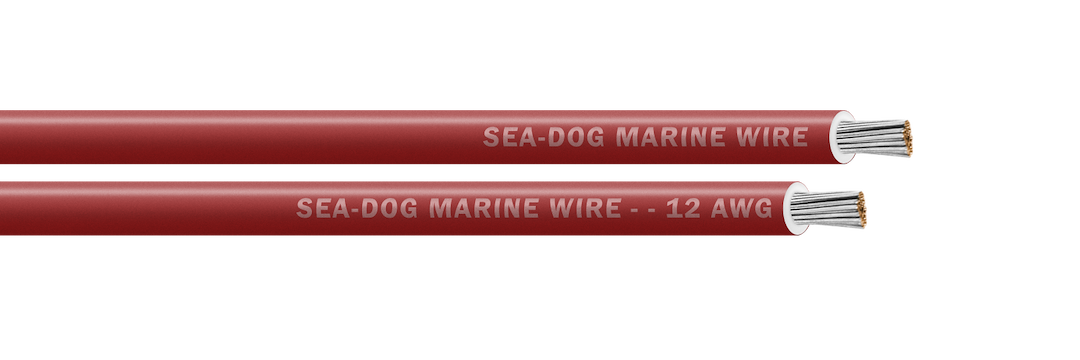

This is the wire you reach for when you want a boat circuit to still work five seasons from now. Sea-Dog's 12 AWG marine primary wire is a single stranded conductor of tinned copper in a red insulation jacket, wound onto a 400 foot spool. It's built for the 12V DC world most of us live in on the water, and it carries both the UL listing and ABYC certification that surveyors and inspectors want to see.

The tinning is the whole point. Every copper strand is coated in tin, so when salt air and bilge moisture find their way in, and they always do, the copper underneath doesn't turn green and brittle the way bare wire does. We've pulled apart enough failed connections over the years to tell you that untinned wire in a marine bilge is a slow-motion problem. This wire is the fix. It's the same reason ABYC wants tinned conductors on boats in the first place.

A 400 foot spool is a serious amount of wire. For a full rewire on a 30 to 40 foot boat you'll have plenty, and honestly you might have some left over. If you only need a short run for one project, this spool is more than you'll use in a weekend. So it's really aimed at the boater who's rewiring a whole system, a shop that does regular installs, or anyone who'd rather buy once and keep a reel on the shelf for the next job.

What do you actually run on 12 AWG? Think cabin and courtesy lighting, electronics feeds, small bilge and washdown pumps, accessory circuits, that kind of thing. It's a great general-purpose gauge for the mid-size DC loads on most boats. What it's not for is the heavy stuff. A windlass, a bow thruster, or a big inverter pulls far more current than 12 AWG should carry, so size those runs up with heavier cable. Always match the gauge to the load and the length of the run using the ABYC ampacity tables. A long run needs a bigger conductor than a short one for the same load.

A few things we've learned installing tinned primary wire. Tinned strands pull through conduit and loom nicely, a little easier than bare copper, but they can fray at a cut if your strippers are dull, so use a sharp, properly sized stripper and don't crush the strands. The tinning also means the cut ends will wick moisture if you leave them open, which can hide corrosion inside an otherwise good-looking run. Seal every termination. A marine-grade adhesive-lined heat-shrink connector, crimped with a ratchet crimper so it passes the ABYC tug test, is the right way to finish an end. Don't trust a hardware-store crimp on a boat.

One more real-world note. Red insulation looks great on day one, but any jacket that lives in direct sun will fade and chalk over time. For runs that sit out on deck or in an open console, drop them into split loom or conduit to protect the jacket and keep the color. And because this wire comes off a spool, it holds a bit of a curve when you first unroll it. Pull off what you need and straighten it out before you route it, and it'll lie in much more cleanly.

The UL and ABYC marks aren't just letters on a spool. They tell an inspector or a surveyor that the wire meets recognized marine standards for stranding, insulation, and temperature rating. That matters if you ever need a survey signed off, and it matters for your own peace of mind. Buy the good wire once, install it right, and you won't be chasing gremlins in the dark two years from now.
