Sea-Dog 12/2 AWG Tinned Copper Duplex Safety Wire, 500 ft Spool

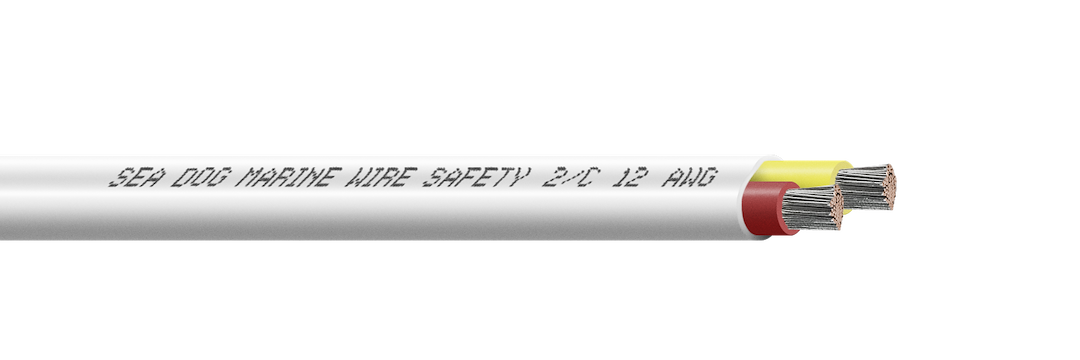

This is the wire you reach for when you're rewiring a boat the right way. Sea-Dog's 12/2 duplex safety cable gives you two 12-gauge stranded conductors, tinned copper, wrapped in a flat PVC jacket, on a full 500-foot spool. It's built for 12V DC circuits on the water, and it carries both UL and ABYC certification. That last part matters more than most people realize, and we'll get to why.

First, the flat encasement. Round two-conductor cable is fine, but the flat profile on this Sea-Dog wire routes cleaner behind liners, under gunwales, and through tight chases where a bulky round cable fights you. On a sailboat especially, where you're feeding wire behind a hull liner with almost no room, that flat shape earns its keep. Just don't crush it. Staples and hard zip-ties can pinch the flat profile and break strands over time. Use cushioned clamps instead and you'll never think about it again.

The conductors are stranded tinned copper, not bare copper, and that's the whole ballgame in a marine environment. Bare copper starts growing green crust the first season it sees bilge moisture or salt air. Tinned copper shrugs it off. Boaters routinely report 8 to 12 years before any corrosion shows up at the strands, which is exactly what you want for wire you're burying behind a panel and don't plan to touch again. It's stranded, not solid, so it flexes with the boat and takes vibration without work-hardening and snapping.

Then there's the red and yellow color pairing. A lot of older DC wiring used red and black, which is easy to confuse with the black you also see on ground and negative runs. Red and yellow is the modern DC convention. Red is positive, yellow is the negative return, and there's no black in the pair to mix up with a ground. That cuts down reverse-polarity mistakes when you're terminating a dozen circuits at a panel at the end of a long day. Still, do yourself a favor and confirm polarity with a multimeter before you power anything up.

Who actually buys a 500-foot spool? Yard pros and anyone doing a full rewire. If you're repowering the DC side of a boat, running new circuits for lights, pumps, electronics, and accessories, 500 feet disappears faster than you'd think once you account for the runs to the bow, the stern, and back to the panel. Weekend warriors doing one or two circuits often end up with a couple hundred feet left over, and that's fine. It's good wire to have on the shelf.

A word on the loads this gauge handles. 12/2 is a common choice for cabin lights, nav lights, small bilge and washdown pumps, and general accessory circuits pulling roughly 10 to 15 amps. Voltage drop stays acceptable on runs under about 25 feet at those loads. If you're pushing a longer run or a heavier draw, step up to a larger gauge. ABYC publishes voltage-drop tables for exactly this, and we're happy to help you size a run if you're not sure.

Now, the UL and ABYC certification. This isn't just a checkbox. When a surveyor comes aboard for an insurance renewal or a pre-purchase haul-out, non-certified wire gets flagged. Certified marine cable passes without a second look. If you're doing a serious rewire, using UL and ABYC rated cable throughout keeps your boat surveyable and your insurance clean. It's cheap peace of mind on a job you only want to do once.

To make the install last, terminate it right. Adhesive-lined heat-shrink connectors at every joint, and a wrap of self-amalgamating tape where a connection sits anywhere near spray or the bilge. That stops water from wicking up inside the strands, which is the slow killer of even good tinned wire. Do the terminations well and this cable will outlast most of the gear you're wiring to it.
