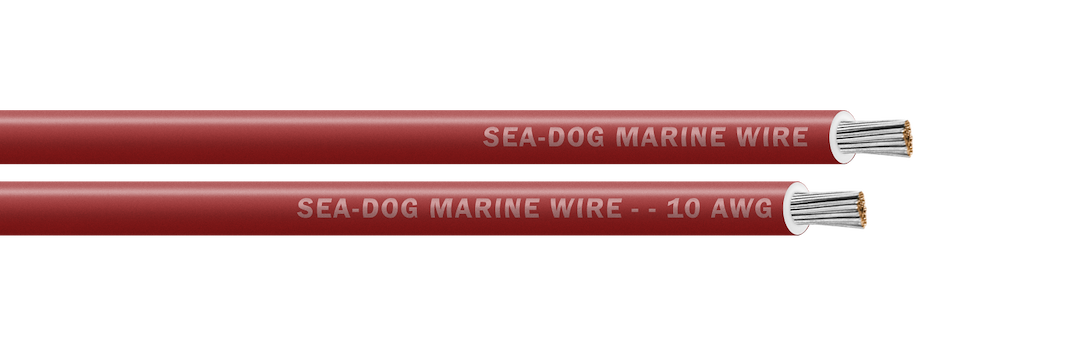

Sea-Dog 10 AWG Red Tinned Copper Primary Wire, 500ft Spool

The Sea-Dog 8010027 is a 500-foot spool of 10-gauge red primary wire, built from stranded tinned copper and rated to UL 1426 and ABYC standards. If you're wiring a boat and you want a run of positive feed that'll still be flexible and corrosion-free years from now, this is the stuff. It's marine-grade primary wire, not the bare-copper automotive wire you'd grab at an auto parts counter, and out on the water that difference matters more than most people realize.

Here's the deal with tinned copper. Every strand gets a thin coating of tin before the wire is bundled and jacketed. That coating is what keeps salt air and bilge moisture from creeping down the conductor and turning it green. Bare copper corrodes from the inside out. It stiffens, it cracks, and the resistance climbs until your electronics start browning out or your connections heat up. Tinned copper stays soft and conductive for the long haul. Boaters who've pulled apart a ten-year-old harness know exactly what we mean. The tinned runs look almost new. The bare stuff crumbles.

Ten gauge is a workhorse size. It's the wire you reach for on mid-size DC circuits, feeds in roughly the 20 to 30 amp range on a 25 to 35 foot powerboat. Think bilge pump circuits, livewell pumps, accessory panels, cabin lighting feeds, and windlass control runs. The red jacket marks it as DC positive, which keeps your wiring legible when you or the next owner opens up a panel two years down the road. Pair it with a matching 10-gauge negative and your runs stay color-correct to ABYC convention.

Why a 500-foot spool? Because if you're doing a full rewire, a new build, or you run a shop, buying wire by the short length gets expensive fast and you always come up short on the run you care about. A 500-foot spool means you cut what you need, when you need it, and you're not splicing in the middle of a bulkhead because you ran out. It's the smart buy for a rigging shop or a serious DIY owner who knows they'll be back in the boat's wiring more than once. Fair warning though. A full 500-foot spool is heavy and bulky. On a smaller sailboat with tight access, a lot of folks measure and cut their sections on the dock first, then carry the pieces aboard.

A few install notes from people who do this for a living. Use adhesive-lined heat shrink connectors, not plain crimps, anywhere the wire lives in a bilge or an engine space. Vibration and moisture kill standard crimps. The adhesive-lined shrink seals the joint and holds it. When you're pulling wire off the spool, let the spool rotate on an axle or run it through a feeder so it doesn't kink. Fast-pulling straight off a static spool is the number one way people put a permanent kink in an otherwise perfect run. And if any of this wire runs exposed on deck or in a sunny locker, drop it inside 3/8-inch split loom or conduit. The red jacket is tough, but UV will fade it over the years, and the loom adds abrasion protection where the wire crosses a hard edge.

The UL and ABYC marking isn't just a sticker. Marine surveyors and insurance companies look for it. When you rewire with certified marine-grade wire, you're building an installation that passes survey and doesn't raise questions at renewal time. It exceeds UL 1426 for boat cable and meets ABYC E-11 recommendations for stranded tinned conductors, which is the standard any competent marine electrician works to.

Who's this not for? If you just need a couple feet to fix one connection, a 500-foot spool is overkill and you should grab a short length instead. But if you're rewiring, building, or stocking a shop, this is exactly the spool you want on the shelf. Buy it once, and cut from it for years.
