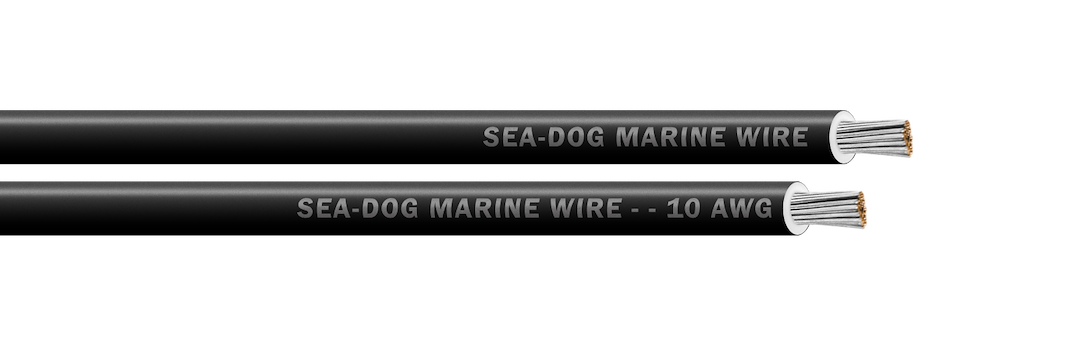

Sea-Dog 10 AWG Black Tinned Copper Marine Primary Wire, 500' Spool
Sea-Dog 10 AWG Black Tinned Copper Marine Primary Wire, 500' Spool — Product description
This is Sea-Dog's 10 gauge black marine primary wire on a full 500 foot spool. Stranded tinned copper under a black jacket, UL and ABYC certified. It's the bulk wire you reach for when you're rigging a boat from scratch or restocking the shop reel.
When you're wiring a boat, the wire itself is the part nobody sees and everybody depends on. This Sea-Dog 10 gauge primary wire is built for that job. You get 500 feet of stranded tinned copper on a single spool, jacketed in black, and rated to both UL and ABYC standards. It's the kind of bulk wire that lets you rig an entire boat without stopping to reorder halfway through a run.
The tinned copper is the whole point. On a boat, bare copper starts to corrode the moment salt air finds it, and once a conductor greens up under the insulation you lose current-carrying capacity right where you can't see it. Every strand here is coated in tin, so it shrugs off the damp bilge and the salt spray that eats untinned automotive wire alive. We've pulled apart plenty of old boats where the tinned runs still looked new and the untinned stuff crumbled at the terminals. That difference is exactly what you're paying for.
Ten gauge is the size you reach for on moderate DC loads. Think bilge pumps, windlass feeds, accessory panels, nav and electronics runs, blowers, and short battery-to-switch jumpers. It handles real current without being so heavy that it's a fight to route. That said, always size for the run, not just the load. A short 30 amp bilge or windlass circuit is right at home on 10 gauge, but stretch that same load over a long round trip and voltage drop will sneak up on you. Measure the distance, check it against a voltage drop chart, and step up a gauge if the numbers say so. It's five minutes of math that saves you a dim pump or a nuisance breaker trip later.
Because the conductor is stranded, it routes the way boat wire needs to. It bends around bulkheads, tucks behind panels, and takes the vibration of a running hull without work-hardening the way solid wire does. Fresh off a full spool it can carry a little memory and feel stiff near tight bends, especially by a battery switch. Warm it slightly in your hands or let it relax in the sun for a few minutes and it'll lay in clean.
The 500 foot length is meant for real work. It's enough to wire a whole boat's worth of 10 gauge circuits, or to sit on the shelf at a rigging shop and get pulled from all season. Cut what you need, label as you go, and keep the remainder on the reel so it doesn't kink or bird-nest in a locker. The black jacket is the standard choice for DC negatives and grounds, and it disappears nicely into an engine room, though anything running in direct sun should get split loom or a covered chase since black takes UV harder than lighter jackets.
On the certification side, this wire meets UL and carries ABYC compliance, which matters if you ever put the boat in front of an insurance surveyor. Keep the printed legend on the jacket legible after you cut, and it speaks for itself. One install note from experience: tinned wire earns its keep at the ends too. Use adhesive-lined heat shrink over every crimp and stick with tinned lugs and terminals so you're not building a corrosion cell by mixing tinned wire with cheap untinned connectors.
Who's this for? Anyone doing a proper marine job. Boatbuilders, riggers, and owners who'd rather do it once and do it right. It's not the wire for a quick two-foot patch where a short pre-cut length would do, but for a full rewire or a stocked bench, a 500 foot spool of tinned 10 gauge is exactly what belongs in the boat.
Key Features
- 10 AWG (10 gauge) stranded conductor sized for moderate DC loads like bilge pumps, windlass feeds, blowers, and accessory panels
- Tinned copper strands resist the corrosion that eats bare untinned wire in salt air and damp bilges
- Full 500 foot spool so you can rig a whole boat or restock the shop reel without reordering mid-run
- Black jacket, the standard color for DC negatives and grounds, blends cleanly into engine rooms
- Stranded construction bends around bulkheads and takes hull vibration without work-hardening
- UL certified and ABYC compliant, so it holds up to an insurance surveyor's inspection
- Printed legend on the jacket stays legible after cutting for easy identification and survey verification
- Cut-to-length off the spool, leaving the remainder on the reel to avoid kinks and bird-nesting
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Stranded Conductor; 10 Gauge; Black; 500 Foot Spool; Tinned Copper Conductor; UL/ ABYC Certified |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 8010017 |
| UPC | 035514802789 |
| Wire Gauge | 10 AWG (10 Gauge) |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Color | Black |
| Length | 500 Feet |
| Packaging | Spool |
| Certification | UL, ABYC |
| Application | Marine Primary Wire |
| Wire Type | Primary Wire |
Frequently asked questions
How many amps can 10 gauge marine wire handle?
It depends on the length of the run and where it's routed, not just the load. As a working guide, 10 gauge tinned wire is comfortable on a short 30 amp circuit like a bilge pump or windlass feed under about 15 feet. Longer than that, check the load against a voltage drop chart and step up a gauge if the numbers call for it.
Is this wire solid or stranded?
Stranded. That's what you want on a boat. Stranded conductor flexes around bulkheads and absorbs hull vibration without work-hardening and cracking the way solid wire would.
Why tinned copper instead of plain copper wire?
Every strand is coated in tin so it resists corrosion in salt air and the bilge. Bare copper corrodes under the insulation where you can't see it, and that quietly kills current-carrying capacity. Tinned wire holds up for the life of the boat.
What circuits is 10 gauge good for?
Moderate DC loads. Bilge pumps, windlass feeds, blowers, accessory and nav panels, electronics runs, and short battery-to-switch jumpers all live comfortably on 10 gauge as long as you size for the length of the run.
Can I cut it to the lengths I need?
Yes. It's sold as a 500 foot bulk spool so you cut exactly what each run needs and keep the rest on the reel. Leaving it on the spool keeps the remainder from kinking or bird-nesting in a locker.
Is it UL and ABYC certified?
Yes, it's UL certified and ABYC compliant. That matters if you ever put the boat in front of an insurance surveyor. Just keep the printed legend on the jacket legible after you cut so it can be verified.
Why does the wire feel stiff coming off the spool?
That's spool memory, and it's normal on a full 500 foot reel. It shows up most near tight bends like a battery switch. Warm the wire slightly in your hands or let it relax in the sun for a few minutes and it'll lay in clean.
Can I use the black wire for the negative side?
Black is the standard color for DC negatives and grounds, so yes. Just keep your color coding consistent across the whole boat so the next person who opens the panel can follow it.
Do I need special terminals with tinned wire?
Use tinned lugs and terminals and finish every crimp with adhesive-lined heat shrink. Mixing tinned wire with cheap untinned connectors builds a corrosion cell at the very spot you're trying to protect.
Does this come in other colors or gauges?
Sea-Dog runs this primary wire in a range of colors and gauges. This listing is the 10 gauge black on a 500 foot spool. If you need a different color for your positive runs or a heavier gauge for high-current feeds, reach out and we'll point you to the right spool.
