Sea-Dog 10/2 AWG Duplex Safety Wire, Red/Yellow, 250ft Spool

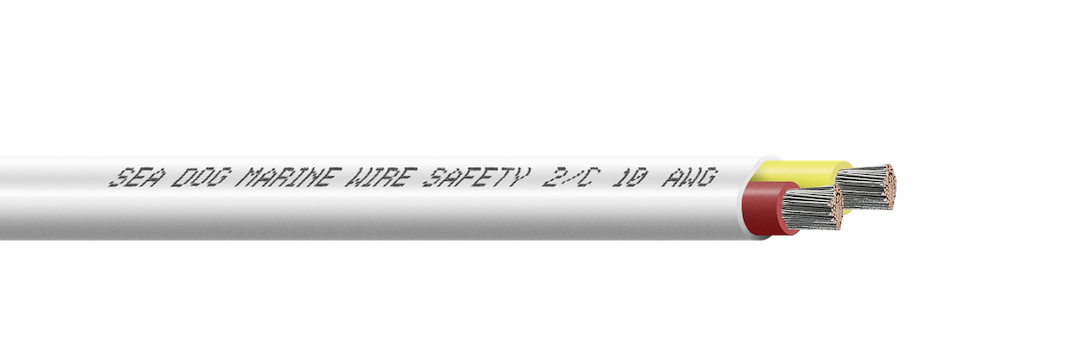

The Sea-Dog 10/2 AWG duplex safety wire gives you two 10-gauge stranded conductors, one red and one yellow, molded side by side in a flat PVC encasement and wound onto a 250-foot spool. It's the kind of wire you reach for when you're running a real DC circuit on a boat and you want it done once, done right, and never think about it again. Marine wire lives a hard life. Bilge water, salt air, vibration, heat coming off the engine. This cable is built for exactly that.

The heart of it is tinned copper. Every strand is coated in tin before it's bundled, and that tin coating is what keeps corrosion from creeping up the conductor when moisture finds its way in. And on a boat, moisture always finds its way in. We've pulled apart untinned automotive wire on older boats that turned green and brittle a few inches back from the connector. Tinned copper doesn't do that. Boaters routinely report five years and more of service life when this stuff is loomed and connected properly, which is why tinned conductors are the standard the marine world settled on.

Ten gauge is a workhorse size. It comfortably carries the loads on 30-amp circuits, which puts a lot of common jobs squarely in its wheelhouse. Windlass feeds, bow thruster runs, accessory panels, hardtop and spreader lighting on bigger boats, high-draw pumps. The one thing to keep in mind is voltage drop. On runs past about 20 feet, a 12-volt circuit starts to lose meaningful voltage, so size your run for the distance, not just the amperage. If you're feeding a windlass or thruster way up in the bow of a 30-plus-footer, plan the gauge around the full round-trip length. For very high amp loads some folks parallel a second run, but for most 30-amp jobs a single 10/2 run does the work.

The flat duplex format is what makes this a safety cable. Two conductors, red and yellow, share one jacket so your positive and negative always travel together and stay organized behind the panel. The red-and-yellow color code is the marine convention for DC safety wiring, which keeps the next person who opens up your electrical bay from guessing. Flat cable also lies down nicely against a stringer or bulkhead and pulls through tight chases more predictably than a round bundle.

A word on the spool. Two hundred and fifty feet of 10-gauge duplex is heavy and it's stiff. If you're running a long hull length on your own, set the spool on a reel stand or grab a second set of hands, because a spool that's fighting you is how you end up with kinks. Kinks in the conductor are permanent, and they're exactly what you don't want buried behind a headliner. Pull it slow, keep tension even, and let the spool feed rather than yanking off coils.

Here's what this wire is not for: AC shore power. It's a DC safety cable, full stop. Mixing it into a shore-power circuit is a code problem and a real safety issue, so keep your AC and DC wiring separate and correctly rated. On the DC side, protect the run the way it deserves. Pair it with properly sized thermal breakers, use adhesive-lined heat shrink connectors at every termination rather than crimp-only lugs, and give the cable chafe protection anywhere it passes near steering gear, engine beds, or a bulkhead pass-through. If any of the run sees sun on an open deck, get it inside split loom or conduit, because UV will chew on the outer jacket over a couple of seasons.

This is genuine marine-grade cable, UL and ABYC certified, so it meets the standards a surveyor and an insurance company want to see. Buy the 250-foot spool once and you've got enough on hand for a full rewire plus spares for the next project. It's honest wire that does its job quietly for years, and that's exactly what you want out of the stuff hiding behind your panel.
