Sea-Dog 10/2 AWG Duplex Marine Wire, 100 ft, Red/Yellow Tinned Copper

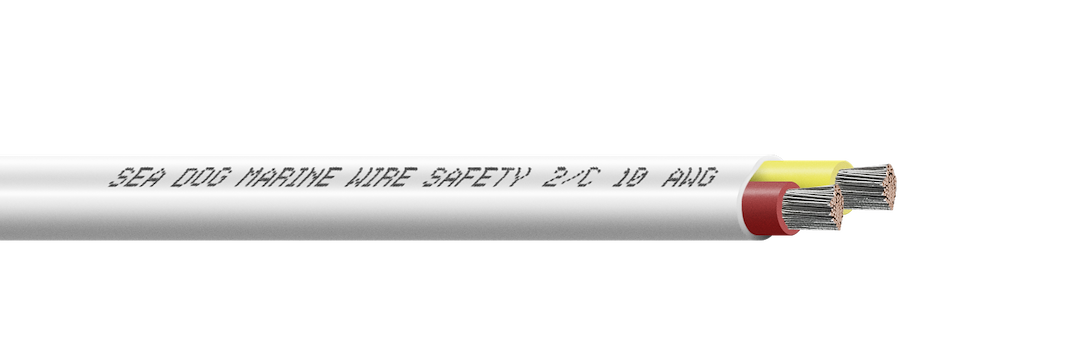

Sea-Dog's 10/2 AWG duplex is the wire you reach for when you've got a two-wire DC circuit that needs to last. Two 10-gauge tinned copper conductors, one red and one yellow, run side by side inside a flat PVC jacket. It's built for the boat, not the garage, and you'll feel the difference the first time you pull a run through a cramped chase.

Here's what tinned copper buys you. Every strand is coated in tin, so salt air and bilge moisture can't eat the copper the way they do with bare automotive wire. We've opened up harnesses on boats that are ten years old and found the tinned runs still bright while the untinned stuff next to them had gone green and brittle. On the water, that's the whole ballgame. Corroded conductors mean voltage drop, warm connections, and gear that acts flaky for no obvious reason.

The conductors are finely stranded, not solid, and that's deliberate. A boat is always working, flexing and vibrating underway, so stranded wire moves with it instead of fatiguing and cracking the way solid wire eventually does. It also makes the wire far easier to route around corners and terminate cleanly. Solid wire has its place in a house, but a boat is a moving, pounding thing, and finely stranded conductors are the only sensible choice out there.

A word on why any of this is worth paying for. Marine-grade wire costs more than the spool of automotive wire at the hardware store, and every season we watch boaters learn the hard way why. Cheap wire corrodes from the outside in, connections warm up, and one day the bilge pump you counted on just doesn't kick on. Good wire is cheap insurance against a bad day. Do it once, do it with tinned copper, and forget about it.

The red and yellow coding follows the ABYC convention for DC systems, red for positive and yellow for the negative return. That matters more than it sounds. Two years from now, when you're troubleshooting a dead accessory at the dock, you'll know exactly which conductor is which without chasing it end to end. It's the kind of thing that turns a two-hour job into a ten-minute one.

The flat encasement is a genuinely nice touch for tight installs. It slides through narrow wire chases and lies flat under a cabin sole or behind a console where round cable wants to bunch and bind. One heads-up from the field: if you're stacking two flat runs through the same chase, a little pull lube saves a lot of cursing. And go easy on the zip ties. Cinching a flat conductor too hard creates a hot spot right where you don't want one.

Where does 10/2 fit? Think general DC feeds and accessory circuits in the 30-amp neighborhood. Cabin and cockpit lighting, bilge pumps, electronics power runs, livewell pumps, that sort of thing. What it isn't is a heavy battery or windlass cable. Ten gauge starts giving up too much voltage past about 25 feet at higher amperage, so for a long windlass or inverter feed you'll want to step up to a heavier gauge. If you're not sure, measure your run and your load first, or give us a call and we'll help you size it.

The 100-foot spool is enough to rewire a small boat or knock out several accessory circuits from one roll. Cut to length before you pull so you're not fighting excess. And do yourself a favor at the ends: use adhesive-lined heat-shrink terminals, not the bare automotive crimps from the parts store. Sealed connections are what keep water out of the strands and keep this wire performing season after season. It's UL 1426 and ABYC territory, so it'll satisfy a surveyor on a new build too.
