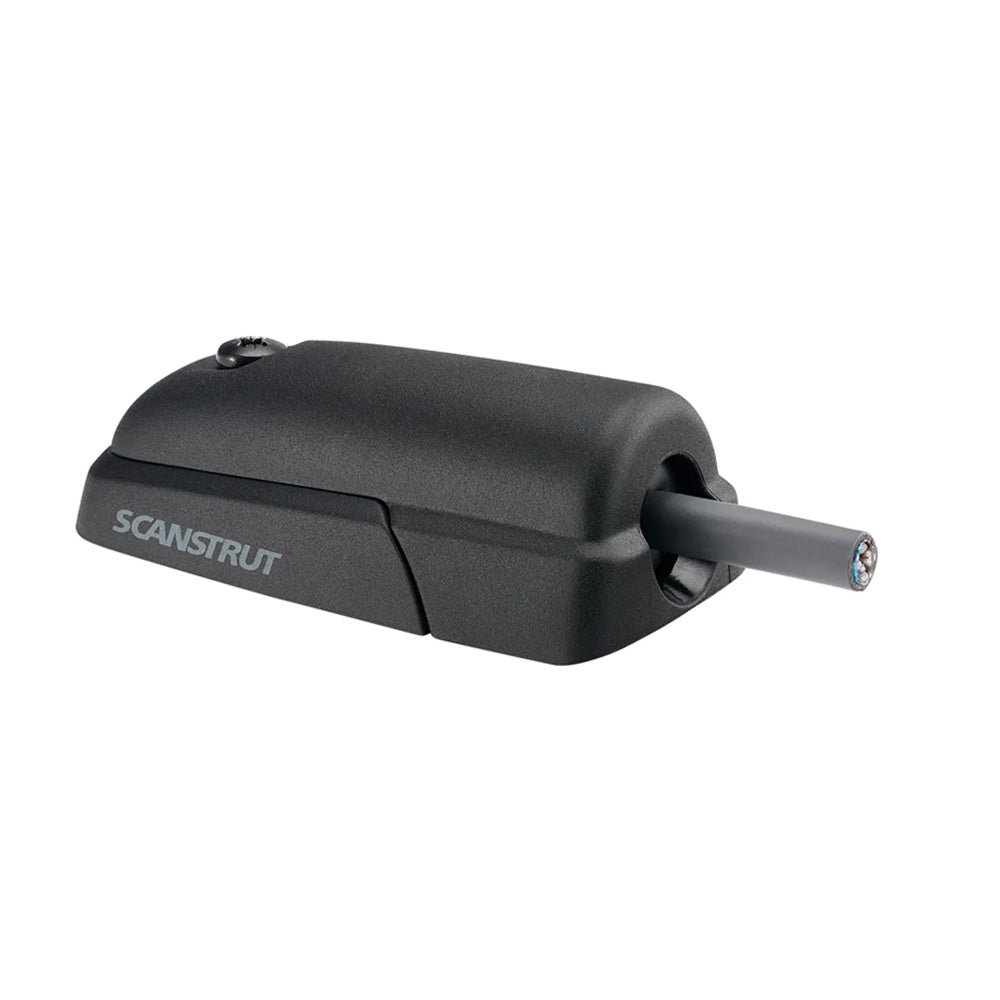

Scanstrut DS-HSL-01-BLK Horizontal Cable Seal, Black

The Scanstrut DS-HSL-01-BLK Horizontal Cable Seal is one of those small parts that makes a big difference in how a finished install looks and how long it stays dry. It's a black, low-profile seal that lets you route a cable through a deck, cabin top, hardtop, or radar arch while keeping water, dust, and spray out of the hole you just drilled. Scanstrut built this one with rooftop and above-deck runs in mind, and it's a natural fit for Starlink, NMEA, and RJ45 cables. It's based on Scanstrut's most popular horizontal seal design, so it's a proven shape that installers already trust.

Here's the part boaters love. The supplied split, pre-drilled bungs let you pass a cable that already has its connector attached, up to 0.62 inches across, straight through the seal. You don't have to cut the plug off and re-terminate it on the other side. Anyone who's ever snipped a factory RJ45 or a Starlink connector just to fish it through a hole knows why that matters. Feed the whole cable through, seat it in the right bung, and you're done.

It handles cables from 0.07 to 0.31 inches in diameter, which covers most of what you'd run above deck, from thin coax up to heavier data leads. Multiple bung sizes and a self-drill option let you dial in the fit for your exact cable, so the seal grips snugly without crushing the jacket. That snug fit is what keeps the IP68 rating honest once everything's buttoned up. If your cable falls between the pre-drilled bung sizes, the self-drill bung lets you make your own opening to match.

The horizontal cable entry is the other smart bit. Instead of the cable standing straight up out of the deck, it exits close to the mounting surface and turns along it. That keeps the profile low, makes the run look intentional, and gives the cable a gentler path with less to snag a line or a foot. On a flybridge or hardtop where everything's on display, that clean exit reads as a professional job. It also means the finished seal sits flat and out of the way, which helps on a coachroof where you're stepping around gear.

Build quality is what you'd expect from Scanstrut. The body is impact-resistant plastic that shrugs off the knocks deck gear takes, and it ships with 316 stainless steel fixings that stand up to salt air. A waterproof 3M gasket seals the base against the mounting surface, and the whole assembly carries an IP68 waterproof rating, so it's rated against dust and sustained water immersion. It's SCA certified too.

A few install notes from the crew. Drill a clean, correctly sized hole. An oversized hole is the most common reason a seal like this weeps, because the base gasket can only do so much. On a cored deck, use a backing plate so the fixings have something solid to bite and don't pull at the gelcoat. Center the cable in its bung before you tighten everything down, especially on a sailboat that heels, so you don't leave a low spot where water can slowly track in. And on a flexing aluminum surface, a bead of marine-grade sealant under the base is cheap insurance on top of the gasket. If you're mounting into an aluminum toerail or arch, isolate the stainless fixings so they don't set up a corrosion cell in salt air.

One thing to keep in mind. This is a single-cable seal, so plan on one unit per cable run. If you've got a Starlink lead, a radar cable, and an antenna feed all coming through the same area, you'll want a seal for each. That's the trade for the tight, watertight grip on each individual cable. For a clean, dry, good-looking pass-through on a single cable, this Scanstrut seal is exactly the right tool.
