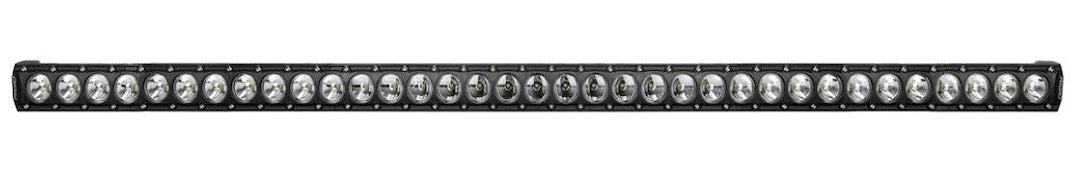

Rigid Industries Revolve 50 Inch LED Light Bar, White Backlight

The Rigid Industries Revolve is a 50 inch LED light bar built for people who actually use their lights, not just mount them for looks. It puts 25,410 raw lumens on the trail, the field, or the job site, and it pulls a mixed spot and flood beam pattern so you get long reach and wide spread at the same time. Spot for seeing what's a quarter mile out. Flood for lighting up everything right in front of the rig. One bar, both jobs.

What sets the Revolve apart from a plain light bar is the backlit trim ring. This one's white, and it wraps the full 50 inch length. Flip it on and you've got a soft area light for setting up camp, working under the hood, or loading gear after dark without the blinding punch of the main beam. It runs on its own circuit, so you can leave the trail lights off and still have light where you're standing. A lot of folks wire it to a separate switch for exactly that reason.

Power draw is 217 watts, which works out to about 17 amps at 12 volts. That's real current, so wire it right. Run 8 to 10 gauge wire on longer pulls, fuse it close to the battery, and use a relay so your switch isn't carrying the full load. The bar itself is happy anywhere from 9 to 36 volts, so it drops onto a 12 volt truck or a 24 volt rig without any changes. On a long run to the front of a big truck or trailer you'll want to watch for voltage drop, which is the usual reason a bar looks dimmer than it should.

The housing is black aluminum with a textured powder coat, and it sheds heat well so the LEDs stay in their happy range. Rigid builds these with an anti-shock woven nylon bevel around the edge, so the bar takes washboard roads and rock crawling without rattling itself apart. The lens is clear, and the whole assembly is sealed against dust and water. It ships with mounting brackets and hardware for a straight bolt-on install. Most people run it across a roof rack, a chase rack, a bumper, or an overland bar. At 50 inches it's a full-width bar, so measure your mounting surface before you order, and give yourself room for the brackets on each end.

Who's this for? Overlanders who need to see the whole trail at speed. Work trucks and utility rigs that run before sunup. UTV and side by side owners building out a serious light setup. Anyone who wants one bar that does distance and spread and throws in a work light on top. It's a premium piece, priced like one, and it's built to hold up to vibration, weather, and years of hard use.

The Revolve name comes from the design. The optics and trim ring are engineered as a single clean face, so instead of a busy row of separate reflectors you get one continuous lit bar. The white backlight glows the full length when the trim ring is powered, which reads as a bright, even line rather than a string of dots. It looks good parked and it works hard when you flip the mains on.

Install is straightforward if you've wired accessories before. Mount the bar with the included brackets, run your power lead back to the battery through a fuse, add a relay and a switch, and ground it to clean bare metal. If you're not comfortable pulling 17 amps of new wiring, have a shop do it. Done right, this bar will outlast the vehicle you put it on.

A couple of honest notes. This is a big, bright bar meant for off-road and off-highway use. Check your local laws before running it on the street, because most areas require the main beam covered or off on public roads. And that 25,410 number is raw lumens straight off the diodes, which is the industry-standard way these get rated. Real effective output on the ground is always lower once you account for optics and housing, same as every bar on the market. It's still a seriously bright light.
