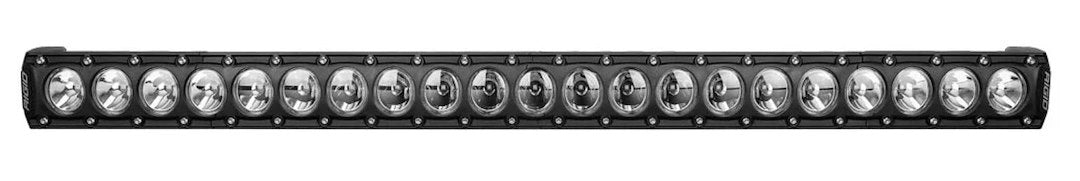

Rigid Industries REVOLVE 30 Inch LED Light Bar, Spot and Flood Combo

Rigid Industries built the REVOLVE line for boaters who want serious output and a clean look when the bar's switched off. This is the 30 inch REVOLVE, a spot and flood combo bar that throws 15,246 raw lumens off a 126 watt array, with a white backlight built right into the housing. On a boat that backlight matters more than you'd think. Run it low at the dock or as accent lighting on a T-top, then hit the main beam when you actually need to see the water.

Where does a 30 inch bar like this go? T-tops and hardtops are the obvious spots. So are radar arches, wake towers, and the front rail of a center console for close-in docking and picking out crab pots or channel markers on a dark run home. The spot and flood combo is the reason we like this one for boat work. The spot portion reaches out down the channel, and the flood fills in the water right off your bow, so you're not staring into a tunnel of light with black on either side.

The electrical side is straightforward but worth planning. It draws 9.4 amps at 12 volts and runs happily on anything from 9 to 36 volts, so it's fine on both 12V and 24V boats. Because of that draw, put it on its own circuit with a dedicated fuse and don't skimp on wire gauge over a long run from the console. Voltage drop is the enemy of a bright, consistent beam. The white backlight is a separate feed, and a lot of owners tie it into their nav or accent lighting so it comes on with the running lights.

Build quality is what you'd expect from Rigid. The housing is black aluminum with a clear lens, built to shrug off weather and spray. One note from the saltwater crowd: use stainless hardware at the mounting feet, and if you're bolting to a T-top or tower, add a set of rubber isolators. That keeps vibration from working the brackets loose over a season of pounding chop. The bar ships with mounting brackets and hardware, so you've got what you need to get it up there, but stainless fasteners are cheap insurance on a boat that lives in salt.

On switching, run the main beam through a properly sized rocker switch and a relay rated for the load, not a light-duty dash toggle that'll cook under nine-plus amps. If your helm has a spare accessory circuit with real capacity, great. Otherwise add a relay off the battery with an inline fuse close to the source. For aiming, tilt the bolt-on brackets so the hot center of the beam sits just below your sightline at cruising speed. Aimed too high, it lights up haze and kills your night vision. Aimed a touch low, it puts light on the surface where you're actually looking.

The clear lens keeps the beam crisp instead of scattering it, which is what you want when you're trying to pick out a marker at distance. Combined with the spot and flood optics, you get reach and spread from one bar instead of running two separate lights.

So who's this for? Offshore crews running back after dark, bay boat owners who launch before sunrise, and anyone with a tower who wants both a working light and a backlit accent piece that looks good tied up at the marina. It's a premium bar at a premium price, and the REVOLVE white backlight is the thing you're paying extra for over a plain light bar. If you only care about raw output, Rigid makes simpler bars in this same length. But if you want that dual-purpose look, this is the one to rig up.

A couple of honest expectations. That 15,246 figure is raw lumens measured at the LED, not what lands on the water a hundred feet out, so treat it as a strong close-to-mid range light rather than a searchlight. And mount it where the beam clears your hardtop and windshield, so you're not lighting your own gelcoat and washing out your night vision. Get the placement right and it earns its keep on every night run.
