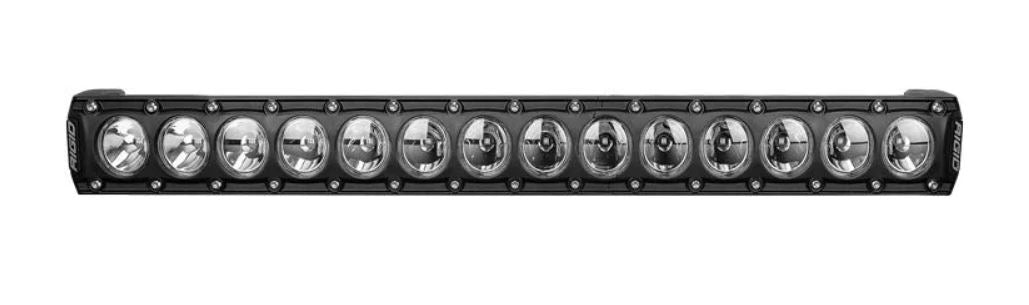

Rigid Industries Revolve 20 Inch LED Light Bar, White Backlight

The Rigid Industries Revolve 20 Inch is an auxiliary LED light bar built for people who actually run after dark. You get 10,164 raw lumens out of an 84 watt bar in a 20 inch length, and it draws just 6.3 amps at 12 volts. That's a lot of usable light for very little current, which is exactly what you want when you're adding a bar to a boat tower, a T-top, or the roof of a truck that already carries a full electrical load.

What sets the Revolve apart from a plain work light is the backlight. This one carries a white backlight trim ring that runs around the face of the bar, and it isn't just for looks. Rigid built the ring to double as area and work lighting, so you can light up the cockpit, the swim platform, or a campsite without firing the main beam and blinding everyone around you. Flip the main bar on when you need real throw, and leave the backlight running for close-in work.

The beam itself is Rigid's Broad-Spot optic. It blends a spot and a flood pattern into one, so you get distance and spread at the same time. A pure spot throws far but tunnels your vision. A pure flood lights up close but dies out past the bow. Broad-Spot splits the difference. For idling out a channel and then opening up across open water, that combination just works. Same story off the pavement, where you're reading the trail in front of the tires and the bend a hundred yards out at once.

Construction is what you'd expect from Rigid. The housing is black aluminum, the lens is a clear hardcoated piece, and the bezel is an impact-resistant nylon that shrugs off spray, stones, and UV. The whole bar wears a textured powder-coat finish. It weighs 6.2 pounds, so it's substantial without being a load on a tower or a roof rack. Mounting brackets and all the hardware come in the box, so you're not hunting for a bracket kit before you can hang it.

On a boat, the 20 inch length suits center console T-tops and hardtops nicely, and it'll spread plenty of light across the foredeck for docking and anchor work. On a truck or a side-by-side, it drops onto a roof line or a bumper the same way. This is genuinely a dual-duty bar, and that's the point. One light, wired once, that earns its place whether you're on the water or on the dirt.

Wiring is straightforward. At 6.3 amps the bar sips current, so a 10 amp fused circuit covers it with room to spare. We'd still run it through a relay off a switched source and use marine-grade connectors on anything that lives in salt air. Give the backlight its own switch if you want to run area light and main beam independently. That's the setup most people end up wishing they'd done from the start, so do it on day one.

Rigid offers this Revolve bar with an amber backlight too, but the white ring is the more versatile pick for most rigs. White reads as clean work light and blends with the main beam, so the cockpit or the trail looks natural instead of tinted. Amber has its place in fog and dust, but if you're buying one bar to do everything, white is the easy call.

So who's this for? Anyone adding serious auxiliary light without a serious current penalty. Weekend anglers running home after sunset, offshore crews working the deck at anchor, overlanders setting up camp, and trucks that need a real work light up top. The Broad-Spot beam and the dual-mode backlight cover more situations than a single-purpose bar ever could.

Bottom line, the Revolve 20 Inch does two jobs at once, main lighting and accent or work lighting, in a package that's built to last. If you want one clean install that handles night runs and dock chores both, this is a smart pick.
