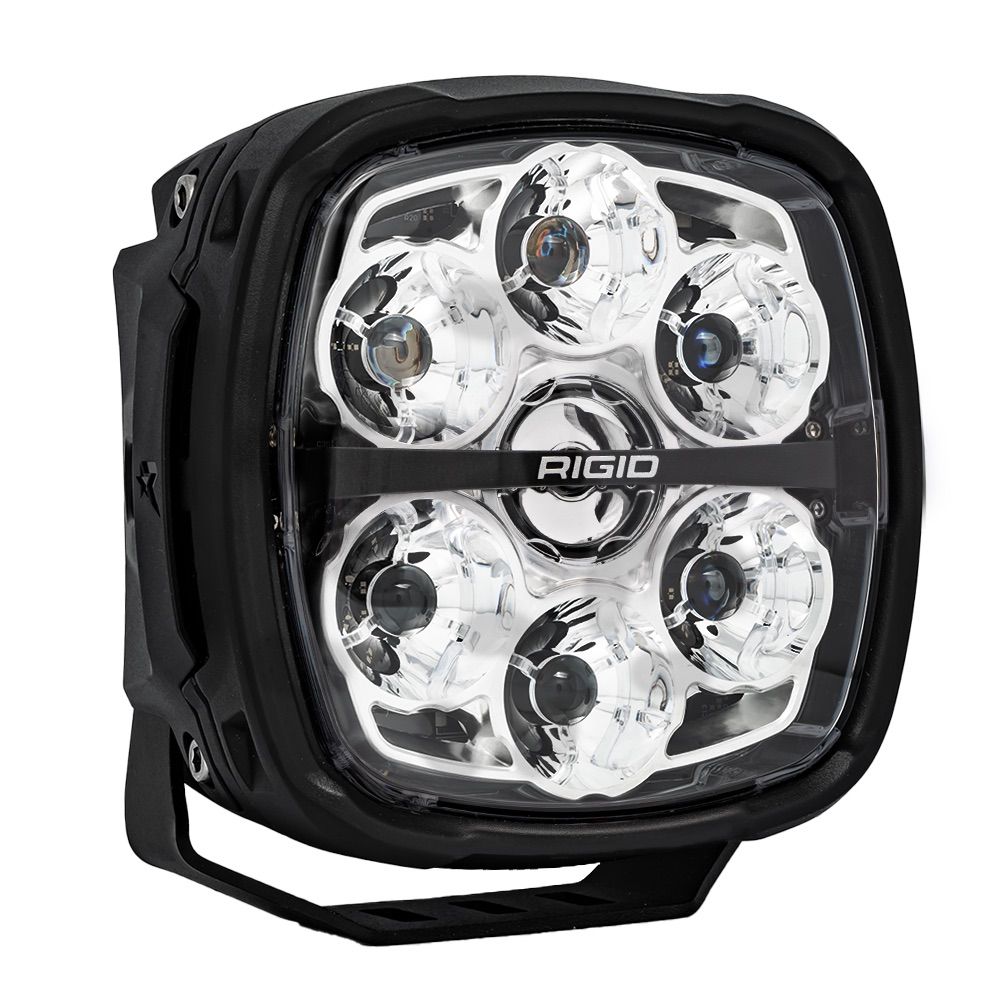

RIGID Industries Phoenix XL Pod 7-Inch Spot LED Light — Product description

The RIGID Industries Phoenix XL Pod is a 7-inch LED light that throws 14,213 raw lumens down the trail. It ships with the spot lens for a tight, long-range beam, adds five selectable color modes for dust, fog, and snow, and takes interchangeable lenses so you can retune the beam anytime. Built for trucks, UTVs, and overland rigs.

The RIGID Industries Phoenix XL Pod is a 7-inch LED light that puts real distance in front of your rig. It's rated at 14,213 raw lumens and draws 191 watts, which is a serious amount of light out of a single pod. This one ships with the spot lens, so the beam runs tight and long, exactly what you want when you're pushing down a dark trail or a wide-open two-track at speed.

Let's talk about that lumen number for a second. 14,213 raw lumens out of a 7-inch housing is genuinely bright, bright enough that you'll want to be thoughtful about where and when you use it. On the road it's an auxiliary light, aimed and wired to the rules for your area. Off the pavement it turns a black night into something you can actually drive fast in. The spot lens concentrates all of that output into a tight column, so the reach is long even though the pod itself stays compact.

What really sets the Phoenix XL apart is the selectable color output. Five modes, Cool White, Natural, Full Power, Warm, and Amber, and you switch between them at the touch of a button. Cool white gives you maximum reach on a clear night. Warm and amber cut through dust, fog, and falling snow, where a bright white beam just bounces back at you and washes out the trail. It's the same light, tuned for whatever the conditions throw at you.

The lens system is the other reason people run these. Three lenses, Spot, Drive, and Combo, all interchangeable. This pod comes with the Spot lens installed, a narrow 10-degree beam built for long-distance visibility. Want a wider spread for tight, technical trails or a blend of near and far? Swap in the Drive or Combo lens down the road. You're not locked into one beam pattern for the life of the light, and that flexibility is rare at any price.

Construction is straightforward and built to survive. The housing is black cast aluminum, which sheds heat and takes abuse without flinching. Because it's cast aluminum, the whole body acts as a heat sink. That's how RIGID runs this much LED in a sealed pod without cooking the diodes. It'll hold full power for as long as you need it, with no thermal throttling on a long night stage. Just give it some airflow and don't bury it behind a bumper cover, and it'll do its job.

Behind the clear lens, the electronics run on a wide 9 to 36 volt range, so it's happy on a 12-volt truck, a 24-volt rig, or anything in between. At 14 volts it pulls 13.9 amps, so plan your wiring around that. RIGID finishes the pod with a Deutsch connector on the pigtail. If you've wired off-road lights before, you know why that matters. It's a sealed connector that locks in and keeps water and trail grime out of the electrical side. Pair it with a relay and fuse sized for the draw, and run a dedicated switch at the dash. A light this bright deserves its own circuit, not a tap off an accessory line.

Mounting is surface mount, and everything you need comes in the box. You get a stainless steel U-shape bracket and the mounting hardware, so you can bolt it to a bumper, a roof rack, a light-bar tab, or a ditch-light bracket and aim it right where you need it. The stainless bracket won't rust out on you the first wet season, which is more than you can say for the plated steel hardware that ships with a lot of lights.

So who's this for? Overlanders who want one serious pod on the front bumper. UTV and side-by-side owners adding a long-range spotlight to a roof or A-pillar. Truck folks running a ditch light or a chase setup for the desert. The Phoenix XL is a premium piece, and the price reflects that, but you're getting genuine RIGID output, the selectable color system, and a lens setup you can retune anytime. Buy it once, wire it right, and run it for years.

Key Features

  • 14,213 raw lumens from a single 7-inch pod for genuine long-range reach
  • Spot lens installed out of the box throws a tight 10-degree beam for long-distance visibility
  • Five selectable color modes (Cool White, Natural, Full Power, Warm, Amber) tune output for dust, fog, snow, or a clear night
  • Three interchangeable lenses (Spot, Drive, Combo) let you change the beam pattern anytime
  • 191-watt output with a 13.9-amp draw at 14 volts DC
  • Wide 9 to 36 volt operating range works on 12V and 24V systems
  • Black cast aluminum housing doubles as a heat sink for sustained full-power runs
  • Sealed Deutsch connector on the pigtail keeps water and grime out of the wiring
  • Stainless steel U-shape bracket and mounting hardware included for surface mounting
  • Clear lens over the spot optic for maximum light transmission

Why Buy from NVN Marine

  • Authorized RIGID Industries reseller, full manufacturer warranty
  • NMEA member and ABYC certified, advice from real boat techs
  • Same-day shipping before 3 PM ET on in-stock items
  • NY headquarters and Fort Lauderdale flagship retail store
NVN Marine — 11 W State Road 84, Fort Lauderdale, FL 33315 Available for pickup at our Fort Lauderdale store (Tuesday) $554.99
03 · The numbers

Technical specifications

Title RIGID Industries Phoenix XL Pod 7-Inch Spot LED Light
Brand RIGID Industries
Manufacturer Part Number 168241
UPC 849774037191
Light Source LED
Housing Size 7 Inch Square
Power 191 Watt
Amp Draw 13.9 Amp at 14 Volt DC
Raw Lumens 14213
Beam Pattern Spot
Spot Beam Angle 10 degrees
Included Lens Spot Lens
Interchangeable Lenses Spot, Drive, Combo
Selectable Color Modes Cool White, Natural, Full Power, Warm, Amber
Operating Voltage 9V - 36V
Lens Color Clear
Housing Material Black Cast Aluminum
Mounting Surface Mount
Connector Deutsch
Included Bracket Stainless Steel U-Shape Bracket
Included Hardware Mounting Hardware
04 · Before you buy

Frequently asked questions

What's included with the Phoenix XL Pod?

You get the 7-inch Phoenix XL Pod with the spot lens installed, a stainless steel U-shape mounting bracket, and the mounting hardware. It also comes with a Deutsch connector on the pigtail for a sealed electrical connection.

What beam pattern does the spot lens throw?

The spot lens gives you a narrow 10-degree beam built for long-distance reach. It concentrates all 14,213 lumens into a tight column, so you see far down the trail or road ahead.

Can I change the beam pattern later?

Yes. The Phoenix XL uses three interchangeable lenses, Spot, Drive, and Combo. This pod ships with the Spot lens, and you can swap to Drive or Combo whenever you want a wider or more blended beam.

What are the five color modes?

Cool White, Natural, Full Power, Warm, and Amber. You switch between them at the touch of a button. Cool white reaches farthest on clear nights, while warm and amber cut through dust, fog, and snow.

What voltage does it run on?

It operates across a wide 9 to 36 volt range, so it works on 12-volt and 24-volt systems. At 14 volts it draws 13.9 amps and pulls 191 watts.

How should I wire it?

Because it draws 13.9 amps at 14 volts, run it on its own circuit with a relay and a fuse sized for the load, plus a dedicated switch at the dash. Don't tap it off a small accessory line.

What connector does it use?

It uses a Deutsch connector on the pigtail. That's a sealed, locking connector that keeps water and trail grime out of the electrical connection. Add a little dielectric grease to the pins for extra protection.

How is it mounted?

It's a surface-mount light. The included stainless steel U-shape bracket and hardware let you bolt it to a bumper, roof rack, light-bar tab, or ditch-light bracket and aim it where you need it.

What vehicles is the Phoenix XL made for?

It's built for trucks, UTVs, side-by-sides, and overland rigs. Owners run it as a long-range bumper pod, a roof or A-pillar spotlight, or a ditch light for high-speed off-road driving.
