RIGID Phoenix Pod Light Clear Spot Lens | 168245
RIGID Phoenix Pod Light Clear Spot Lens | 168245 — Product description

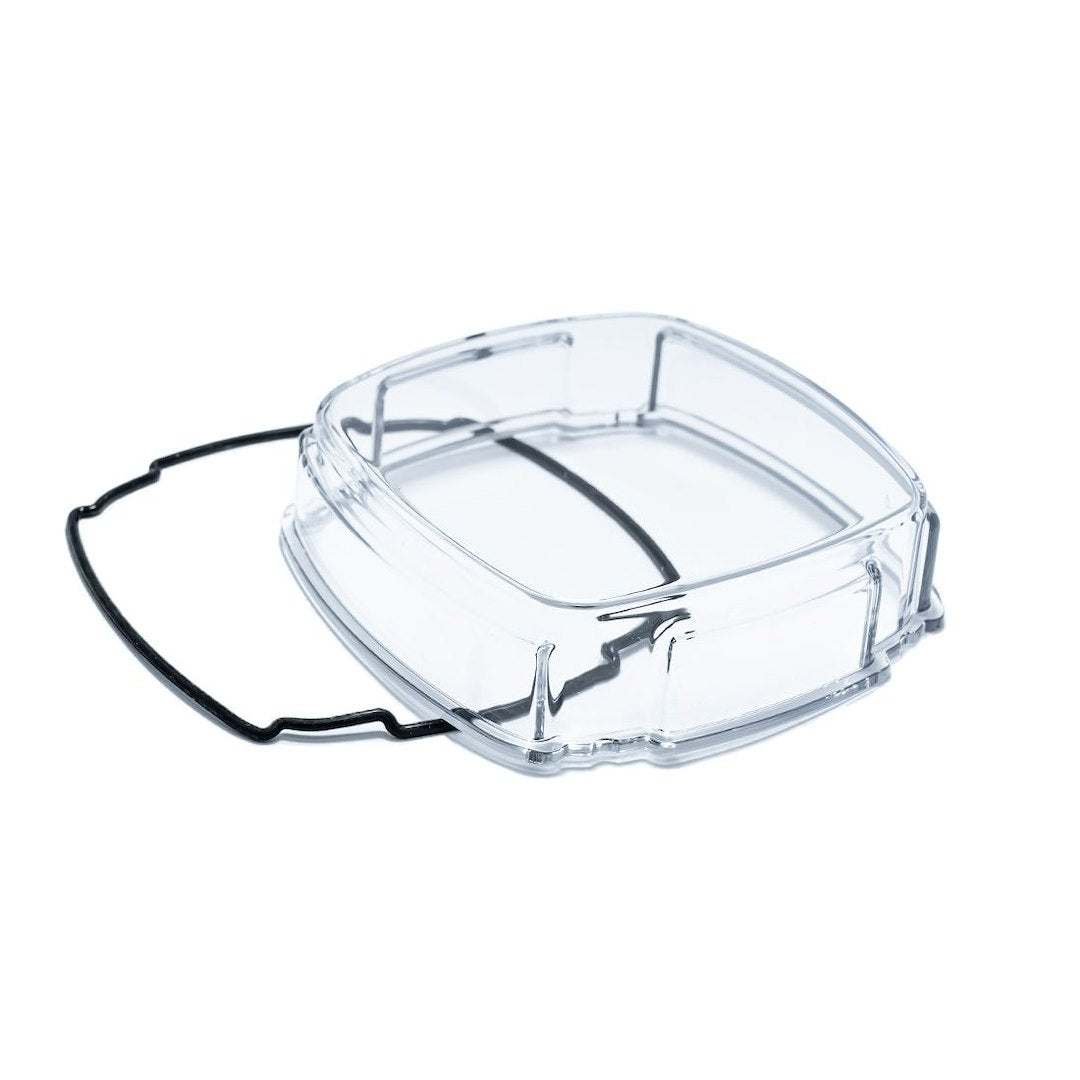

Cracked or hazed the lens on your RIGID Phoenix pod light? This is the genuine clear replacement, cut for the 5-inch square Phoenix housing with a spot beam pattern and its own gasket. Pop the old one out, seat the new one, and you're back to a tight, focused beam without buying a whole new light.
The Phoenix from RIGID Industries was built around one smart idea: the lens comes off. So when the front of your pod light gets sandblasted by trail dust, cracked by a rock, or hazed after a few hard seasons, you don't toss the whole light. You swap the lens. This is the genuine clear replacement for the 5-inch square Phoenix, and it drops right into the housing you already own.
It's a spot beam lens, which means it takes the raw LED output and focuses it into a tight, far-throwing pattern. The optic is cut to 19.7 degrees horizontal and 16.5 degrees vertical, so the light stacks distance instead of spreading it wide. That's the lens you want for reaching down a dark channel, lighting up the far bank, or throwing a beam well ahead of the bow. If you'd been running a wider pattern and want more reach, this is also how you change the character of the light without buying a new one.
The lens is molded from polycarbonate, the same material RIGID uses for impact resistance out on the water and off the trail. It ships as a single lens with its own gasket, so you get a proper seal when you close the housing back up. Don't reuse the old, compressed gasket and hope for the best. Water finds its way past a tired seal, and a fogged-up pod light helps nobody.
Swapping it is a few-minutes job. Back out the fasteners on the Phoenix bezel, lift the old lens and gasket, seat the new gasket, drop in the clear lens, and torque the bezel back down evenly. No wiring, no re-aiming the mount. Just make sure the gasket sits flat in its channel before you snug everything down.
One thing to check before you order: this is the clear, 5-inch square, spot-pattern lens. Phoenix housings and lenses come in different sizes and beam patterns, so match your existing light before you buy. Not sure which one you've got? Send us the part number off your light and we'll point you to the right lens.
Key Features
- Clear polycarbonate lens, molded for impact resistance on the water and off-road
- Spot beam pattern, 19.7 degrees horizontal by 16.5 degrees vertical for tight, long-throw light
- Fits the 5-inch square RIGID Phoenix pod light housing
- Ships as a single lens with its own gasket for a fresh, watertight seal
- Direct replacement, no wiring or re-aiming needed
- Genuine RIGID Industries part, MPN 168245
Why Buy from NVN Marine
- Authorized RIGID Industries reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | RIGID Phoenix Pod Light Replacement Lens, Clear Spot, 5-Inch Square |
|---|---|
| Brand | RIGID Industries |
| Manufacturer Part Number | 168245 |
| UPC | 849774037238 |
| Fits | Phoenix Pod Lights |
| Lens Size | 5 Inch Square |
| Lens Color | Clear |
| Material | Polycarbonate Plastic |
| Quantity | Single |
| Gasket | Included |
| Beam Pattern | Spot |
| Beam Angle | 19.7 Degree Horizontal / 16.5 Degree Vertical |
Frequently asked questions
Which light does this lens fit?
It's the replacement lens for the 5-inch square RIGID Phoenix pod light. Phoenix lenses come in different sizes and beam patterns, so match your existing light before ordering. If you're not sure, send us the part number off your light.
What beam pattern does it give me?
This is a spot lens. It focuses the LED output to 19.7 degrees horizontal and 16.5 degrees vertical, so you get a tight, long-throw beam that reaches distance instead of spreading wide.
Does it come with a gasket?
Yes. It ships as a single lens with its own gasket, so you get a fresh, watertight seal when you close the housing back up. We'd replace the gasket rather than reuse the old, compressed one.
Is it hard to install?
No, it's a few-minutes job. Back out the fasteners on the Phoenix bezel, lift out the old lens and gasket, seat the new gasket, drop in the clear lens, and torque the bezel back down evenly. No wiring and no re-aiming the mount.
Can I change my beam pattern by swapping the lens?
Yes. Because the Phoenix lens is removable, fitting this spot lens gives you a tighter, more focused beam than a wider pattern would. It's an easy way to change the character of a light you already own.
What's the lens made of?
Polycarbonate plastic, the same impact-resistant material RIGID uses for its lenses so they hold up to debris, spray, and vibration.
