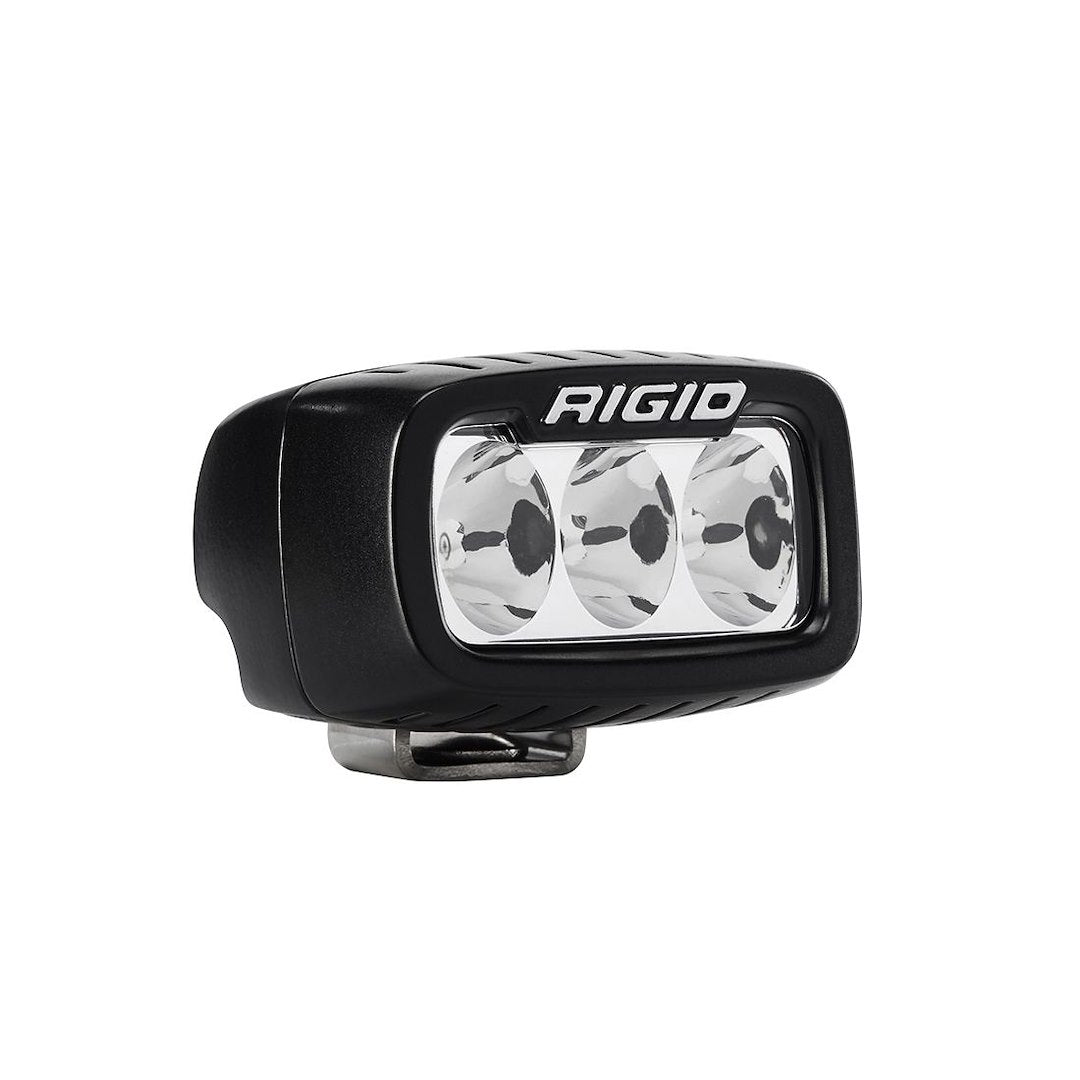

Rigid Industries SR-M PRO 912313 LED Driving Light
Rigid Industries SR-M PRO 912313 LED Driving Light — Product description
The Rigid Industries SR-M PRO 912313 is a compact surface-mount LED light that punches well above its size. It runs a driving beam from a 2 by 3 inch housing, pulls just 1.64 amps at 12 volts, and throws 2376 raw lumens down the line. When you need extra reach off the hardtop, a tower, or a rig, this is the light that earns a permanent spot.
The Rigid Industries SR-M PRO is one of those lights you bolt on once and forget about, in the best way. It's a surface-mount LED in a 2 inch by 3 inch rectangular housing, wired for a driving beam, and it puts out 2376 raw lumens while only drawing 1.64 amps at 12 volts. That's a lot of usable light for almost no load on your electrical system. On a boat that means you can add a pair without rethinking your fuse block, and on a rig it means the same.
The beam here is a driving pattern. That's a focused, longer throw meant to reach out ahead of you rather than wash light close and wide. So it's the right pick when you want to see distance, a channel marker, a dock approach at range, or the trail past your headlights. If you're after a broad close-in wash for the cockpit or the deck right around the boat, a flood pattern suits that job better. Plenty of owners run a driving light like this one for reach and pair it with a wider light for the near field.
Build quality is where the SR-M PRO earns its keep. The housing is powder-coated black aluminum with rear cooling fins, so the LEDs shed heat and hold their output instead of throttling back after a few minutes on. The lens is unbreakable clear Lexan, not glass, which is exactly what you want on a light that's going to eat spray, gravel, and the occasional knock. It's rated for off-road use, and that same overbuilt housing is why these hold up on hardtops and towers that take a pounding at speed.
One thing we'll tell you straight: this is an off-road and auxiliary light, not a certified navigation light. Don't wire it in place of your running lights or your all-round white. Use it for working light, spotting, and reach, and keep your legal nav lighting separate. That's how it's meant to be run.
The kit is genuinely complete, which we appreciate. You get the single light, mounting hardware, a stainless steel U-shape bracket, a solid black light cover for when it's parked, and a wiring harness with an inline switch and a Deutsch connector. The Deutsch fitting is a sealed, positive-lock connector, so your power connection stays dry and doesn't back out on a rough ride. That's a nice touch at this size. Between the bracket and the harness, most folks have everything they need to get it mounted and switched in an afternoon.
A couple of install notes from experience. The U-bracket mounts to a flat surface, and on thin aluminum consoles or fiberglass it's worth backing the fasteners with a plate or large washers so the tabs don't work loose over time. Run appropriately sized wire for the distance, the draw is low but a long run on undersized wire will dim any light. And if you're on saltwater, give the fins and hardware a fresh-water rinse now and then. The powder coat and stainless bracket handle the marine environment well, but salt loves to sit in cooling fins.
So who's this for? Anglers and boaters who want a tough, low-draw spot of reach on a hardtop or tower. Off-roaders adding a clean driving light without a big amp penalty. Anybody who values a light that comes with the bracket, the harness, and the switch already in the box instead of a parts hunt afterward. It's a small light with a serious build, and at just 1.64 amps of draw it's about the easiest and cleanest upgrade you can make to how far you can actually see after dark.
Key Features
- Driving beam pattern for focused, long-distance reach ahead of the boat or vehicle
- 2376 raw lumens from a compact 2 inch by 3 inch rectangular housing
- Low 1.64 amp draw at 12 volts, easy to add a pair without straining your electrical system
- Unbreakable clear Lexan lens shrugs off spray, gravel, and impacts where glass would crack
- Powder-coated black aluminum housing with rear cooling fins for stable output under sustained use
- Stainless steel U-shape mounting bracket and hardware included in the box
- Wiring harness with inline switch and sealed Deutsch connector included
- Solid black snap-on light cover included to protect the lens when parked
- Surface-mount design fits hardtops, towers, bumpers, and consoles
Why Buy from NVN Marine
- Authorized Rigid Industries reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Rigid Industries SR-M PRO 912313 LED Driving Light |
|---|---|
| Brand | Rigid Industries |
| Manufacturer Part Number | 912313 |
| UPC | 849774027796 |
| Series | SR-M PRO |
| Light Pattern | Driving Beam |
| Raw Lumens | 2376 Lumens |
| LED Power | 23 Watt |
| Amp Draw | 1.64 Amp at 12 Volts |
| Lens Size | 2 Inch x 3 Inch Rectangular |
| Lens Material | Unbreakable Clear Lexan |
| Housing | Powder Coated Black Aluminum with Rear Cooling Fins |
| Mounting Style | Surface Mount |
| Bracket | Stainless Steel U-Shape |
| Connector | Deutsch |
| Included | Single Light, Mounting Hardware, Stainless Steel U-Shape Bracket, Solid Black Light Cover, Harness with Switch, Deutsch Connector |
| Rated Use | Off-Road Use Only |
| Keystone Part Number | R2G912313 |
Frequently asked questions
What beam pattern does the SR-M PRO 912313 have?
It's a driving beam, which is a focused, longer-throw pattern that reaches out ahead of you rather than washing light close and wide. It puts out 2376 raw lumens. If you want a broad close-in wash for the deck or cockpit, a flood pattern is the better tool for that job.
How much power does it draw?
Just 1.64 amps at 12 volts. That's low enough that you can add a pair without rethinking your fuse block or worrying about the load on your electrical system.
What comes in the box?
A single light, mounting hardware, a stainless steel U-shape bracket, a solid black light cover, and a wiring harness with an inline switch and a Deutsch connector. It's a complete kit, so you're not hunting for parts to get it mounted and switched.
Is the lens glass?
No, it's unbreakable clear Lexan. That's exactly what you want on a light that's going to take spray, gravel, and the occasional knock. It won't shatter the way a glass lens can.
Can I use this as a navigation light?
No. It's rated for off-road and auxiliary use, not as a certified navigation light. Use it for working light, spotting, and reach, and keep your legal running lights and all-round white separate.
How does it mount?
It surface-mounts using the included stainless steel U-shape bracket and hardware. On thin aluminum consoles or fiberglass, back the fasteners with a plate or large washers so the bracket tabs stay tight over time.
Does it come with a switch and a way to wire it?
Yes. The included harness has an inline switch and a Deutsch connector, which is a sealed, positive-lock fitting that keeps your power connection dry and won't back out on a rough ride.
Will it hold up on a saltwater boat?
The powder-coated aluminum housing and stainless bracket handle the marine environment well. Give the cooling fins and hardware a fresh-water rinse now and then, since salt likes to settle into the fins.
What size wire should I run?
The draw is low at 1.64 amps, but a long run on undersized wire will dim any light. Size the wire for the length of your run so you get full output at the light.
What does SR-M PRO mean?
SR-M is the surface-mount version of Rigid Industries' SR line, and this is the PRO driving configuration. It's the compact, low-profile format built to bolt onto a flat surface rather than clamp to a bar.
