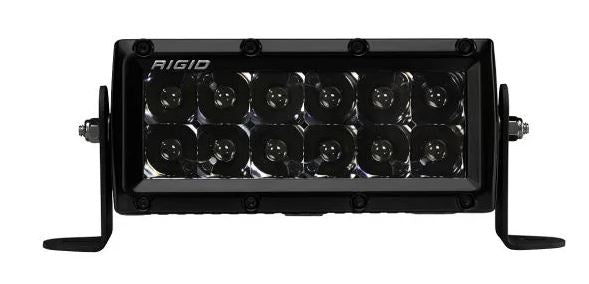

RIGID E-Series PRO 6 Inch Spot LED Light Bar, Midnight Black
RIGID E-Series PRO 6 Inch Spot LED Light Bar, Midnight Black — Product description
The RIGID E-Series 6-inch spot light throws a tight, long beam from twelve LEDs, and it's built to take spray, vibration, and salt without blinking. You get the blacked-out Midnight lens, a sealed Deutsch connector, L-brackets, wiring harness, and switch in the box. Bolt it to a tower, hardtop, or bumper and wire it in.
The RIGID E-Series PRO 6-inch is a compact LED light bar that punches well above its size. Twelve LEDs behind a spot lens push 9504 raw lumens down a tight, focused beam, so it's the light you reach for when you need to see something far off in the dark. Coming into an unfamiliar inlet at night, picking out a channel marker, lighting up the beach at anchor, or spotting a trailer ramp after a long day, this is the kind of throw that turns black water into something you can actually read.
This is the Midnight Edition, which means the lens carries a black enamel coating and the aluminum housing is finished in black. Off, it disappears into a black tower or hardtop. On, it lights up like any other E-Series. If you care about how your rig looks in daylight and not just after sunset, that blacked-out look is the reason this version exists.
RIGID builds the E-Series to survive the stuff that kills cheaper lights. The housing is extruded aluminum that sheds heat, the lens is polycarbonate so it won't shatter, and the whole unit is sealed against water. That matters on a boat. Salt spray, wash-downs, and the constant pounding of a planing hull are exactly the conditions that corrode a bad connection or crack a weak lens. We've seen these hold up on towers and hardtops season after season.
The beam here is a spot pattern, and that's a deliberate choice. A spot throws a narrow, concentrated column of light a long way out, which is what you want for distance. It isn't a floodlight, so it won't wash a wide area right in front of you with even light. A lot of boaters run a spot for reach and add a flood-pattern E-Series alongside it for spread. If you only run one and you want raw distance, the spot is the pick. If you want to light up the whole cockpit or swim platform, go with the flood version in the same line instead.
Wiring it in is straightforward because RIGID includes what you need to get it running. In the box you get two black powder-coated L-shaped brackets for a surface mount, a sealed Deutsch connector, a wiring harness, and a switch. The Deutsch connector is the right way to do it. Those connectors are weather-sealed and lock positively, so once it's crimped and seated you don't have to worry about it backing out or corroding the way a crimp-and-tape splice would. A dab of dielectric grease on the pins during assembly is cheap insurance against salt.
Plan your circuit around the draw. This light pulls 6.36 amps at 12 volts, or 1.88 amps at 24 volts. That's real current, so wire it to a properly fused circuit sized for the load, and if you're running more than one light off a single switch, put a relay in so you're not pushing all that current through a dash toggle. Fuse it, ground it well, and it'll run for years.
Mounting is a surface mount with the two included L-brackets. Pick a spot with a clear line of sight for the beam, a tower crossbar, a hardtop edge, a bow rail, or a bumper if you're putting it on a truck or side-by-side. The E-Series is at home on a boat, but plenty of these end up on off-road rigs and overland trucks too, because the same sealing and vibration resistance that survives a wet transom also survives a washboard trail. Use a thread locker on the bracket hardware so vibration doesn't walk the bolts loose over time.
Bottom line, this is a serious little spot light from a company that builds them right. It's bright, it's sealed, it comes with the connector, harness, brackets, and switch you need, and the Midnight finish keeps it looking clean when the sun's up. If you need long-distance light on a boat, a truck, or anything that lives outdoors and takes a beating, the E-Series 6-inch spot earns its place on the rig.
Key Features
- 9504 raw lumens from 12 LEDs for long-distance reach in the dark
- Spot beam pattern throws a tight, focused column of light far downrange
- 6.36A draw at 12V (1.88A at 24V) runs on 12 or 24 volt systems
- Sealed Deutsch connector locks positively and resists corrosion
- Extruded aluminum housing sheds heat and stands up to salt and vibration
- Polycarbonate lens with black enamel Midnight coating won't shatter
- Complete kit with two L-shaped surface-mount brackets, wiring harness, and switch
- 6-inch compact length fits tight tower, hardtop, and bumper spots
- 89 watt output built for marine, off-road, and overland use
Why Buy from NVN Marine
- Authorized RIGID Industries reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | RIGID E-Series PRO 6 Inch Spot LED Light Bar, Midnight Edition |
|---|---|
| Brand | RIGID Industries |
| Manufacturer Part Number | 106213BLK |
| UPC | 849774028397 |
| Series | E-Series PRO Midnight Edition |
| Length | 6 Inch |
| LED Count | 12 Bulb |
| Wattage | 89 Watt |
| Amperage (12V) | 6.36 Amp |
| Amperage (24V) | 1.88 Amp |
| Beam Pattern | Spot |
| Raw Lumens | 9504 |
| Lens Material | Polycarbonate |
| Lens Finish | Black Enamel Coated |
| Housing Material | Aluminum |
| Housing Finish | Black |
| Mounting Style | Surface Mount |
| Connector | Deutsch |
| Included Hardware | 2 Black Powder Coated L-Shape Brackets, Wiring Harness, Switch |
Frequently asked questions
What beam pattern does this RIGID E-Series 6-inch light use?
It's a spot beam. That means a narrow, focused column of light built for distance rather than a wide spread. If you need to light up a broad area close in, pair it with a flood-pattern E-Series.
How much power does it draw?
It pulls 6.36 amps at 12 volts, or 1.88 amps at 24 volts. Wire it to a properly fused circuit sized for that load, and use a relay if you're running more than one light off a single switch.
Does it run on 12 or 24 volt systems?
Both. The amp draw is 6.36A at 12V and 1.88A at 24V, so it works on either system.
What comes in the box?
You get the light, two black powder-coated L-shaped brackets for surface mounting, a sealed Deutsch connector, a wiring harness, and a switch. It's a complete kit ready to wire in.
Is it sealed enough for a boat?
Yes. The housing is sealed aluminum, the lens is polycarbonate, and it uses a weather-sealed Deutsch connector. Add a little dielectric grease on the pins during install for extra salt protection.
How bright is it?
It produces 9504 raw lumens from twelve LEDs. In a spot pattern that concentrates into a long, tight beam for real reach in the dark.
What makes it the Midnight Edition?
The lens carries a black enamel coating and the aluminum housing is finished in black. Switched off, it blends into a black tower or hardtop. Switched on, it performs like any other E-Series.
How does it mount?
It's a surface mount using the two included L-shaped brackets. Pick a spot with a clear line of sight for the beam and use a thread locker on the bracket bolts so vibration doesn't loosen them.
What connector does it use?
A Deutsch connector. Those are weather-sealed and lock positively, so the connection stays solid in spray and vibration once it's properly crimped and seated.
Can I use this on a truck or off-road rig instead of a boat?
Absolutely. The same sealing and vibration resistance that handles a wet transom handles a washboard trail. Plenty of these go on bumpers, towers, and roof racks on trucks and side-by-sides.
