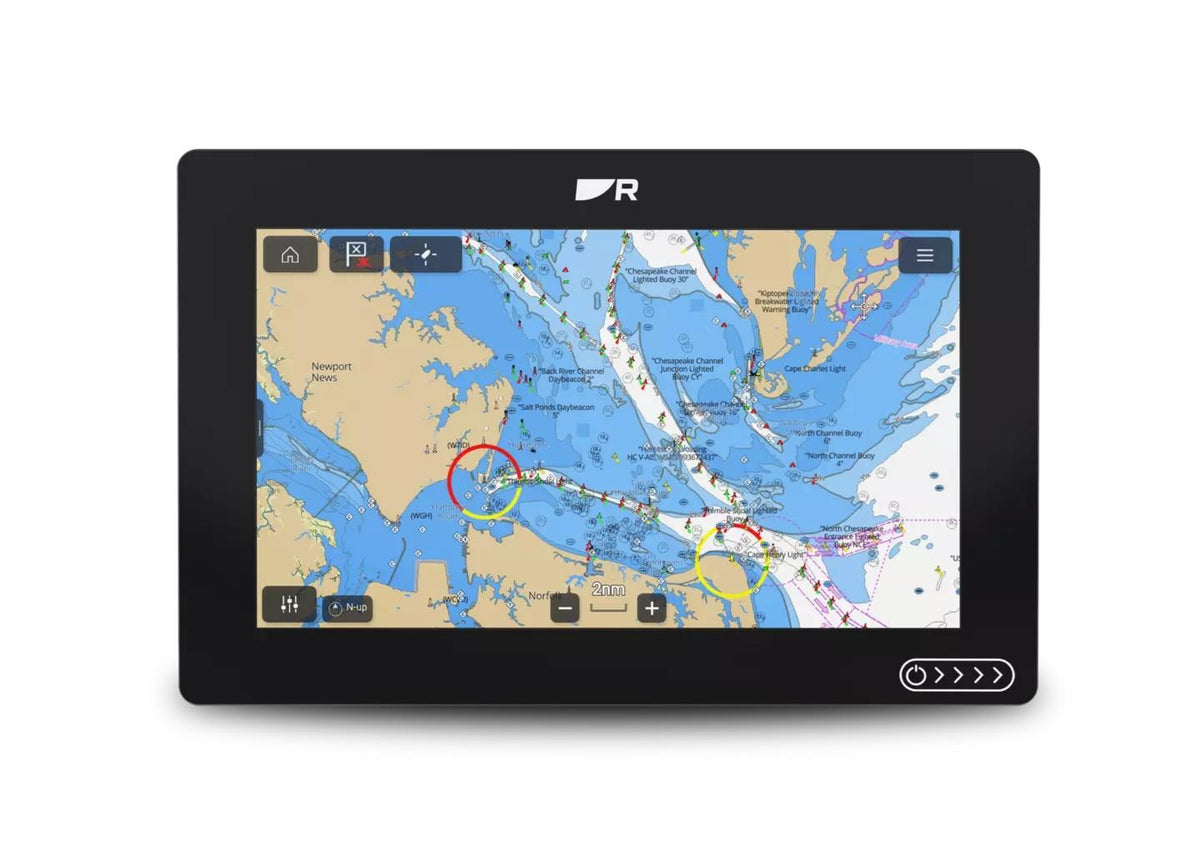

Raymarine Axiom 2 9 Chartplotter, LightHouse Charts NA

The Raymarine Axiom 2 9 is one of the most popular helm displays on the water, and this version ships with LightHouse Charts for North America already bundled in. It's a 9-inch multifunction chartplotter built around a new 6-core processor, which is the reason charts redraw up to 30 percent faster than the previous generation. If you've ever watched a display stutter while you're trying to line up a channel marker in a following sea, you'll appreciate how quickly this one keeps up.

At the center of the experience is Raymarine's LightHouse operating system. It's a single, clean interface that ties navigation, radar, video, and NMEA 2000 engine data into one screen, so you're not hunting through menus while you're running an inlet. The 9-inch IPS display pushes a widescreen HD 1280 x 720 image at 1500 nits of brightness, which stays readable in direct sun and holds its color when you're wearing polarized glasses. A HydroTough oleophobic coating sheds spray and fingerprints, and the capacitive touchscreen still responds when the glass is wet.

Networking is where the Axiom 2 really opens up. Gigabit RayNet Ethernet links displays and sensors far faster than older marine networks, so radar sweeps, sonar returns, and video feeds move smoothly across every screen at the helm. You can run this unit as a standalone chartplotter or connect additional Axiom 2 displays at a second station and share the same data. Built-in Wi-Fi 802.11 b/g/n and Bluetooth 4.0 let you pair a phone, stream from popular entertainment apps, and pull software updates without pulling the unit off the dash.

Engine monitoring is built in too. Connect to leading outboards and sterndrives, including Mercury, Yamaha, and Suzuki, over NMEA 2000 and watch fuel burn, RPM, and propulsion data right on the chart page. For sailors, Axiom 2 carries a genuinely useful suite of tools such as polar profiles, dynamic laylines, race timers, and tactical sailing displays, so you can trim for real gains instead of guessing.

Route planning is flexible. You can plot directly on the chart, or use the Orca mobile app to build a route on your phone and push it to the display over Wi-Fi. Pick your start and destination, and Orca's routing works out a sensible path for your vessel. The display stores up to 10,000 waypoints, 250 routes, and 15 tracks, which is far more than most weekend cruisers will ever fill. The internal GNSS receiver tracks GPS, GLONASS, and Beidou across up to 28 satellites and fixes your position within 5 meters when SBAS corrections are available.

This is the dedicated chartplotter build, and it's a smart choice if navigation, radar, and networked data are your priority. There's a 25-pin RealVision transducer connector on the back, so you can add a fishfinder transducer later with the correct adapter cable if your plans change. If you already know you want sonar out of the box, step up to the Axiom 2 RV version instead.

Installation is straightforward. The unit ships with a trunnion bracket and knobs for a quick bracket mount, plus a panel-mount gasket and hardware for a flush install. A MicroSDXC card slot handles chart cards and screenshots, and 64 GB of internal storage keeps your data close. Rugged IPX6 and IPX7 waterproof construction means it shrugs off heavy spray and brief submersion, so you can mount it at an open helm without worrying. It runs on 8 to 16 volts DC and draws just under 12 watts, which is easy on your house bank.

Compatible chart options are broad, covering Raymarine LightHouse Charts, Navionics, C-MAP, Florida Marine Tracks, CMOR Mapping, Standard Mapping, StrikeLines, Imray Digital Charts, and S-63 encrypted charts. That flexibility matters when you fish one region hard and cruise another. Whether you're upgrading an aging helm or building a new console, the Axiom 2 9 gives you a fast, connected foundation you can grow into.
