Raymarine Axiom 2 7 Chartplotter North America Charts E70720-00-102

The Raymarine Axiom 2 7 chartplotter, part number E70720-00-102, is the navigation-focused version of Raymarine's most popular 7-inch display, and this bundle ships with North America LightHouse charts already loaded. If your priority is confident navigation rather than built-in sonar, this is the model that makes sense. It's a dedicated chartplotter that fixes your position, draws your route, and gives you a clear, bright picture of the water ahead, right out of the box.

Start with what it isn't, because that matters when you're choosing. This is the standard Axiom 2, not the RV version, so it doesn't have RealVision 3D sonar built into the display. If you mainly cruise, run inlets and channels, or want a clean plotter at a second station, that's a feature, not a shortcoming. You're not paying for a sonar engine you won't use. And because the Axiom 2 networks so well, you can still add sonar later through a networked module or another Axiom 2 RV if your needs change.

What you do get is a genuinely good navigator. The preloaded North America LightHouse charts mean you can plan a route and go on day one, no separate chart card required. A fast internal GNSS receiver tracks GPS, GLONASS, and Beidou satellites and updates ten times per second, so your boat icon stays locked to your real track even through a tight turn or a busy harbor. You can store up to 10,000 waypoints, 250 routes, and 15 tracks, which covers a full season of anchorages, channels, and the runs you make again and again.

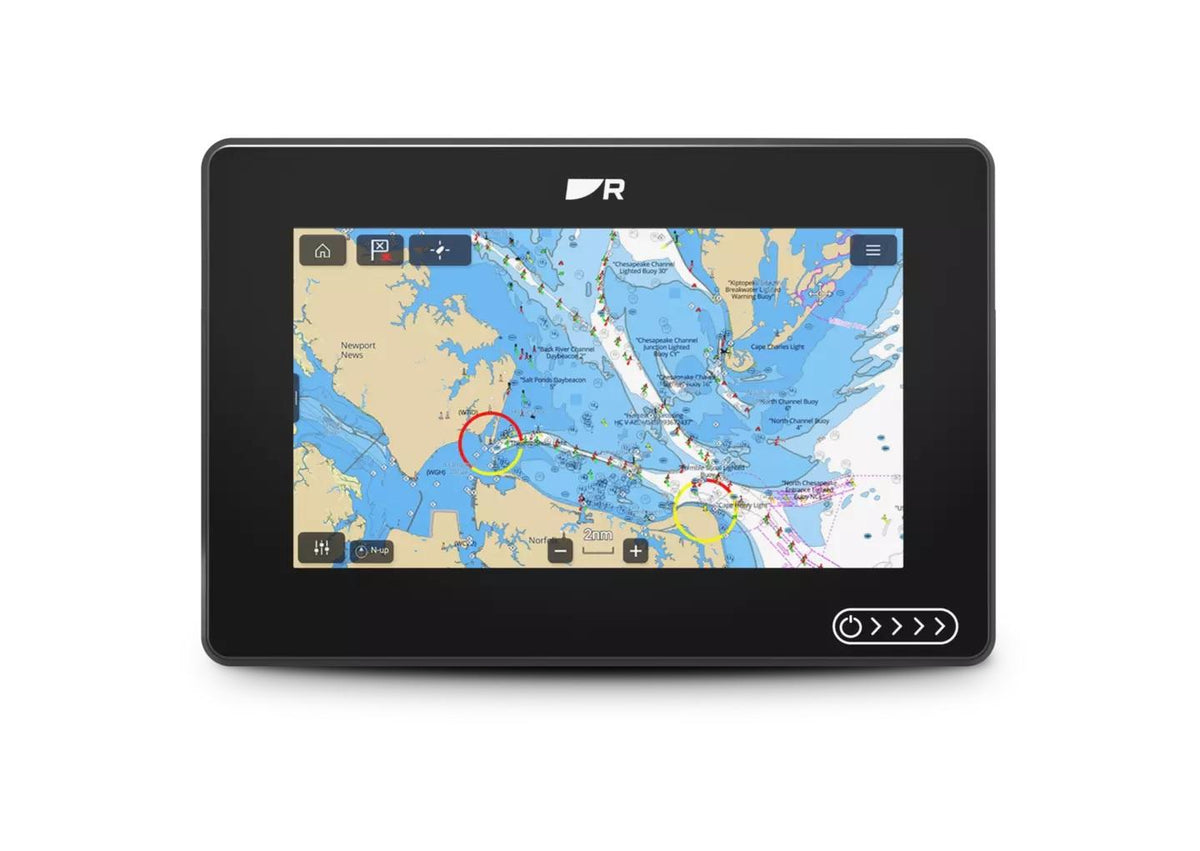

The display is where you'll notice the quality every time you're on the water. It's a 7-inch IPS panel at WSVGA 1024 x 600, rated at 1800 nits, and that brightness is what keeps it readable under a midday sun with polarized glasses on. IPS gives you wide viewing angles, so it still looks right when you're steering from the side of the helm. Raymarine's HydroTough oleophobic coating helps the glass shed spray and resist the greasy fingerprints that build up over a day of running. Behind the glass, a fast 6-core processor and the LightHouse operating system deliver up to 30 percent quicker chart redraws than the previous generation, so panning and zooming stay smooth.

Connectivity is a real strength here. Gigabit RayNet Ethernet ties the Axiom 2 into radar, networked sonar modules, thermal cameras, and additional Axiom 2 displays, so a simple single-screen setup can grow into a full multi-station helm down the road. NMEA 2000 support brings engine data to the screen, so you can watch RPM, fuel burn, and tank levels alongside your chart. Built-in Wi-Fi and Bluetooth handle software updates, app integration, and wireless route sharing from a companion planning app. There's a microSD slot for extra chart regions and backups, plus 64 GB of internal storage for smooth performance.

It's built to live outdoors on a helm. The sealed housing carries IPX6 and IPX7 water ratings, so heavy spray, rain, and washdowns don't faze it. It draws under 10 watts and runs on standard 12-volt DC with an 8 to 16 volt operating range, the same supply as the rest of your electronics. Mounting is flexible, with both trunnion bracket and flush mount options, so it fits a console cutout or a helm pod cleanly. The trunnion footprint is roughly 250 mm wide by 163 mm tall, and the flush cutout is more compact at about 201 by 133 mm.

If you want a bright, fast, well-connected 7-inch chartplotter that's ready to navigate the moment it's wired in, and you don't need sonar baked into the same screen, the Axiom 2 7 with preloaded North America charts is a smart, cost-effective choice. You get the same premium display, processor, and networking as the RV model, just focused on the navigation job. It's an easy fit at a main helm on a cruiser or as a clean second plotter on a larger boat, and it leaves the door open to add sonar and more screens whenever you're ready.
