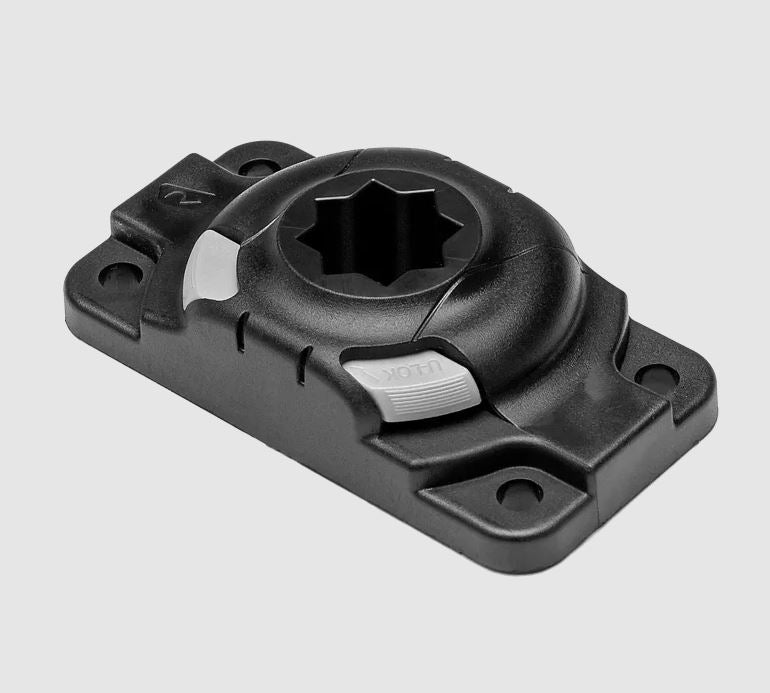

RAILBLAZA StarPort HD Mounting Base, Black
RAILBLAZA StarPort HD Mounting Base, Black — Product description
The RAILBLAZA StarPort HD is the heavy-duty mounting base that turns one drilled footprint into a dozen possibilities. Bolt it down once, then snap in a rod holder, an action camera arm, or any StarPort-compatible accessory whenever you want. Molded from UV-stabilized fiberglass-reinforced plastic in black, it's built to live outside and take a beating.
RAILBLAZA built the StarPort HD for boaters who are tired of drilling a fresh set of holes every time they want to add a piece of gear. It's a single surface-mount base that accepts the whole StarPort fit system. Mount the base once, and from then on you just twist accessories in and out. A rod holder for the morning bite. An action camera arm when the kids want footage. A light, a cup holder, a tool holder. One footprint, and the deck stays clean when nothing's plugged in.
The HD in the name is the important part. This is the reinforced version of the standard StarPort, molded from UV-stabilized fiberglass-reinforced plastic rather than plain resin. That matters when you're loading it with a rod under a running fish or an arm holding a camera out over the water at speed. The base takes the load without flexing the way a lighter mount would. And the black finish isn't just cosmetic. Black hides the slow yellowing that UV throws at plastic over the years, so a base mounted on an open bow still looks right three seasons in.
What can you hang off it? The short answer is anything in the StarPort accessory range, which is deep. Rod holders are the obvious one, and they're what most anglers buy the base for. But the same socket takes camera mounts, so you can run an action camera off the gunwale for hero shots or to document a release. Add a nav light, a bait board, a phone mount, a cutting board. Because the accessories share the one fitting, you can move a single tool between multiple bases around the boat. Put a base at the bow, one at the console, one at the transom, and swap gear to wherever you need it that day.
This isn't only a boat part, either. RAILBLAZA leans hard into the RV and powersport crowd too, and the StarPort HD is right at home on a kayak, a camper, a utility trailer, or a side-by-side. Anywhere you want a solid, low-profile socket to accept quick-change accessories, this base does the job.
Install is straightforward, but a few notes save you grief. The base ships with M5 by 20 millimeter machine screws, washers, and nylon lock nuts, which is the right hardware for through-bolting a typical fiberglass gunwale or deck. Whenever you can, through-bolt it with a backing plate or a large fender washer underneath. That spreads the load and keeps the base from working loose under a heavy rod. On thicker gunwales, over about three quarters of an inch, you may want longer bolts than the ones in the box. And on an aluminum jon boat where you can't reach behind the panel, self-tapping fasteners into solid metal are the way to go instead of the supplied machine screws. Tighten the nylon nuts firmly but don't crush the base. Snug is plenty.
One honest note. This is a mounting base, not the accessory itself. You're buying the socket and the hardware to fix it down. The rod holder, camera mount, or light you want to run in it is a separate purchase from the StarPort range. If you already own StarPort accessories, they'll drop straight in. If you're starting fresh, plan on adding at least the base and one accessory to get on the water.
For the money, it's a smart way to build a modular deck. Buy the bases once, buy the accessories as you need them, and never drill the same spot twice. That's the whole idea, and the HD version is the one we'd point you to if you're mounting anything that sees real load or a lot of sun.
Key Features
- UV-stabilized fiberglass-reinforced plastic construction stands up to sun and salt without flexing under load
- Black finish hides the UV yellowing that fades lighter plastics over time
- Accepts the full RAILBLAZA StarPort accessory range, so one base runs rod holders, camera mounts, lights, and more
- Twist-in fit system lets you swap accessories in seconds with no tools
- Heavy-duty reinforced build handles the strain of a fully loaded rod holder or an extended camera arm
- Ships with M5 x 20mm machine screws, washers, and nylon lock nuts for through-bolt mounting
- Low-profile base stays out of the way when no accessory is fitted
- Works on boats, kayaks, RVs, trailers, and powersport rigs
Why Buy from NVN Marine
- Authorized RAILBLAZA reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | RAILBLAZA StarPort HD Mounting Base |
|---|---|
| Brand | RAILBLAZA |
| Manufacturer Part Number | 03-4046-11 |
| UPC | 856154004643 |
| Model | StarPort HD |
| Color | Black |
| Material | UV Stabilized Fiberglass Reinforced Plastic |
| Mount Style | Surface Mount Base |
| Included Fasteners | M5 x 20 mm Machine Screws |
| Included Hardware | Washers and Nylon Nuts |
| Accessory Compatibility | RAILBLAZA StarPort Fit System |
| Typical Applications | Rod Holders and Action Camera Mounts |
Frequently asked questions
What exactly is the StarPort HD?
It's a heavy-duty surface-mount base. You bolt it to your boat, kayak, or RV once, and it accepts any RAILBLAZA StarPort-compatible accessory that twists into it. One mounting point, many possible accessories.
Does it come with a rod holder or camera mount?
No. This is the base only. It includes the mounting hardware to fix it down, but the rod holder, camera mount, or light you want to run in it is a separate purchase from the StarPort accessory range.
What hardware is included?
M5 by 20 millimeter machine screws, washers, and nylon lock nuts. That's the right set for through-bolting a typical fiberglass gunwale or deck.
Will the included screws work on a thick gunwale?
The M5 x 20mm screws suit most fiberglass mounting spots. If your gunwale is thicker than about three quarters of an inch, pick up longer bolts so you get full thread engagement through the nylon nuts.
Can I mount it on an aluminum jon boat?
Yes. When you can't reach behind the panel to fit the supplied nuts, use self-tapping fasteners driven into solid metal instead of the machine screws. Seal the holes and you're set.
What accessories fit it?
The full RAILBLAZA StarPort range. Rod holders, action camera mounts, nav lights, phone mounts, bait boards, cutting boards, and more all share the same fitting, so they move between bases freely.
Why choose the HD over the standard StarPort?
The HD is molded from UV-stabilized fiberglass-reinforced plastic, so it handles more load and strain without flexing. It's the one to pick for anything heavier or anything that sees a lot of sun.
Will the black plastic fade in the sun?
The material is UV-stabilized to resist yellowing, and the black finish hides what little discoloration does happen far better than lighter plastics. Expect it to stay looking right for years on an open deck.
Do accessories lock in, or can they fall out on a rough ride?
Accessories seat firmly into the base. If you want to take out any play on a bumpy run, a couple of extra nylon washers under the accessory give you a tighter, flush fit.
Can I use it on a kayak or RV?
Absolutely. RAILBLAZA designs its mounts for kayaks, campers, trailers, and powersport rigs as well as boats. Anywhere you want a low-profile socket for quick-change gear, this base fits in.
