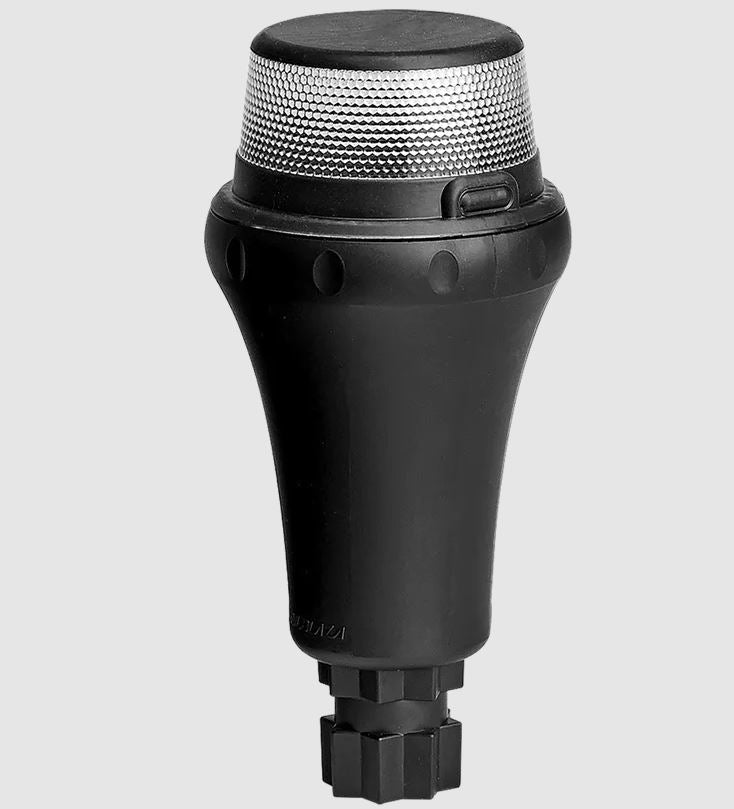

RAILBLAZA Illuminate 360 White LED Nav Light (Light Only)
RAILBLAZA Illuminate 360 White LED Nav Light (Light Only) — Product description
The RAILBLAZA Illuminate 360 is a portable all-round white LED light that's US Coast Guard approved and visible up to 2 nm. It runs off a single AA battery and clicks into any RAILBLAZA mount, so you get a legal anchor light on a tender, kayak, or small powerboat with zero wiring.
The RAILBLAZA Illuminate 360 is a portable all-round white LED light that solves a problem every boater knows. You need a proper anchor light or all-round white light, and you don't want to run new wiring to get one. This is the light-only version, so it drops straight into any RAILBLAZA mount you already have on the boat and runs off a single AA cell. No fuse panel, no crimping, no drilling a new hole for a fixed base.
It puts out a clean white LED glow that's visible up to 2 nm in clear conditions, and it carries US Coast Guard approval as an all-round white light. That makes it a real navigation light, not a novelty lamp. For a lot of tenders, dinghies, kayaks, and small powerboats under about 26 feet, this is exactly the all-round or anchor light the rules call for when you're sitting at anchor after dark or moving in reduced visibility.
Three operating modes cover most situations. High gives you the brightest output when you want to be seen. Medium is what most folks leave on for a full night at anchor, and it's the mode that stretches battery life the furthest. Blinking is there when you want an attention-getting signal, though it's the hungriest on cells and tends to run down a set in about a day of continuous use. Depending on the mode and the battery you load, you'll get anywhere from 25 hours to well over 200 hours on a single AA. We'd suggest keeping a spare cell in the console dry box so you're never caught short.
The housing is UV stabilized fiberglass reinforced plastic in black, built to sit out in the sun season after season without going chalky. It's rated IP67, so it shrugs off dust and takes brief immersion without flooding. The whole light is compact, 2.36 inches across and 5 inches tall in a simple conical shape, so it stows in a hatch or a glovebox when you're not using it.
Here's where the modular part pays off. Because this is the light-only head, it clicks into the RAILBLAZA StarPort, SidePort, RIBPort, and Rail Mount bases. Put a StarPort on the tender and another on the main boat, and you can carry one light between them in seconds. That's genuinely useful if you row a dinghy out to a mooring and want a legal light on it, then bring the same light back aboard the big boat. The mount is sold separately for this version, so if you're starting from scratch, plan on grabbing the base that fits where you want to run it.
A few things we've learned from boaters running these. On a RIB or an inflatable that pounds in a chop, add a short lanyard or a zip tie as backup so a hard slam can't bounce the light out of the mount. In salt air, hit the switch and the battery contacts with a little dielectric grease at install. It keeps the switch working crisp through the season instead of getting gummy. And snug the light into the mount firmly, but don't gorilla it down on a thin aluminum rail base, since over-tightening is the main way people crack a plastic mounting point.
What it's not. This isn't a masthead light for a sailboat, and it's too short to serve as a spreader or mizzen light on a larger rig. It's also a battery light, not a hardwired fixture, so it's not the answer if you specifically want something wired to the boat's 12-volt system and switched at the helm. For its intended job, a portable, legal, grab-and-go all-round white light on a small boat, it's hard to beat for the money.
Bottom line, if you run a tender, a kayak, a jon boat, or a small center console and you want a US Coast Guard approved all-round white light you can move around and never have to wire in, the Illuminate 360 is a smart, simple pick. Load a fresh AA, click it into your RAILBLAZA mount, and you're legal and lit for the night.
Key Features
- White LED all-round light visible up to 2 nm, US Coast Guard approved
- Three operating modes: high, medium, and blinking for different visibility needs
- Runs on a single AA battery for 25 to over 200 hours depending on mode
- IP67 rated against dust and brief water immersion
- UV stabilized fiberglass reinforced plastic housing in black resists sun fade
- Compact conical body, 2.36 in diameter by 5 in tall, stows easily
- Light-only head clicks into RAILBLAZA StarPort, SidePort, RIBPort, and Rail mounts
- Portable design transfers between tender and main boat in seconds
Why Buy from NVN Marine
- Authorized RAILBLAZA reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | RAILBLAZA Illuminate 360 All-Round White LED Navigation Light (Light Only) |
|---|---|
| Brand | RAILBLAZA |
| Manufacturer Part Number | 02-5004-11 |
| UPC | 814162020284 |
| Light Color | White LED |
| Diameter | 2.36 in |
| Height | 5 in |
| Shape | Conical |
| Operating Modes | High / Medium / Blinking |
| Battery | AA (not supplied) |
| Battery Life | 25 to over 200 hours |
| Visible Range | Up to 2 nm |
| Housing Material | UV stabilized fiberglass reinforced plastic |
| Housing Color | Black |
| Water and Dust Rating | IP67 |
| Certification | US Coast Guard approved |
| Compatible Mounts | StarPort, SidePort, RIBPort, Rail Mount |
Frequently asked questions
Is the Illuminate 360 US Coast Guard approved?
Yes. It's a US Coast Guard approved all-round white light, visible up to 2 nm in clear conditions, so it works as a legal anchor or all-round white light on small boats.
Does this version come with a mount?
No. This is the light-only version. The head clicks into RAILBLAZA StarPort, SidePort, RIBPort, and Rail Mount bases, which are sold separately. If you don't already have a RAILBLAZA base, plan on adding the mount that fits where you want the light.
What batteries does it use, and are they included?
It runs on a single AA battery, and batteries are not supplied. Load your own AA before you head out.
How long does the battery last?
Anywhere from 25 hours to well over 200 hours on one AA, depending on the mode. Medium stretches runtime the furthest for all-night anchoring, while blinking drains a cell fastest.
Is it waterproof?
It's rated IP67, so it resists dust and handles brief water immersion without flooding. It's built to live outdoors in the marine environment.
What size boat is it for?
It suits tenders, dinghies, kayaks, jon boats, and small powerboats under about 26 feet, used as an all-round or anchor light. It's not tall enough to serve as a masthead, spreader, or mizzen light on a larger sailboat.
What are the operating modes?
Three: high for maximum brightness, medium for long-run all-night use, and blinking for an attention-getting signal.
Can I move it between boats?
Yes. That's the point of the modular design. Put a RAILBLAZA base on your tender and another on the main boat, and you can carry the same light between them in seconds.
How do I keep the switch working in salt air?
Add a little dielectric grease to the switch and the battery contacts at install. It keeps things working crisp through the season instead of getting gummy in the salt.
What is the housing made of?
UV stabilized fiberglass reinforced plastic in black, which holds up to sun exposure season after season without going chalky.
