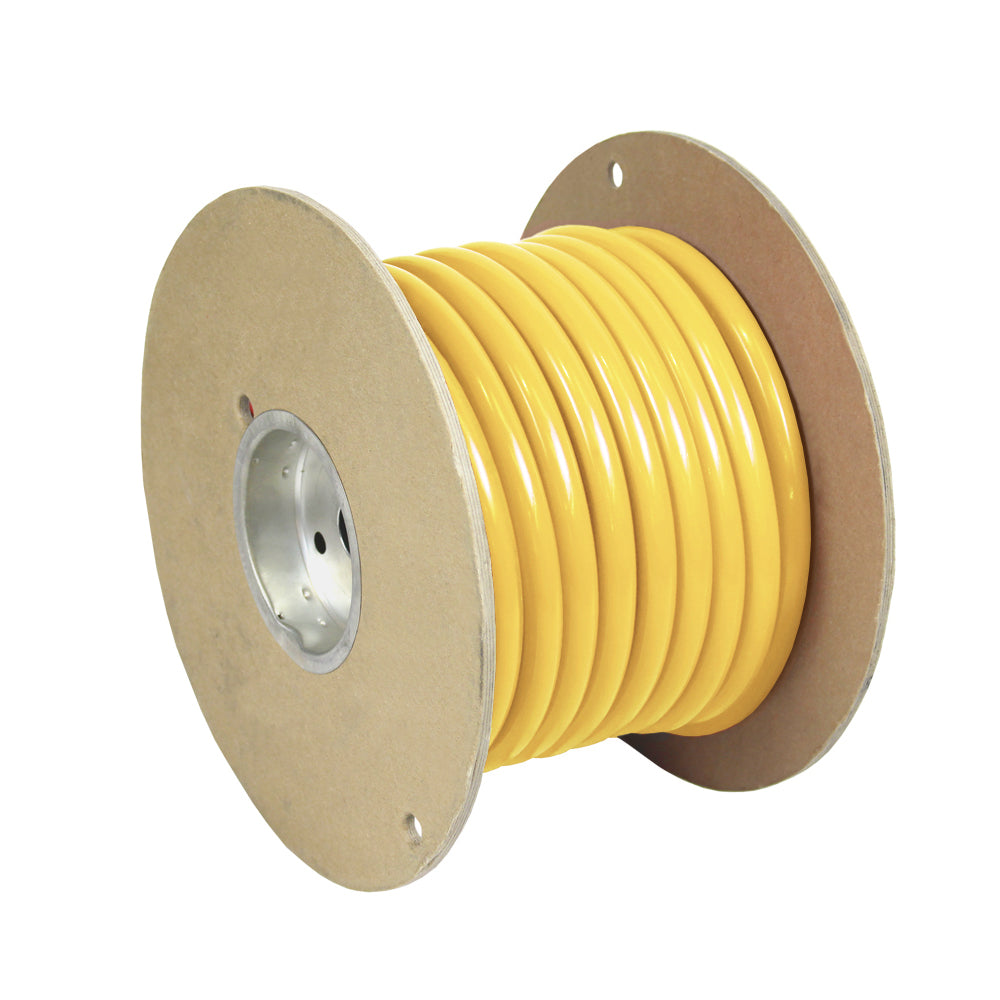

Pacer Yellow 1 AWG Battery Cable - 25'

The Pacer WUL1YL-25 is a 25-foot run of yellow 1 AWG marine battery cable, and it's the kind of wire you want between your battery and the loads that pull real current. Think battery-to-switch runs, starter circuits, windlass feeds, and inverter connections. Pacer builds this in the USA to meet and exceed the strict specs marine electrical work demands, and it carries UL approval, so it holds up to survey and passes an ABYC-minded install without a second look.

Here's what sets marine cable apart from the automotive stuff on the shelf at the parts store. The conductor is Type III tinned copper, annealed and fine-stranded to ASTM B172 Class K. That tin coating is the whole point. Bare copper corrodes fast in a salt environment, and once green creeps up under the jacket you lose conductivity and gain heat. Tinned copper shrugs that off, so the cable you install today is still carrying full current years down the road.

Fine stranding matters too, and not just on paper. A 1 AWG cable is a big conductor, and if it's stiff you'll fight it in every tight corner. We've all pulled cable behind a center-console battery box or through a bulkhead with a sharp turn right where you need it to bend. Pacer's Class K stranding keeps this cable pliable, so it routes clean and takes a bend without kinking. Pre-form the big radiuses before you seat the lugs and it'll drop right in.

The jacket is a flexible, color-coded PVC rated from -20 to 105 degrees C. Yellow is the color, which a lot of riggers use to keep positive and ground runs straight in a crowded panel or engine space. It's a 600V insulation, and the temperature ratings are honest: 105 degrees C dry, 75 degrees C wet, 60 degrees C in oil. That last one matters in a bilge or engine room where a cable might see fuel or oil film. This jacket resists acid, alkali, abrasion, flame, gasoline, oil, and moisture, which covers just about everything a working boat throws at it.

A word on sizing and length. This is a single 25-foot cable, sold on its own. One AWG is a heavy gauge meant for high-current, shorter runs, so match the gauge to your load and your total run length. Long pulls to a bow thruster or a windlass at the far end of the boat can show voltage drop, and if 1 AWG comes up short for your run you may want to step up a size. Twenty-five feet also gives you room to cut several shorter starter or interconnect cables out of one length if that's what your project needs. Measure twice, and don't leave a big coil of excess, since extra length just adds resistance and clutters the run. When in doubt on a long high-current pull, size up rather than down. The heavier gauge costs a little more up front and saves you the headache of pulling wire twice.

Termination is where a lot of battery cable installs go sideways. Do it right the first time. Use a proper hydraulic or heavy ratcheting crimper on quality tinned lugs, then seal each end with adhesive-lined heat shrink so moisture can't wick into the strands. A clean crimp and a sealed lug is the difference between a connection that lasts and one that heats up and fails a year and a half in. Skip the cheap auto-store terminals. They corrode, and they let you down.

Bottom line: if you're wiring battery banks, starters, windlasses, or an inverter and you want cable that's built for salt water and made in the USA, this Pacer 1 AWG is a solid, honest choice. It's the same cable we reach for on our own installs.
