Pacer E200-12 12-Pole Terminal Block 20A 12 AWG
Pacer E200-12 12-Pole Terminal Block 20A 12 AWG — Product description

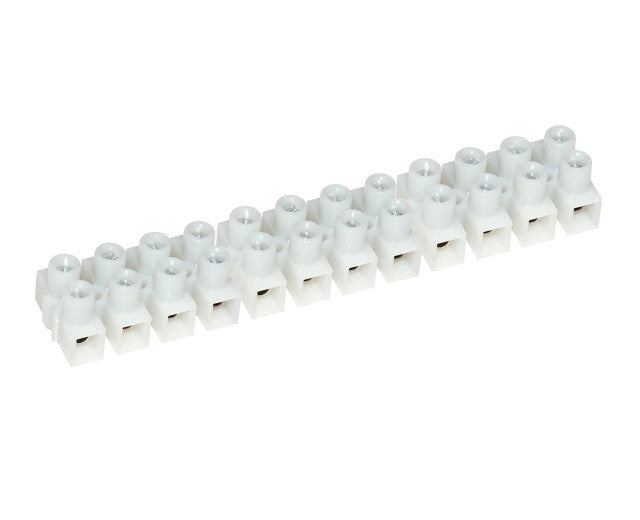

The Pacer E200-12 is a 12-pole, dual-row terminal block for joining individual wires without splicing. Rated at 20 amps and 300 volts, it handles up to 12 AWG on tin-plated brass screw terminals. The nylon housing is white and UL/CSA certified, so it's an easy, clean way to tie in accessory runs at the helm or behind a panel.
When you need to join a bunch of wires cleanly without cutting and splicing, a terminal block like the Pacer E200-12 does the job. It's a 12-pole, dual-row strip with screw terminals on each side, so you land one wire on one side and its mate on the other. Twelve separate circuits, all in one tidy block.
The inserts are tin-plated brass, which holds up to the damp, salty air boats live in. It's rated for 20 amps at 300 volts and takes wire down to 12 AWG, so it's a good fit for accessory runs, lighting circuits, pumps, and electronics feeds behind the dash. The housing is white nylon and carries UL and CSA certification.
We reach for these when we're tidying up a rat's nest of butt connectors behind a panel. Screw each wire down, label the rows, and you've got a junction you can actually trace a year later. Mount it on a flat surface where you can get a screwdriver on both rows. Simple, honest hardware that makes the next wiring job easier.
Key Features
- 12-pole double-row layout joins up to 12 separate wire pairs in one block
- Tin-plated brass inserts resist corrosion in damp, salty marine air
- Rated 20 amps at 300 volts for accessory, lighting, and pump circuits
- Accepts wire down to 12 AWG on screw terminals, no splicing needed
- White nylon housing, UL and CSA certified
Why Buy from NVN Marine
- Authorized Pacer Group reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Pacer E200-12 12-Pole Dual-Row Terminal Block |
|---|---|
| Brand | Pacer Group |
| Manufacturer Part Number | E200-12 |
| UPC | 840248215930 |
| Pole Configuration | 12 Pole Double Row |
| Amperage | 20 Amp |
| Voltage | 300 Volt |
| Wire Gauge | 12 American Wire Gauge (AWG) |
| Terminal Type | Screw Terminal |
| Insert Material | Tin Plated Brass |
| Housing Material | Nylon |
| Color | White |
| Certifications | UL/CSA Certified |
| Connection Type | Connects Individual Wires Without Splice |
Frequently asked questions
What size wire does the Pacer E200-12 accept?
It takes wire down to 12 AWG. That covers most accessory, lighting, and pump circuits on a boat.
How many circuits can I run through it?
Twelve. It's a 12-pole double-row block, so you land one wire on each side of a pole for twelve separate connections.
What's it rated for?
20 amps at 300 volts. Keep your circuit loads under that and you're in good shape.
Is it corrosion resistant?
The inserts are tin-plated brass and the housing is white nylon, both of which hold up well to the damp, salty air on a boat. It carries UL and CSA certification too.
