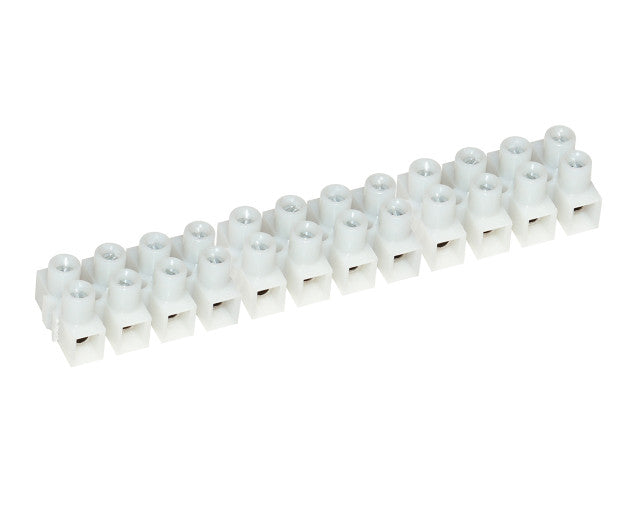

Pacer E150-12 12-Pole Terminal Block, 15A 300V
Pacer E150-12 12-Pole Terminal Block, 15A 300V — Product description
The Pacer E150-12 is a 12-pole dual-row terminal block that joins individual wires without splicing. Rated 15 amps at 300 volts, it takes wire up to 14 AWG on screw terminals, with tin-plated brass inserts and a UL/CSA-certified white nylon body.
The Pacer E150-12 is a 12-pole dual-row terminal block, the kind of part you reach for when you need to join individual wires cleanly without cutting and splicing. Each position uses a screw terminal, so you land a wire, snug it down, and you're done. No crimping, no heat shrink, no guesswork.
It's rated for 15 amps at 300 volts and takes wire up to 14 AWG, which covers most accessory, lighting, and signal circuits on a boat. The inserts are tin-plated brass, so they stand up to damp and salt air a lot better than bare copper. The white nylon body is UL and CSA certified.
Mount it behind the dash, inside a junction box, or anywhere you're consolidating a run of wires. It's a simple, honest part that makes troubleshooting down the road a whole lot easier. Every connection is labeled, visible, and easy to get a screwdriver on.
Key Features
- 12-pole double-row layout gives you 12 separate wire-to-wire connections in one compact block
- Tin-plated brass inserts resist corrosion from salt air and moisture
- Rated 15 amps at 300 volts for accessory, lighting, and signal circuits
- Screw terminals accept wire up to 14 AWG, no crimping or soldering needed
- White nylon housing is UL and CSA certified
Why Buy from NVN Marine
- Authorized Pacer Group reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Pacer E150-12 12-Pole Dual Row Terminal Block |
|---|---|
| Brand | Pacer Group |
| Manufacturer Part Number | E150-12 |
| UPC | 840248215848 |
| Poles | 12 Pole Double Row |
| Insert Material | Tin Plated Brass |
| Amperage | 15 Amp |
| Voltage | 300 Volt |
| Wire Gauge | 14 American Wire Gauge (AWG) |
| Terminal Type | Screw Terminal |
| Color | White |
| Housing Material | Nylon |
| Certification | UL/CSA Certified |
Frequently asked questions
What size wire does the E150-12 accept?
Each screw terminal takes wire up to 14 AWG, which covers most accessory, lighting, and signal runs on a boat.
How many connections does it make?
It's a 12-pole block in a double-row layout, so you get 12 separate wire-to-wire connections in one place.
Is it built to hold up in a marine environment?
The inserts are tin-plated brass, which resists corrosion from damp and salt air better than bare copper, and the housing is nylon. It's UL and CSA certified.
What's the electrical rating?
15 amps at 300 volts per the manufacturer spec.
