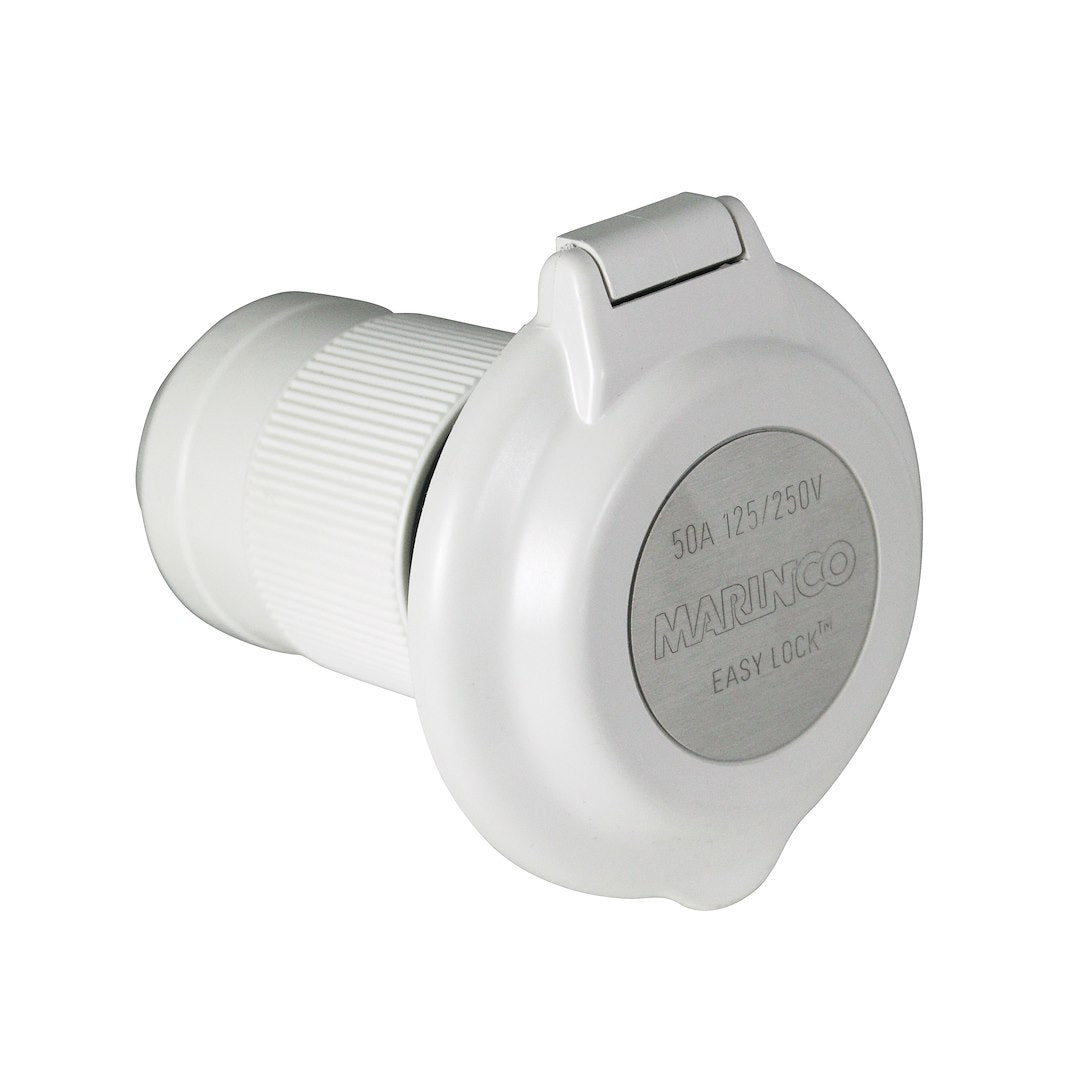

Marinco 6344EL-BRV 50A 125/250V Shore Power Inlet

The 6344EL-BRV is Marinco's 50-amp shore power inlet, rated for 125/250 volts AC. That's the big split-phase service you'll find on larger cruisers, trawlers, and liveaboards that run two legs of 120 volts for air conditioning, a water heater, battery chargers, and a full galley all at once. If your boat has a 50-amp cord and a 50-amp double-pole breaker at the panel, this is the fitting that brings that power through the hull. Step down to a 30-amp inlet and you're constantly juggling loads. This one gives you the headroom to run the boat the way you would at home.

What sets this one apart is the manual power disconnect built right into the inlet. Flip the lever and you cut power at the hull, before it ever reaches your onboard panel. It's a handy safety step when you're plugging or unplugging a hot cord in the rain, or when you want to isolate the boat completely before working on AC wiring. One note from the field. The disconnect lever likes a little lubrication once a season. Boats that sit in warm engine rooms or hot climates can see the mechanism stiffen up if it's ignored, so a shot of dielectric grease on the annual checklist keeps it moving freely.

The rear enclosure is molded from flame-resistant UL94V0 plastic, the same self-extinguishing grade you want anywhere current lives behind a bulkhead. Up front, the white face is contoured to sit close to the hull, and a hinged cap covers the pins when nothing's plugged in. That cap matters more than it looks. It keeps rain, spray, and dock grime out of the contacts, which is where corrosion and arcing usually start. On open flybridges and exposed side decks, the cap and its hinge take a lot of sun, so give them a look each spring and don't be shy about replacing a tired lanyard with a length of paracord so you never lose the cap in a rolly anchorage.

Installation is straightforward if you take your time on the cutout. The contoured housing mounts flush, but it needs a clean, accurate hole. Rush the template and you can warp the rear enclosure or break the seal against the hull, and a leaky inlet is the last thing you want feeding a 50-amp circuit. Bed the flange in a quality marine sealant, and if you've fought water intrusion behind an inlet before, a wrap of butyl tape under the flange is cheap insurance, especially on sailboats that spend real time heeled over. Check your wiring box depth before you commit too. The rear enclosure runs fairly shallow, and a few older boats with deep factory wiring boxes need an extension ring to make everything land right.

On the power side, pair it with a matched 50-amp cordset and twist-lock connector so the pins seat fully. A loose or mismatched connection is where you'll see arcing once you're pulling real current, 30 amps and up. Make sure the dock pedestal and your onboard side are both set up for 125/250-volt split-phase, and confirm there's a 50-amp double-pole breaker upstream. Size that breaker right and you'll avoid the nuisance trips that come from running this service on the wrong protection.

So who's this for? Any boater stepping up to 50-amp service, or anyone replacing a weathered inlet on a mid-size to large cruiser. It's a workhorse fitting, not a gadget. Rig it in cleanly, keep the cap and lever happy with a few minutes of attention each season, and it'll quietly do its job for years. And because it's a genuine Marinco part, it drops right into the 50-amp shore power setup you're probably already running.
