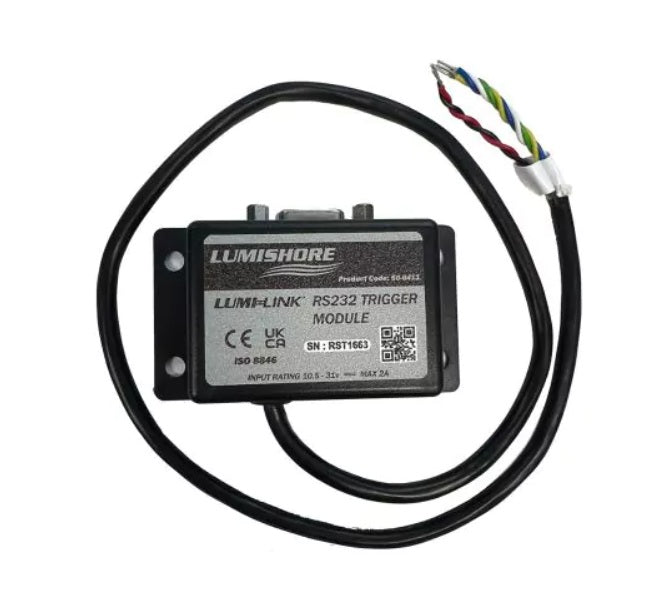

Lumishore LUX RS232 Trigger Module
Lumishore LUX RS232 Trigger Module — Product description
The Lumishore LUX RS232 Trigger Module is the interface that lets an external control device drive your EOS-LUX lighting. It's not a light, it's the translator, taking a command from your helm and firing the right lighting scene on cue. If you've built an EOS-LUX system and want real control, this is the piece that ties it together.
The Lumishore LUX RS232 Trigger Module is the small piece that makes a big lighting setup behave itself. It's an interface module, not a light. Its whole job is to sit between your Lumishore EOS-LUX lighting system and whatever control device you're running at the helm, and translate a command into a lighting event. Push a scene on your controller, and the module tells the lights what to do. That's it, and that's exactly why it matters.
If you've built out an EOS-LUX system, underwater lights, accent lighting, the works, you already know the lights themselves are the easy part. Getting them to fire on cue from an external control system is where a lot of installs stall out. This module is the fix. It gives you a clean RS232 handoff so a compatible control device can trigger color changes, scene recalls, and on/off events without you touching the lights directly. It also means you're not stuck with only the buttons on the light system's own controller. Whatever scene logic your control device supports, the module passes it straight through. On a sportfisher running night trips, that means one button at the console drops the whole boat into a preset lighting scene. No walking the deck flipping switches.
The connection is old-school RS232 serial, and honestly that's a good thing on a boat. It's simple, it's proven, and it doesn't care about network congestion. The module speaks to your EOS-LUX gear and listens for trigger commands from the control side. We've found the cleanest installs keep the serial run short and use shielded cable. RS232 will happily run a fair distance, but on a flybridge with long cable pulls you can start to see the signal get flaky. Keep it tight, keep it shielded, and you won't be chasing gremlins later.
A couple of things are worth knowing before you wire it in. First, on a daisy-chained LUX system, this module wants to be last in the chain. Put it in the middle and the lights can start ignoring color commands, which is a maddening thing to troubleshoot after the fact. Second, ground it properly. In a console packed with a VHF and other electronics, a poorly grounded trigger line can pick up RF and throw phantom triggers, your lights blinking for no reason anyone can see. Tie your ground to a solid point and that goes away. And when it's time for a firmware update, plan on a direct laptop-to-module RS232 connection. It's the reliable way to get an update to take.
Mount it somewhere dry. This lives inside the boat, in a console or an electronics box, not out in the spray. The serial connector doesn't love saltwater, and a season of damp air around an exposed connector can leave you with corrosion and an intermittent trigger. If you do tuck it in near other gear, give the connector a dab of dielectric grease and check it at the start of each season. Most 30 to 40 foot boats have plenty of room for it in the console electronics area, and it doesn't throw off much heat, so it's an easy one to find a home for.
Bottom line, if you're running a Lumishore EOS-LUX setup and you want real control, scenes, automation, triggering from your existing helm gear, this is the module that gets you there. It's not glamorous. It's the quiet part that makes the flashy part work. And for the money, it beats fighting your lighting system every time you want to change a scene. We're an authorized Lumishore dealer, so if you're not sure this is the right piece for your system, give us a shout and we'll help you sort it out before you buy.
Key Features
- RS232 serial interface, a simple and proven connection that ignores network congestion on a busy boat
- Purpose-built for Lumishore EOS-LUX lighting systems, translates external commands into lighting events
- Triggers scene recalls, color changes, and on/off events from a compatible control device at the helm
- Passes through whatever scene logic your control system supports, so one button can set the whole boat's lighting
- Compact and low-heat, fits easily inside a console or electronics box on most 30 to 40 foot boats
- Designed to sit last in a daisy-chained LUX system for reliable color command handling
- Firmware-updatable over RS232 with a direct laptop connection
Why Buy from NVN Marine
- Authorized Lumishore reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Lumishore LUX RS232 Trigger Module |
|---|---|
| Brand | Lumishore |
| Manufacturer Part Number | 010-04446-00 |
| UPC | 847772002661 |
| Category | Lighting |
| Module Type | RS232 Trigger Module |
| Interface | RS232 Serial |
| Compatible Lighting System | Lumishore EOS-LUX |
| Primary Function | Triggers lighting events from external control systems |
| Control Source | Compatible external control device |
| Mounting Environment | Interior console or electronics enclosure (dry) |
| Recommended Cabling | Shielded serial cable, short runs |
Frequently asked questions
What does the LUX RS232 Trigger Module actually do?
It's an interface module. It sits between your Lumishore EOS-LUX lights and an external control device and translates a command into a lighting event, so you can fire scenes, color changes, and on/off from your helm. It isn't a light itself.
What lighting system do I need for this to work?
A Lumishore EOS-LUX lighting system. The module is built specifically to integrate with EOS-LUX, so if that's what you're running, this is what gives you external triggering.
What kind of connection does it use?
RS232 serial. It's simple, proven, and reliable on a boat because it doesn't care about network congestion. For the cleanest results, keep the run short and use shielded cable.
Can it trigger lighting scenes from my helm?
Yes, that's the whole point. A compatible external control device sends a trigger and the module fires the matching lighting event on your EOS-LUX system, from color changes to full scene recalls.
Where should I mount it?
Inside, somewhere dry, like a console or electronics box. Keep it out of the spray. The serial connector doesn't like saltwater and can corrode if it's left exposed to damp air over a season.
Are there any wiring gotchas I should know about?
Two worth remembering. Put the module last in a daisy-chained LUX system or the lights can start ignoring color commands. And ground it well, because a poorly grounded trigger line can pick up RF interference and cause phantom triggers.
Does it work on 12V and 24V systems?
It's used within EOS-LUX systems that run on either. On larger 24V setups, some installers add a regulated 12V feed for a consistent trigger. If you're unsure how your system is wired, ask us and we'll help you spec it.
How do I update the firmware?
Over RS232, with a direct laptop-to-module connection. Updates run through the full chain can be hit or miss, so going direct is the reliable way to get a firmware update to take.
Is this a genuine Lumishore part with a warranty?
Yes. It's a genuine Lumishore module, part number 010-04446-00, and it carries the full manufacturer warranty. We're an authorized Lumishore dealer, so any warranty claim runs through us.
