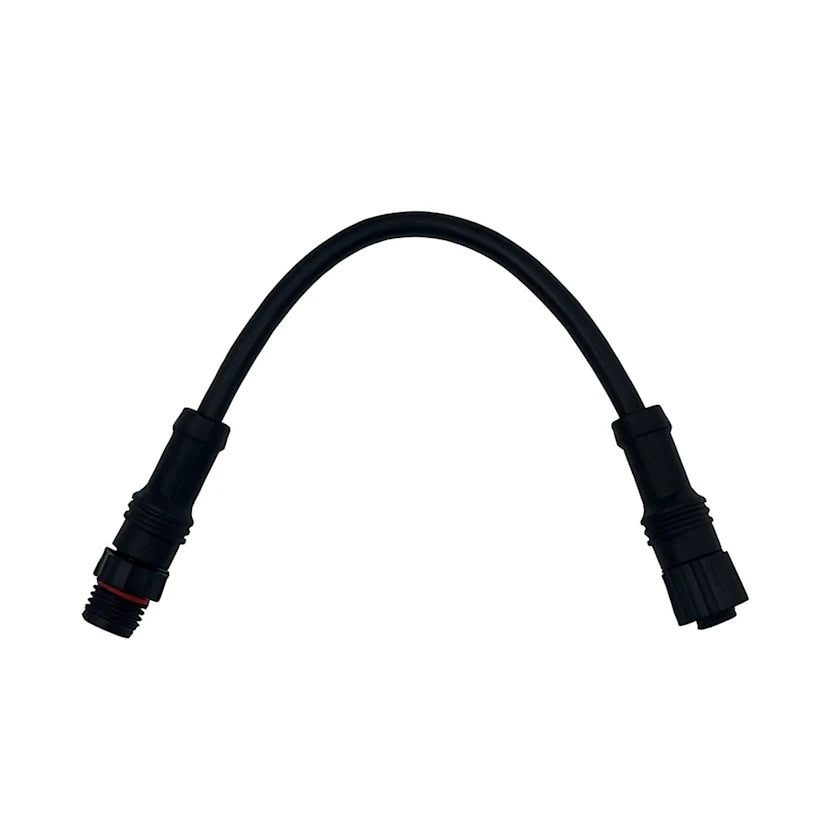

Lumishore 0.2m DMX Cable for EOS-LUX Underwater Lights

The Lumishore 0.2m DMX cable is the short jumper that ties your EOS-LUX underwater lighting system together. It's a small part, but it's the piece that lets the whole chain talk to itself. If you're building out or expanding a Lumishore setup, this is the cable that carries the DMX control signal from one driver module to the next, so every light in the run answers to the same command.

Here's how it fits in. Lumishore runs its color-change and dual-color lights off the EOS-LUX Command Center, and that Command Center sends DMX control data down the line to your LUX modules, strip light drivers, and speaker light drivers. Each unit connects to the next in series, a setup we call daisy-chaining. This 0.2m cable is the link between two units sitting close together. Picture two driver modules mounted side by side on a transom bracket, or a Command Center feeding the first driver right next to it. You don't want a couple feet of cable coiled up behind the panel when eight inches does the job clean.

Lumishore makes this cable in several lengths, and they all join together, so you can build a run that matches your boat instead of forcing your layout around a fixed length. The 0.2m is the tightest of the bunch. It's the right call for adjacent modules and short hops inside a console or behind the helm. For longer pulls, say from a flybridge down to a hull-mounted light, you'd reach for a 1M or 5M and let this short cable handle the close connections. And because a matching DMX cable ships as standard with the EOS light sets, this one makes a smart spare to keep aboard, or the exact part you need when a chain grows by one more driver.

On the light side, this cable carries signal to Lumishore's full-color change and dual-color underwater lights, including the THX and TIX families, along with the strip light and speaker light drivers. So whether your build is a simple pair of transom lights or a full underwater and accent package, the DMX chain is what keeps color and control synced across every fixture. This little cable is one link in that chain.

The cable is marine-grade and plug-and-play, with a connector on each end that seats into the Lumishore modules without cutting or crimping. You match the connectors, seat them fully, and move to the next link. That's the whole idea behind the EOS-LUX approach. It's a lighting system you can build in an afternoon instead of soldering up a custom harness.

A few things we've picked up from installers out there. Keep your connections weather-smart. A dab of dielectric grease on the connector pins goes a long way in saltwater, since data pins on any DMX run can corrode over a season if they're left dry. Mind the polarity at the connector when you're working a tight bend, because reversing the data pins is the most common reason a fresh chain won't light up. And if you're routing near the engine harness, a short cable like this actually helps, because less length means less chance of picking up electrical noise from nearby wiring.

Two more notes worth knowing. Stick with genuine Lumishore DMX cables and drivers through the whole chain. The EOS-LUX system addresses each light over that DMX line, and mixing in an off-brand data cable is a common cause of lights that won't take their address or that flicker. Speaking of flicker, most chains want a proper termination at the last light in the run. So if you add a driver and the tail end of the chain starts acting up, that's the first thing to check. It's a small thing to get right, and it saves you pulling panels apart later to chase a gremlin.

Bottom line, this isn't a glamorous part. But it's the one that makes a Lumishore install look finished instead of improvised. Whether you're rigging a 25 foot center console or adding a driver to an existing setup on a bigger boat, the 0.2m DMX cable keeps the short connections tidy and the signal solid.
