Lowrance Eagle Eye 9 Live Fishfinder | C-MAP Inland

Eagle Eye is Lowrance's most accessible way to get live sonar on your boat, and the 9-inch model is the one that gives you room to actually see what's going on down there. Everything runs off a single transducer. No separate black box, no extra module to find space for. You get Live Forward, Live Down, CHIRP sonar, and DownScan Imaging with FishReveal, all from one transducer feeding one clean screen.

Here's what that means on the water. Live Forward shows structure and fish out ahead of the boat, so you can line up a cast before you ever get there. Live Down shows depth and what's directly beneath you in real time, so you can drop a lure right onto a fish and watch it react. That's the whole appeal of live sonar, and it delivers the same live resolution Lowrance built into ActiveTarget 2, just in a more focused down and forward view that's easier to read while you're fishing.

The CHIRP side gives you high-resolution looks at individual fish, even when they're tucked in close to the bottom or packed into a tight school. DownScan Imaging fills in the picture with photo-like images of rocks, timber, and other structure below the hull. FishReveal pulls those two together so fish hiding in cover actually show up instead of blending into the structure. And because the sonar is autotuning, you're not buried in menus trying to dial in settings. It gets you a usable picture from the start.

Charting is handled by preloaded C-MAP US Inland maps covering more than 17,000 American lakes. If you fish water that isn't mapped well, or you just want better detail on your home lake, Genesis Live records your own custom half-foot contour maps in real time as you idle around. The microSD slot handles software updates, Genesis recordings, and chart add-ons down the road.

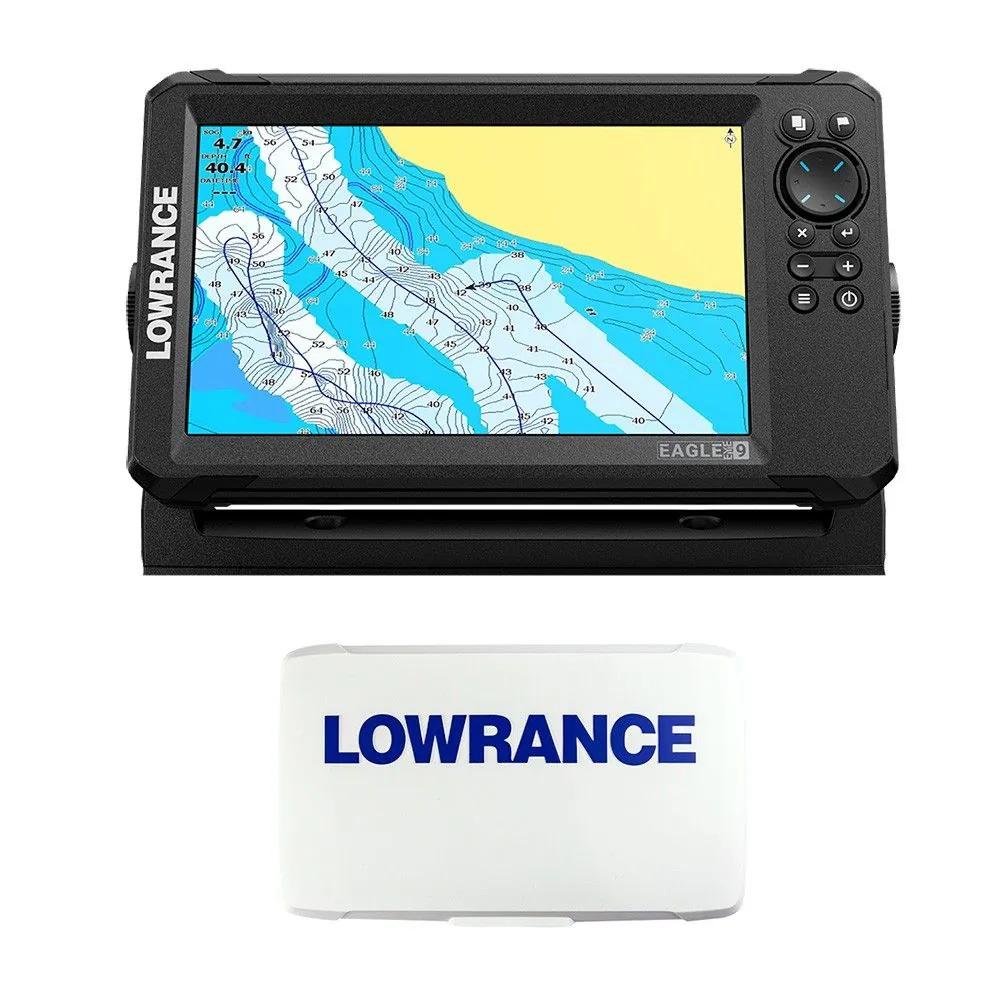

The display is a 9-inch IPS panel, 1024 by 600 resolution, and it runs 1000 NITS of brightness. That matters in a boat. You can read it in direct midday sun, and the IPS panel stays visible from off angles and through polarized sunglasses instead of blacking out on you. The new imaging color palettes bump up the contrast so returns are easier to pick apart at a glance.

Install is about as painless as sonar gets. The twist-lock connector system lets you drop the transducer in and lock it down without fighting threaded collars, and the unit mounts on the included gimbal bracket at the dash or on the included trolling motor mount up on the bow. That makes it a genuinely good fit for bass boats, aluminum fishing rigs, and kayaks where console space is tight and you want the live view right where you're casting from. Power draw is modest at 650 mA on 12 volts, so it won't tax a small house battery, and it's rated IPX7 waterproof with the card door closed.

A few honest notes. This is a dedicated fishing machine built around live sonar and inland charts, so it's at its best on lakes and rivers rather than as a big-boat offshore nav plotter. The included charts are US Inland, so if you need coastal or international coverage you'll be adding cartography. And the box includes the sun cover, transducer, power cable, gimbal bracket, trolling motor mount, replacement twist locks, and corner clips, so you've got what you need to get fishing out of the box. Backed by a one-year warranty with up to four additional years of upgrade coverage available. If you've wanted to try live sonar without wiring in a separate module, this is a straightforward way in.
