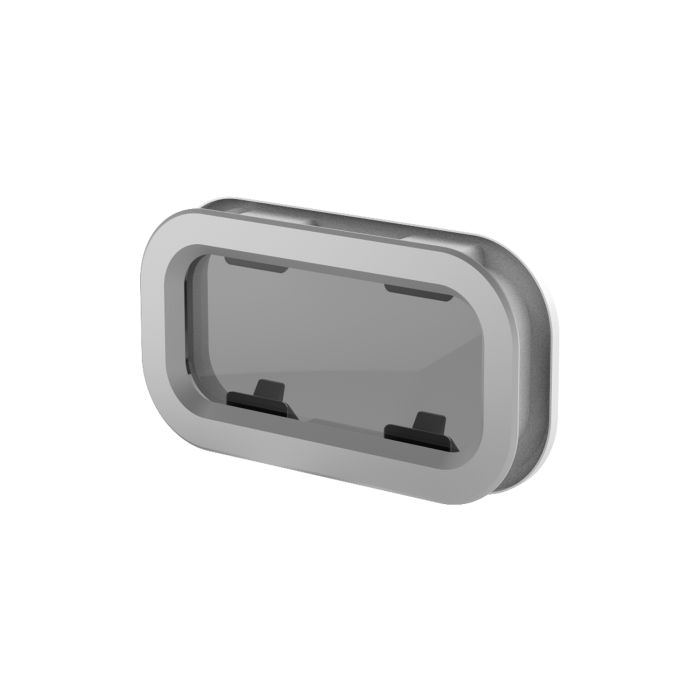

Lewmar Size 0 Opening Portlight, Smoke Acrylic, Silver Frame

The Lewmar Size 0 opening portlight is the small, tidy port you reach for when you want a little light and real airflow in a cabin, head, or galley without cutting a big hole in the boat. It's part of Lewmar's standard rectangular line, and it's about as straightforward as marine glass gets. Smoke gray acrylic lens, silver aluminum frame, and a clip handle that swings it open and locks it shut. That's the whole story, and for most boats that's exactly what you want.

Let's talk fit first, because that's what matters before anything else. This is the Size 0, the smallest in the rectangular range. It drops into a cut-out of 11-15/16 inches wide by 6-1/8 inches high. The overall frame measures 12-11/16 inches wide by 6-15/16 inches high, so it only overhangs the hole by a small margin on each side. Measure your existing opening twice before you order. If you're replacing a tired old port, pull the old one out and measure the actual hole, not the old frame.

The lens is smoke gray acrylic. That tint does two useful things. It knocks down glare and heat gain through the port on a sunny day, and it gives you a bit of privacy at the dock so people on the finger pier aren't looking straight into your bunk. The frame is aluminum in a silver finish, which keeps the weight down and looks clean against both white gelcoat and darker hull sides.

Because it's an opening port, you get ventilation, not just light. The clip handle swings the lens in and dogs it closed against the seal when you want it shut. A removable flyscreen comes in the box, so you can leave the port cracked on a warm night and keep the bugs on the outside where they belong. There's also a white ABS trim ring for the inside, which hides the cut edge of the cabin side and gives you a finished look from the bunk.

Where does it go? Coach roof, cabin sides, cockpit coamings, transom. Anywhere you'd want a compact source of light and air. On a smaller cruiser or a pocket sailboat, a pair of these in the main cabin makes a real difference in how the boat breathes at anchor. On a powerboat, they're handy in the head or a forward berth. Just remember the port needs a reasonably flat, solid mounting surface. If your cabin side is thin or cored, plan on a backing ring or a bit of extra reinforcement so you're not relying on the skin alone to hold the fasteners.

A quick word on the install, because this is where ports either stay dry for twenty years or start weeping the first wet season. Get the cut-out square and clean. Even a small amount of out-of-square at the corners can leave a gap the seal can't bridge, and that's where the drips start. Bed the frame in butyl tape rather than silicone. Butyl stays flexible, it doesn't shrink, and it lets you snug the screws down over a day or two without the bond letting go. The port ships with twelve M5 by 25 mm screws, so your fasteners are handled. Snug them evenly in a cross pattern, wait a bit, then come back and snug them again once the butyl has spread.

Is this the fanciest port on the water? No, and it doesn't try to be. It's a clean, well-built, sensibly priced opening portlight from a company that's been making deck hardware since 1946. If you want light, air, and a bug screen in a compact rectangular port, and you want it to actually seal and last, the Size 0 does the job without drama. We keep the common Lewmar spares moving too, so if you ever need a replacement seal or handle down the road, we can help you sort it.
