Lenco Pro Control Auto Trim Tab Kit, SD Pro 12V, Set of 2
Lenco Pro Control Auto Trim Tab Kit, SD Pro 12V, Set of 2 — Product description

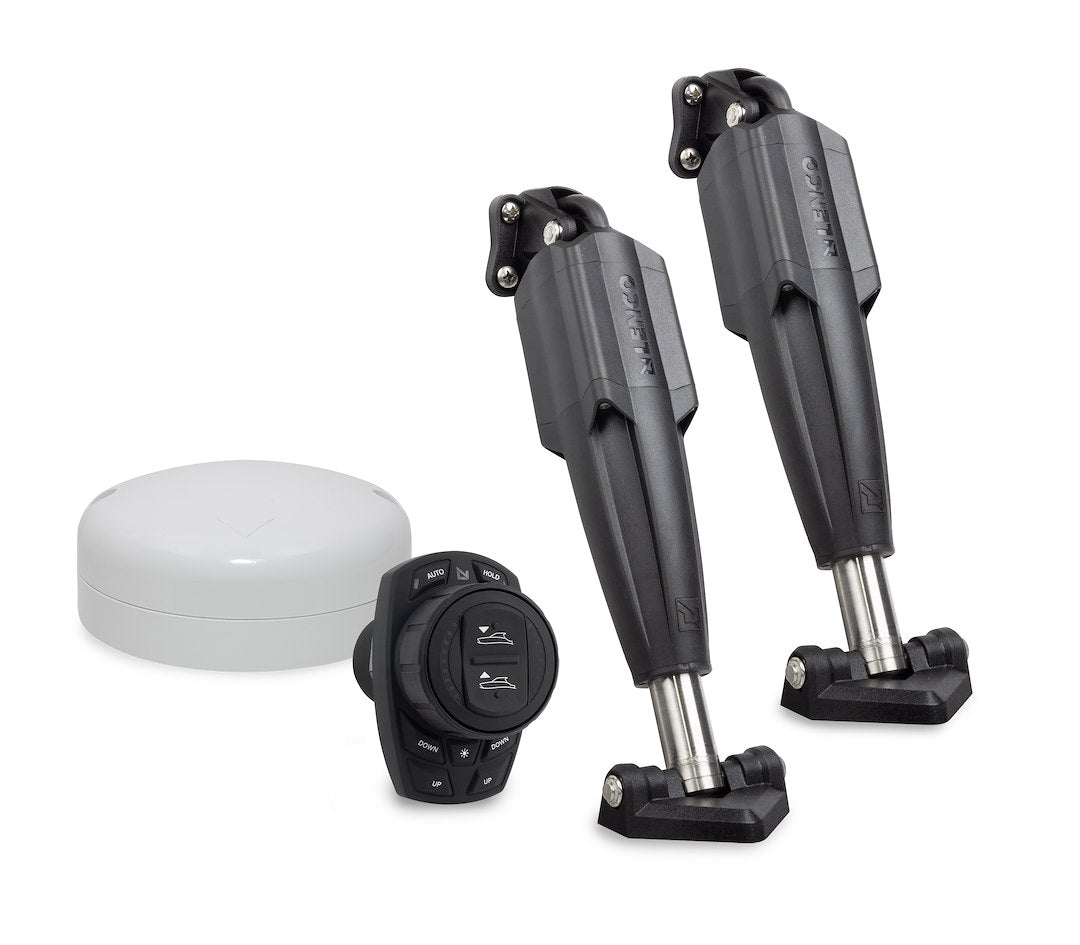

Lenco's Pro Control Auto trim tab system pairs two SD Pro actuators with an IMU that levels your boat automatically. It's a complete 12 volt kit, set of two, with the keypad, cables, Deutsch connectors, and hardware you need for a standard two-tab transom install.
This is Lenco's Pro Control Auto trim tab system, built around a pair of SD Pro actuators with a 2-1/4 inch stroke and a 10 inch overall length. It runs on 12 volt power and ships as a complete set of two, so you've got everything for a standard two-tab install on the transom.
What sets the Auto version apart is the Pro Control Auto IMU. It reads your boat's running attitude and trims the tabs for you, holding a level, efficient angle without you constantly working the keypad. You still get the Pro Control keypad for manual override whenever you want it.
The kit comes complete: power actuator cables, network cables, Deutsch connectors, mounting brackets, and mounting hardware. The Deutsch connectors mean clean, sealed plugs that hold up out there. Whether you're rigging a new boat or upgrading an older manual setup, this is the full package. It's a 12 volt system, so confirm your boat's electrical setup before you wire it in.
Key Features
- SD Pro actuators with a 2-1/4 inch stroke and 10 inch overall length for a standard transom install
- 12 volt operation, wired in with the included power actuator cables and network cables
- Pro Control Auto IMU reads the boat's attitude and levels the tabs automatically for an efficient running angle
- Pro Control keypad gives you manual trim override whenever you want it
- Ships as a complete set of 2 with Deutsch connectors, mounting brackets, and mounting hardware
Why Buy from NVN Marine
- Authorized LENCO reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | SD Pro Type; 2-1/4 Inch Stroke Length; 12 Volt; 10 Inch Overall Length; Set Of 2; With Pro Control Auto IMU/ Pro Control Keypad/ Power Actuator Cables/ Network Cables/ Deutsch connectors/ Mounting Brackets/ Mounting Hardware |
|---|---|
| Brand | LENCO |
| Manufacturer Part Number | 15221-108 |
| UPC | 874847009331 |
| Actuator Type | SD Pro Type |
| Stroke Length | 2-1/4 Inch |
| Voltage | 12 Volt |
| Overall Length | 10 Inch |
| Quantity | Set of 2 |
| Control System | Pro Control Auto |
| Included Components | Pro Control Auto IMU, Pro Control Keypad, Power Actuator Cables, Network Cables, Deutsch Connectors, Mounting Brackets, Mounting Hardware |
Frequently asked questions
How many trim tabs does this kit cover?
It's a set of two actuators, one per tab, so it covers a standard two-tab transom install. The box includes both actuators plus the Pro Control Auto IMU, keypad, cables, connectors, and mounting hardware.
What does the Pro Control Auto IMU do?
The IMU is what makes this the Auto version. It senses the boat's running attitude and adjusts the tabs automatically to hold a level, efficient angle, so you're not constantly trimming by hand. The included keypad still lets you take manual control.
What voltage does this system run on?
It's a 12 volt system. Confirm your boat's electrical setup is 12 volt before you wire it in.
What's the actuator stroke and length?
Each SD Pro actuator has a 2-1/4 inch stroke length and a 10 inch overall length.
What connectors does it use?
It uses Deutsch connectors, which are sealed, weatherproof plugs. The power actuator cables and network cables are included in the kit.
