Lenco Pro Control Auto Trim Tab Actuator Kit, 12V, Set of 2
Lenco Pro Control Auto Trim Tab Actuator Kit, 12V, Set of 2 — Product description

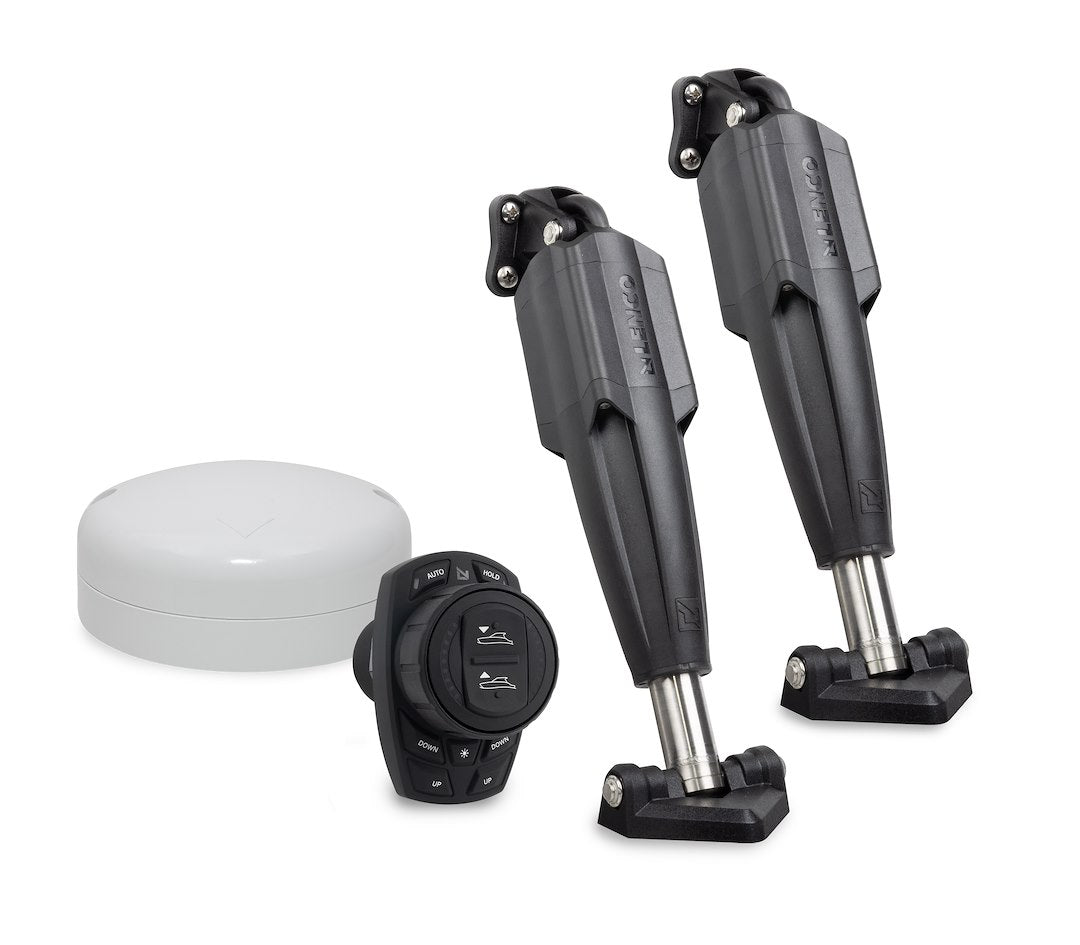

Lenco's Pro Control Auto package turns your trim tabs into a hands-off system. Two SD Pro actuators, one ram per tab, run off 12 volts while the Pro Control Auto IMU reads the boat's attitude and levels you out automatically. It ships as a complete set of two with the keypad, cables, Deutsch connectors, and all the mounting hardware.
This is Lenco's Pro Control Auto trim tab package, built to take the guesswork out of running your boat flat. You get two SD Pro actuators, one ram per tab, driving off a 12-volt system. The Pro Control Auto IMU reads how the boat's sitting and trims the tabs for you, so you're not constantly reaching for the switch as speed and load change.
Each actuator has a 2-1/4 inch stroke and an 11-1/2 inch overall length. The kit ships as a set of two with everything you need to wire it in: the Pro Control keypad, power actuator cables, network cables, Deutsch connectors, mounting brackets, and mounting hardware. The Deutsch plugs keep the connections sealed and corrosion-free, which matters when it all lives down near the bilge.
It's a solid pick for a repower or a fresh rigging job where you want automatic leveling without piecing the system together yourself.
Key Features
- SD Pro actuators, one ram per tab: a two-actuator set sized for a standard dual-tab install
- 2-1/4 inch stroke, 11-1/2 inch overall length: compact enough for tight transom and bilge spaces
- 12-volt Pro Control Auto IMU: automatically levels the boat as speed and load change
- Deutsch connectors throughout: sealed, corrosion-resistant plugs for a clean marine wiring job
- Complete kit: keypad, power and network cables, mounting brackets, and hardware all included
Why Buy from NVN Marine
- Authorized LENCO reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | SD Pro Type; 2-1/4 Inch Stroke Length; 12 Volt; 11-1/2 Inch Overall Length; Set Of 2; With Pro Control Auto IMU/ Pro Control Keypad/ Power Actuator Cables/ Network Cables/ Deutsch connectors/ Mounting Brackets/ Mounting Hardware |
|---|---|
| Brand | LENCO |
| Manufacturer Part Number | 15222-108 |
| UPC | 874847009324 |
| Actuator Type | SD Pro |
| Stroke Length | 2-1/4 Inch |
| Overall Length | 11-1/2 Inch |
| Voltage | 12 Volt |
| Ram Configuration | Single Ram Per Tab |
| Quantity | Set of 2 |
| Control System | Pro Control Auto IMU |
| Included Components | Pro Control Auto IMU, Pro Control Keypad, Power Actuator Cables, Network Cables, Deutsch Connectors, Mounting Brackets, Mounting Hardware |
Frequently asked questions
What comes in this Lenco kit?
It's a set of two SD Pro actuators plus the Pro Control Auto IMU, the Pro Control keypad, power actuator cables, network cables, Deutsch connectors, mounting brackets, and mounting hardware. It's a complete automatic trim tab control package.
What does the Pro Control Auto IMU do?
The IMU senses the boat's attitude and adjusts the trim tabs automatically to keep you running level, so you don't have to keep working the keypad as your speed and load change.
What are the stroke and length of the actuators?
Each actuator has a 2-1/4 inch stroke and an 11-1/2 inch overall length, and the system runs on 12 volts.
How many actuators are included?
Two. It's a set of two, one ram per tab, which covers a standard port-and-starboard trim tab setup.
Are the connections sealed?
Yes. The kit uses Deutsch connectors, which are sealed against water and corrosion. That's a good thing, since trim tab wiring usually lives down near the bilge.
