LENCO Complete 4" x 14" Hybrid Trim Tab Kit, 12V
LENCO Complete 4" x 14" Hybrid Trim Tab Kit, 12V — Product description
The LENCO complete hybrid trim tab kit gives 16 to 30 foot boats a full auto-leveling setup out of one box. You get two 4 inch by 14 inch electropolished stainless tabs, two SD Pro actuators, the Pro Control Auto IMU, a keypad, and every cable and bracket you need to rig it up.
This is the full LENCO package for boats in the 16 to 30 foot range with an 11 inch transom height. It's a hybrid trim tab kit, meaning the SD Pro actuators bolt right to the transom in a standard mount and drive a pair of 4 inch by 14 inch tabs. The tabs are electropolished stainless steel, so they shrug off salt and keep looking sharp season after season.
What makes this a complete kit is the Pro Control Auto IMU. It reads your boat's attitude and trims the tabs automatically to keep you level, so you're not constantly fiddling with the keypad in a following sea. And when you do want manual control, the Pro Control keypad is right there at the helm. Everything runs on 12 volt.
In the box you'll find both SD Pro actuators, the Auto IMU, the keypad, power actuator cables, network cables, the Deutsch connectors, and all the mounting brackets and hardware. It's a clean install for a boat that porpoises or runs bow-high under power.
Key Features
- 4 inch length by 14 inch width tab size, sized for boats from 16 to 30 feet

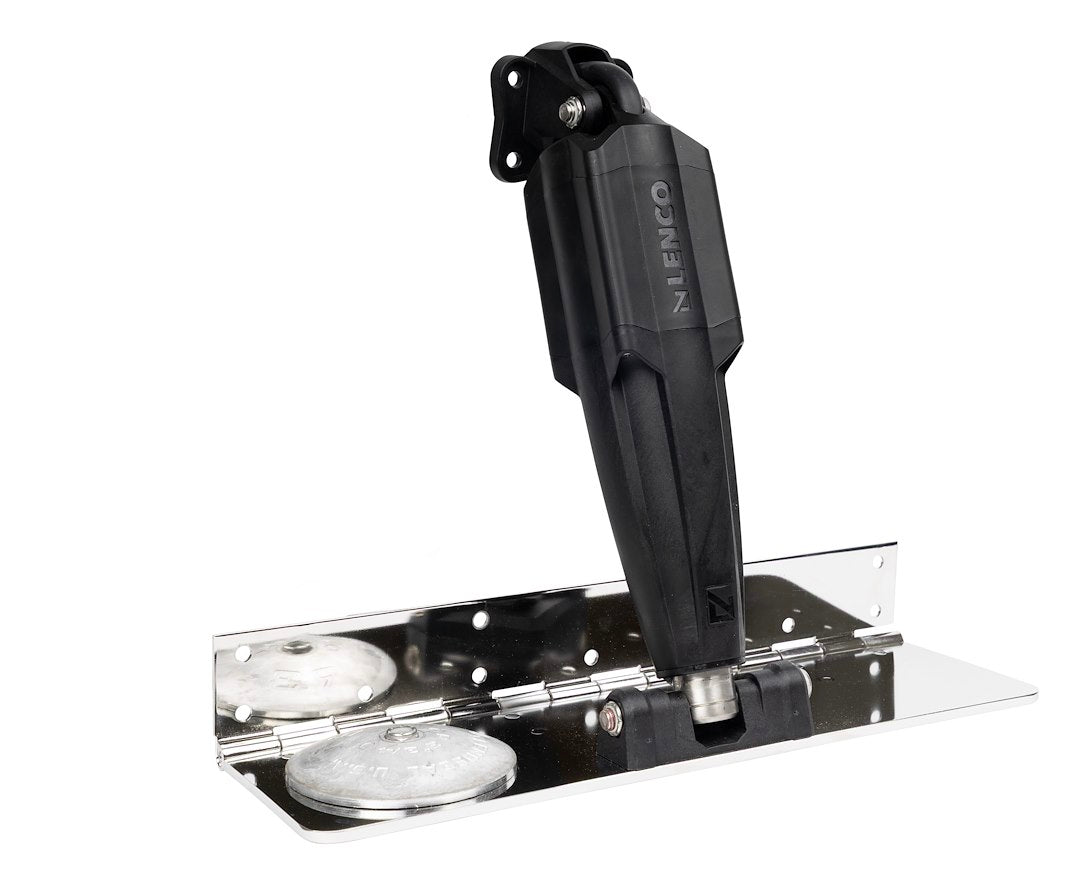

- Two SD Pro actuators with 10.5 inch actuator length and standard transom mount
- Pro Control Auto IMU trims automatically to keep the boat level underway
- Electropolished stainless steel tabs stand up to salt water
- Complete kit: keypad, power and network cables, Deutsch connectors, brackets, and hardware included
Why Buy from NVN Marine
- Authorized LENCO reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | LENCO Complete 4" x 14" Hybrid Trim Tab Kit |
|---|---|
| Brand | LENCO |
| Manufacturer Part Number | 12447-108 |
| UPC | 874847009607 |
| Boat Length Range | 16 to 30 feet |
| Transom Height | 11 inches |
| Tab Size | 4 inch length x 14 inch width |
| Hinge Height | 2 inches |
| Actuator Length | 10.5 inches |
| Mount Type | Standard Mount Actuator |
| Voltage | 12 Volt |
| Material | Electro Polished Stainless Steel |
| Included Components | Two SD Pro Actuators, Pro Control Auto IMU, Pro Control Keypad, Power Actuator Cables, Network Cables, Deutsch Connectors, Mounting Brackets, Mounting Hardware |
Frequently asked questions
What size boat is this trim tab kit for?
It's built for boats from 16 to 30 feet with an 11 inch transom height. The 4 inch by 14 inch tab size suits that range well.
Does this kit trim the tabs automatically?
Yes. The included Pro Control Auto IMU reads the boat's attitude and adjusts the tabs to keep you level. You can also run them manually from the Pro Control keypad.
What's included in the box?
Two SD Pro actuators, the Pro Control Auto IMU, the Pro Control keypad, power actuator cables, network cables, Deutsch connectors, and all mounting brackets and hardware.
What voltage does this system run on?
The whole system runs on 12 volt.
