Johnson Pump F5B-9 Service Kit 09-45808

When a Johnson Pump F5B-9 starts losing its prime or the temperature needle creeps up on a hot run, the flexible impeller spinning inside that pump is almost always the reason. This service kit, part 09-45808, carries the wear parts you need to bring that raw-water pump back to full flow without buying a whole new pump. You get the impeller, the shaft seal, a fresh gasket and o-ring, and a new end cover screw, all matched to the F5B-9 body. It's the difference between an afternoon at the dock with a screwdriver and a much bigger bill.

The F5B-9 is a flange-mounted engine cooling pump. It's the part that pulls raw water, seawater or lake water, through the cooling circuit so your engine doesn't cook itself. Because that impeller runs against a cam inside the housing every second the engine turns, it's a consumable. Rubber vanes flex, take a set, and eventually crack or shed their tips. When that happens flow drops off, and a pump that can't move water is a pump that lets your engine overheat. Rebuilding it on a schedule is cheap insurance.

How do you know it's time? Watch for the obvious signs. The engine runs hotter than it used to, the tell-tale stream out the back gets weak or sputters, or the pump takes longer to prime after you launch. Sometimes you'll spot a little water weeping from the pump face, which points to a tired gasket or seal. If your boat has been sitting over the winter, the impeller may have taken a permanent set against the cam, and it's smart to replace it before the first trip rather than find out on the water. A season or two on an impeller is normal life. Pushing it to three or four is asking for a tow.

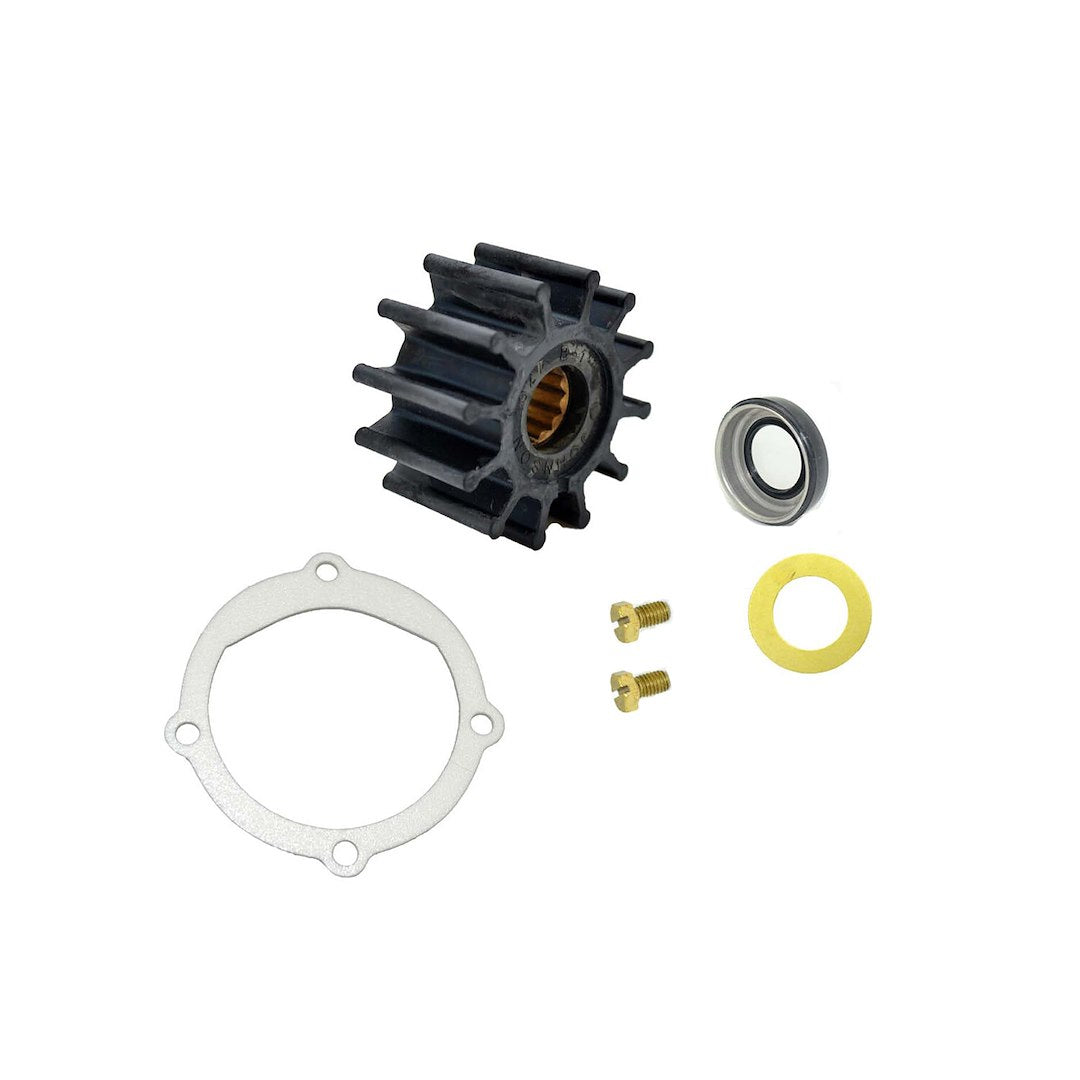

Here's what's in the kit and why each piece matters. The flexible impeller (09-1027B) is the heart of it, the neoprene wheel that actually moves the water. The seal (0.2233.25 / 0.2233.001) rides on the shaft and keeps raw water from working its way back into the drive end. The gasket and o-ring (01-45315) reseal the end cover so the pump holds prime and doesn't weep at the face. And the end cover screw (01-46794-12) replaces the one fastener that always seems to corrode or strip after a few seasons in salt air. Swap them together and the pump comes back sealed all the way around, not just where you can see.

A few notes from the bench. Never run one of these pumps dry, even for a couple of seconds. Without water for lubrication the impeller vanes overheat and shred almost instantly, and then you're doing this job again. When you pull the old impeller, count the vanes. If any are missing, they went downstream into the cooling system and you'll want to find them before they block a heat exchanger. Give the new impeller a smear of pump grease or a little dish soap before it goes in, seat the o-ring clean in its groove, and snug the end cover screws down evenly so the cover pulls flat. Even pressure is what stops the weeping.

Who's this for? Anyone running an inboard or sterndrive cooled by a Johnson Pump F5B-9 who'd rather do a twenty-minute impeller service in the slip than get towed in. It's a genuine Johnson Pump kit, so the impeller diameter, spline count, and seal size are already right for the F5B-9. No measuring, no cross-referencing, no hoping the generic one fits. Keep one in the spares box and you'll never be the boat that overheated on the nicest day of the year.
