Johnson Pump 09-819B F8 Neoprene Impeller Kit

The Johnson Pump 09-819B is the replacement neoprene impeller kit for the F8 raw water pump, and it's the part that keeps seawater moving through your engine's cooling system. If your temperature gauge has been creeping up or the stream out the exhaust has gone weak, a worn impeller is the first thing to check. This kit gets you back to full flow.

Here's how a flexible impeller works. The neoprene vanes flex as they pass the cam inside the pump housing, drawing raw water in on one side and pushing it out the other. It's a simple, self-priming design that's been cooling marine engines for decades. But those vanes take a beating. They run against the housing every second the engine is on, and over a season they lose their spring, crack at the roots, or shed tips that lodge downstream in the heat exchanger. When that happens, flow drops and the engine runs hot.

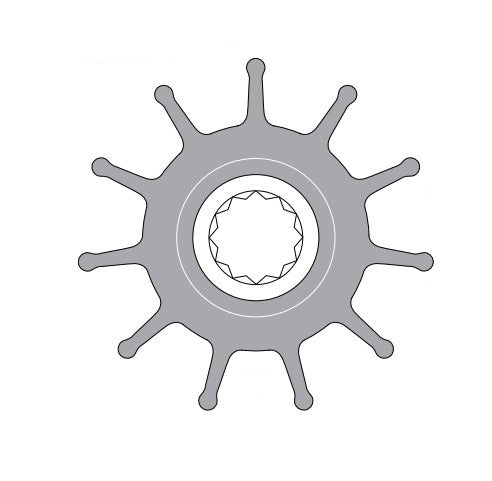

This impeller measures 3.74 inches across the outer diameter and 2.48 inches wide, with inner splines that key onto the F8 pump shaft. Those numbers matter. A close-but-not-exact clone can sit too tight in the housing and tear early, or too loose and lose its prime. This is the genuine Johnson Pump part sized for the F8, so it drops in the way the factory intended.

Neoprene is the standard vane material for engine cooling on raw water. It handles seawater and the normal grit that comes with it, and it's the right choice for the vast majority of small marine diesels that run the F8 pump. If your cooling water is regularly contaminated with oil or fuel, neoprene can swell over time, but for clean raw water cooling it's exactly what you want.

Not sure the F8 is your pump? It's one of Johnson Pump's F-series flexible impeller pumps, a bronze-bodied engine cooling pump you'll find belt-driven or gear-driven off the front of many small and mid-size marine diesels. Check the pump body or your engine manual for the F8 designation, and match the impeller by the outer diameter and width before you order. The 3.74-inch OD and 2.48-inch width with inner splines are the fingerprints of this one.

A few install notes from folks who've done this a hundred times. Never seat a dry impeller. Coat the vanes and splines with a light film of glycerin or silicone grease before you slide it in, so the neoprene doesn't tear or burn during that first dry spin before water reaches the pump. Fold the vanes in the direction of rotation as you press it home. And if the old impeller came out missing tips, chase them down in the heat exchanger before you call the job done, because a lodged tip will choke flow just like a bad impeller.

While you've got the pump open, take thirty seconds to inspect the shaft. Inner spline wear speeds up if the engine has ever run dry, even for a few seconds, and a grooved or rounded shaft will chew through a fresh impeller fast. If the splines look worn, sort the shaft out before you spend money on impellers you'll only kill. Same goes for the housing. A corroded or scored F8 housing runs a new impeller tight and hot, and you'll be back in there in a hundred hours. A quick clean-up of the bore pays off.

Plan on replacing the impeller at least once a season if you run in saltwater, and always after any episode where the engine ran dry, even briefly. It's cheap insurance against an overheat that can cost you a head gasket or worse. Keep a spare aboard too. An impeller is the kind of part that fails at the worst possible time, and a spare kit in the box has saved more than one weekend.

Watch for the early warning signs so you're not caught out. A slow climb in coolant temperature, less water than usual pulsing out the exhaust, or a new whine from the pump all point at the impeller. Catch it early and it's a dock-side swap. Ignore it and you're looking at a boil-over offshore. The kit is a single neoprene impeller for the F8 pump, so pair it with a fresh cover gasket and an impeller puller and the swap takes most people about twenty minutes at the dock.
