Johnson Pump 09-45582 Service Kit for F9B-3600/F9B-5600

If you run a Johnson F9B-3600 or F9B-5600 engine cooling pump, this is the box you want on the shelf before spring commissioning. The 09-45582 service kit gathers every wear part that goes soft, brittle, or worn in a raw water pump into a single package. One part number, one order, and you're set for a full rebuild instead of chasing an impeller here and a gasket there.

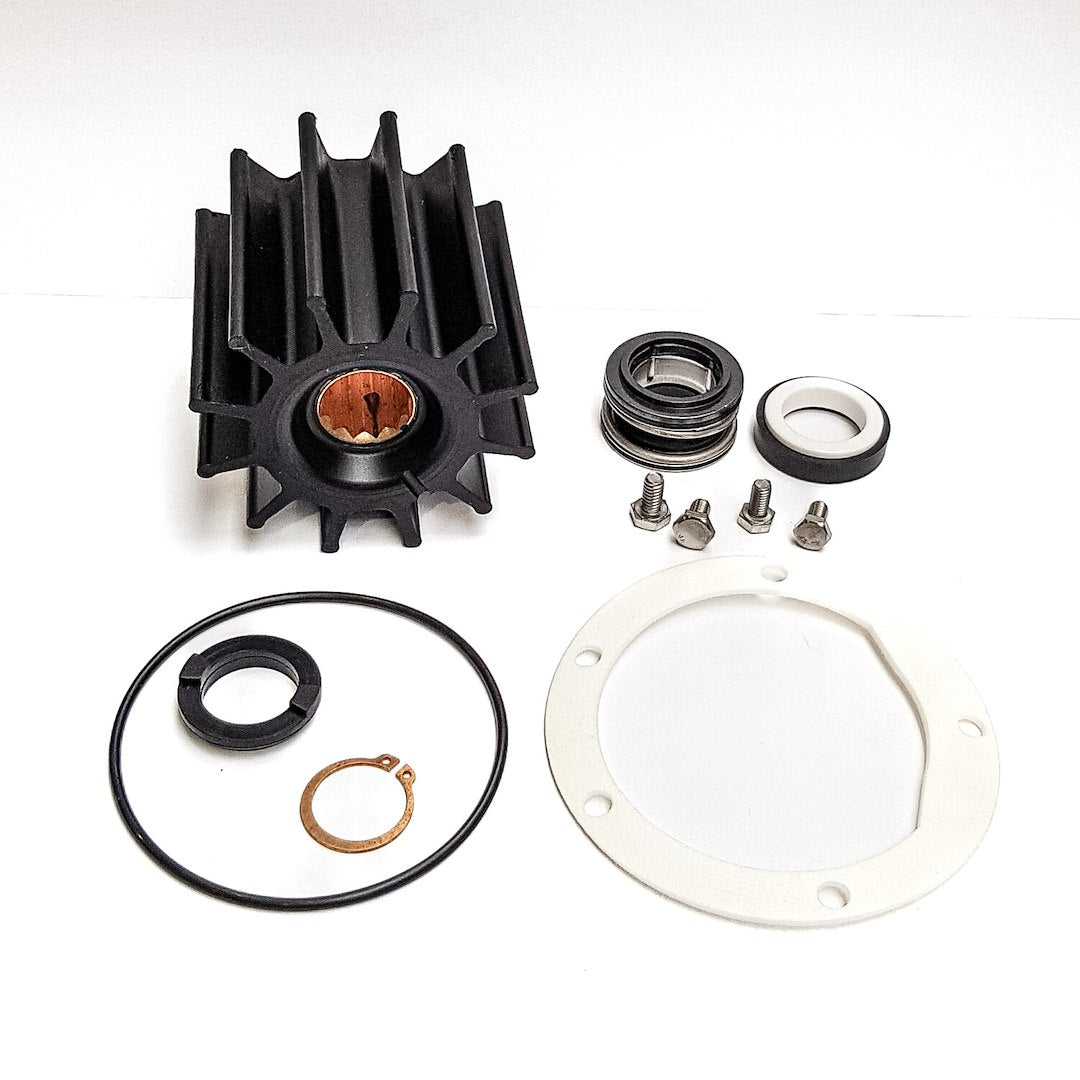

Here's what's inside. A genuine 09-814B neoprene impeller, the high pressure vane design these clutch pumps use. A mechanical seal (09-0.2247.051) that keeps raw water on the wet side and out of your bearings. The cover gasket and O-ring set (01-42424 and 0.2173.459) that seals the end cover so the pump pulls a clean prime. And the end cover screws (0.0144.200, 0.0144.003, 0.0138.134) so you're not reusing corroded fasteners on a fresh rebuild.

Why replace all of it at once? Because an impeller is only as good as the surfaces around it. We've seen plenty of pumps where a new impeller went in against a nicked gasket or a tired seal, and the pump sucked air on startup or wept from the cover the first weekend out. When you're already pulling the end cover, the extra ten minutes to swap the seal and gasket is cheap insurance. This kit gives you every one of those parts in the right spec.

The F9B-3600 and F9B-5600 are extra heavy duty electromagnetic clutch pumps, the kind you find belted off the crank on inboard gas and diesel engines moving real volumes of cooling water. When the impeller vanes take a set or start shedding rubber, cooling drops off and temps climb. A worn impeller is one of the most common causes of an overheating alarm on the water, and it's also one of the easiest to fix if you have the parts aboard. That's the whole point of keeping a kit like this on hand.

A few things worth knowing at install time. First, confirm which series you have before you run the pump, since impeller and kit fitment is series specific and a mismatch fails fast. Second, get the old impeller out completely. Any rubber remnants left in the housing will chew up the new 09-814B within minutes of running. Third, don't gorilla the end cover screws. They thread into the pump body and strip if you torque them past snug, so bring them down hand tight and call it good. A dab of blue thread locker doesn't hurt.

Raw water is hard on rubber and seals. In saltwater service, plan on an impeller and seal refresh every season, and check the impeller any time you notice cooling water flow drop at the exhaust. Boats that sit, or that run in silty or sandy water, wear impellers faster than you'd think. Keeping one of these kits in the spares locker means an overheating pump on a Saturday afternoon is a dockside fix, not a lost weekend waiting on parts. It's the difference between a quick swap and a tow home.

Who is this for? Any boater running a Johnson F9B-3600, F9B-5600, or the closely related F9B-9 pump who wants to service it right the first time. It's the same set of parts a mechanic would pull to rebuild the pump, packaged by the manufacturer so nothing gets forgotten. If you can turn a screwdriver and follow the flow arrow on the pump body, you can do this job at the dock. No special pullers, no press, just basic hand tools and an hour of your time.

Storage tip: keep the kit sealed until you need it. Neoprene impellers last longest in their original packaging, away from heat and sunlight, so the vanes stay supple and ready to seat. When the day comes, lube the new impeller lightly before it goes in, line up the vanes with the direction of rotation, and you'll have cooling water flowing again in short order.
