Johnson Pump 09-45581 Impeller Service Kit for F9B Pumps

When a Johnson F9B pump starts losing prime or dropping pressure, nine times out of ten the impeller is the culprit. Rubber vanes take a beating, they wear, and eventually they stop sealing against the housing. This is the genuine Johnson service kit for that exact job. Part number 09-45581, it carries every wear part you need to bring an F9B-3000, F9B-5000, or F9B-9 series pump back to full output in a single afternoon.

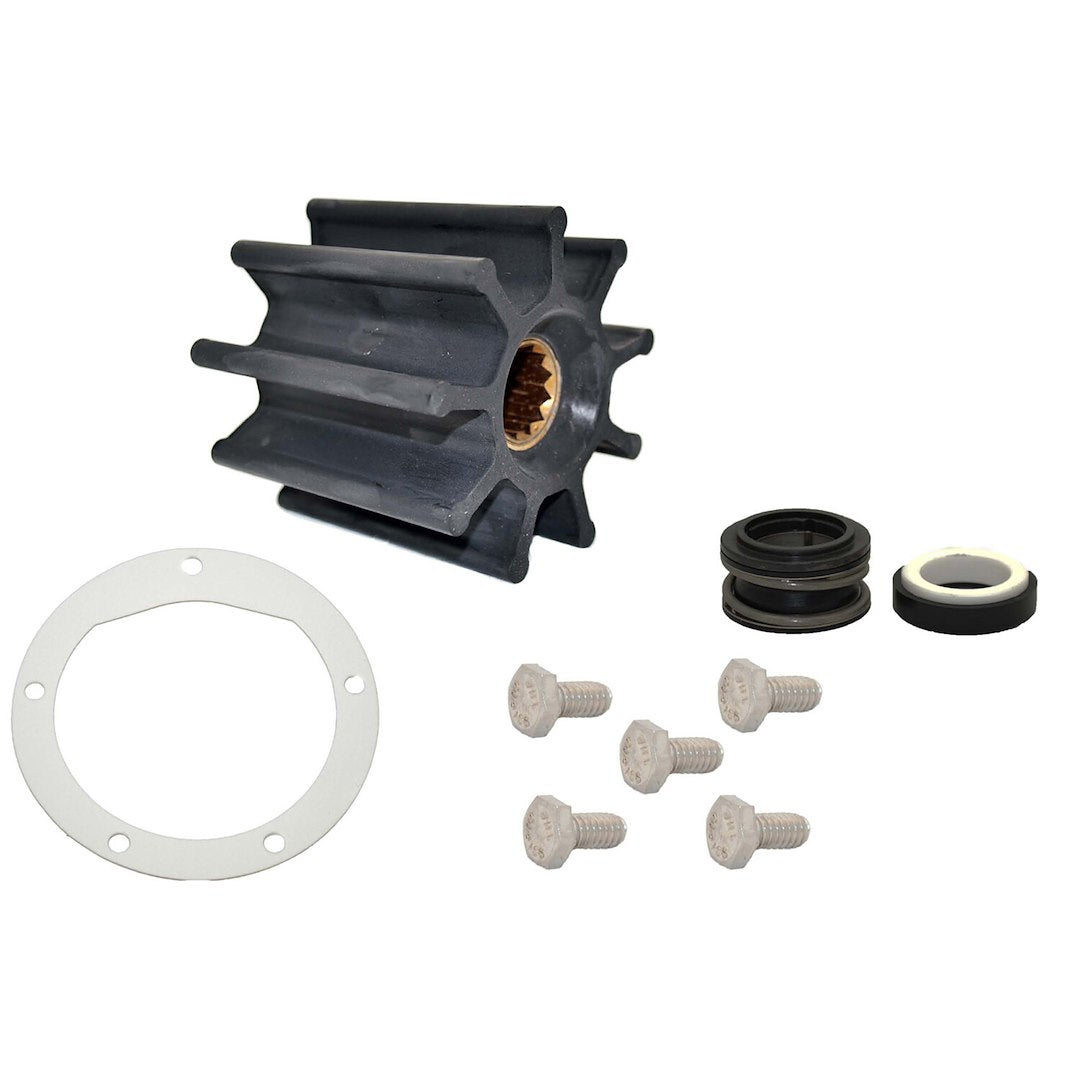

Inside the box you get the flexible impellers (09-802B and 09-814B), a shaft seal (09-0.2247.051), the end cover gasket, a full set of O-rings (01-42424, 0.2172.142, and 0.2173.45), and fresh end cover screws (0.0144.200, 0.0144.003, and 0.0138.134). That last part matters more than most folks think. The original screws thread into the pump housing and back out a few times over the pump's life, and reusing tired ones is how you end up with a slow weep at the cover. Fresh hardware means you close it back up clean.

These F9B pumps are the extra heavy-duty flexible impeller units, the kind that live on engine cooling loops, washdown systems, and transfer duty where they run hard and don't get much attention until something goes wrong. That's exactly why you keep a service kit on the shelf. An impeller that's fine at the dock can shed a vane the first hot afternoon under load, and a spare kit in the locker turns a ruined weekend into a quick fix.

How do you know when it's time? Watch for the tells. A pump that used to prime instantly now takes a few seconds. Output that's down from where it used to sit. A rattle or a change in tone from the pump head. Any of those usually means the impeller vanes are worn, cracked, or taking a set. Pull the end cover and have a look. If the vanes are cracked at the root, curled, or missing chunks, the impeller's done and it's kit time. A lot of boaters just make it an annual job at haulout, and honestly that's not a bad plan on a pump that runs all season.

The rebuild itself is straightforward if you take your time. Pull the end cover, walk the old impeller out of the housing with a pair of pliers, and inspect the bore and the cam for scoring while you're in there. A scored housing will chew through a new impeller fast, so it's worth the look. Slide the new impeller in with a little grease so the vanes bend the right way, set the new gasket, and torque the cover screws down evenly in a cross pattern.

A couple of notes from folks who do this regularly. Seat every O-ring exactly where it belongs before you button it up, because a pinched or misplaced O-ring on the F9B-5000 is the number one cause of a nagging leak after a rebuild. And go easy on those end cover screws. They thread into the housing, and cranking them down hard is how threads strip. Snug and even beats tight, and a small drop of thread locker holds them without you having to lean on the driver.

One more thing worth saying. Getting the gasket aligned right is what keeps the pump from pulling air. On the F9B-3000 the impeller swap is about as easy as it gets, but if the cover gasket isn't sitting flat you'll chase a soft prime for an hour wondering what went wrong. Set it clean the first time and the pump comes right back.

Who's this for? Anyone running a Johnson F9B-3000, F9B-5000, or F9B-9 pump who'd rather rebuild than replace. A full pump costs real money. This kit costs a fraction of that and puts the same performance back in your hands. Genuine Johnson wear parts matter here too. The impeller compound and the exact O-ring sizes are what let the pump hit its rated pressure, so this kit keeps your F9B performing the way it did new. Match the kit to your pump model before you order, and if you're not sure which pump you've got, the model number is stamped on the pump body. We're happy to help you confirm the right kit. Keep one aboard, because when an impeller lets go on the water, you want to be back underway, not waiting on a parts order.
