Johnson Pump 09-1029B F8 Neoprene Impeller Kit

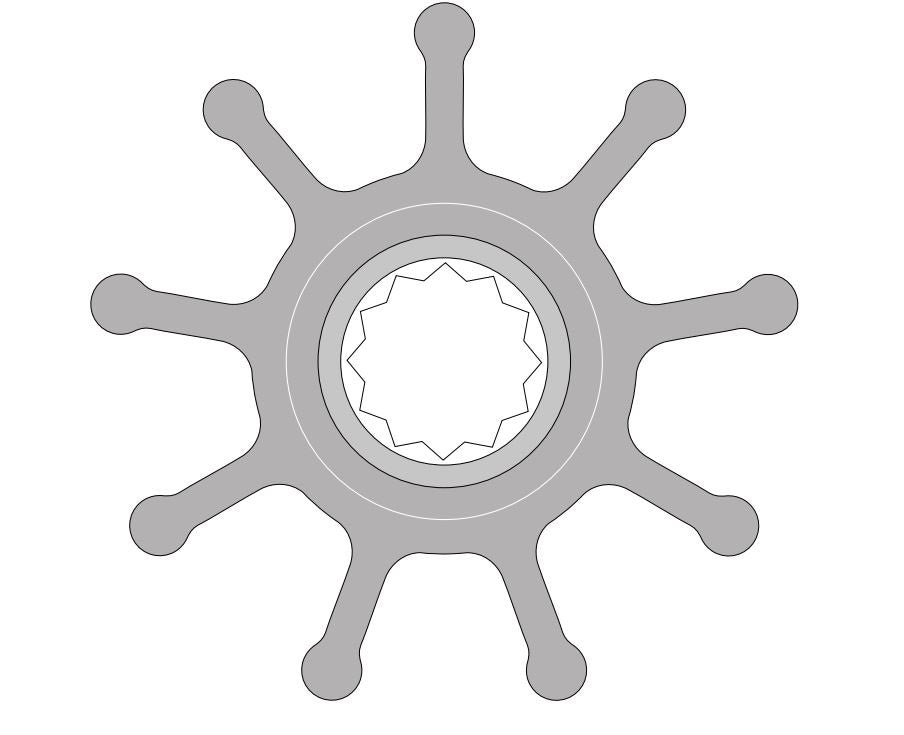

When your Johnson F8 engine cooling pump starts pushing less water than it used to, the impeller is almost always the culprit. This is the genuine Johnson Pump 09-1029B replacement, a neoprene flexible-vane impeller sized specifically for the F8 pump body. It measures 3.74 inches across the outer diameter and 2.48 inches thick, so it drops into the F8 housing without machining or shimming.

Here's the thing about raw-water impellers. They're a wear part, plain and simple. The flexible neoprene vanes flick water through the pump every second the engine runs, and over a season or two they take a set, lose their spring, and start to crack at the base. A tired impeller moves less coolant, your engine runs hotter, and eventually a vane lets go entirely. Replacing it on a schedule is a lot cheaper than a cooked engine.

Why neoprene? It's the everyday workhorse compound for marine raw-water pumps. It flexes well cold, it primes quickly, and it shrugs off the normal mix of salt, silt, and the odd bit of weed that comes through a raw-water intake. This kit is a single impeller, the one part that actually wears, so you're not paying for a full pump rebuild when all your F8 needs is a fresh set of vanes.

We tell folks to swap the impeller at the start of every season, or roughly every 200 running hours if you put on a lot of water time. If you run in brackish or warm water, lean toward the shorter interval. Neoprene holds up fine to normal raw-water cooling duty, but heat and grit are what age it. So if your F8 lives in a hot, sandy inlet, don't stretch the calendar.

The install itself is straightforward, but there are a couple of things worth getting right. Before you drop the new impeller in, check that the cover plate and wear plate are flat and not scored. A warped cover can bind a fresh 2.48-inch impeller and chew it up fast. Coat the vanes with a light film of glycerin or a dedicated impeller lube, never petroleum grease, since oil-based products swell and destroy neoprene. Seat the impeller with the vanes curved in the right direction of rotation, then turn the engine over by hand before you ever hit the starter. You want to feel the vanes flex and confirm nothing is binding. Skip that step and you can overheat on the very first start.

New gasket every time. It's cheap insurance, and reusing a squashed old gasket is how you end up with a slow raw-water leak behind the pump. If your kit didn't come with fresh sealing hardware, grab an F8 gasket while you're at it.

One more real-world note. It's normal for the pump to whine a little on the first start after a service until it primes and pushes the air out of the cooling circuit. Let it catch its water and the noise settles. If it keeps howling and you don't see a steady stream out the telltale, shut down and bleed the air out before you run it dry. And that's the golden rule with any neoprene impeller: never run it dry, not even for the few seconds it takes to winterize. Dry running tears the vanes almost instantly.

If a vane does break off, hunt it down. Pieces travel downstream into the cooling passages and exhaust elbow, and a stray chunk lodged in a hose can block flow just like a bad impeller would. Pull the hose at the pump outlet and account for every vane before you call the job done.

This is the exact wear part your F8 pump was built around. Keep a spare aboard, service it on schedule, and the cooling system will take care of you.
