Johnson F4B-9 Water Pump Service Kit 09-45905
Johnson F4B-9 Water Pump Service Kit 09-45905 — Product description
The Johnson Pump F4B-9 service kit is what keeps your raw water pump moving water instead of leaving you stranded with an overheat alarm. It's the genuine SPX rebuild kit for the F4B-9 flexible impeller pump, with the impeller, seals, gaskets, and hardware you need to bring a tired pump back to life in an afternoon.
The Johnson Pump F4B-9 is a flexible impeller pump, the kind that lives down low on a lot of marine engines and gensets and quietly pushes raw water through your cooling system every minute the motor runs. When it's healthy, you never think about it. When the impeller starts to give up, you find out fast, usually as a temperature alarm on a hot afternoon when you're the furthest thing from a dock. This service kit, Johnson part 09-45905, is how you stay ahead of that.
A flexible impeller is a wear part by design. The rubber vanes flex against the pump housing to move water, and every hour of runtime wears them down a little. Run the pump dry for even a short stretch, suck up some sand or debris, or just let a season or two go by, and those vanes crack, harden, or tear. Once that happens your water flow drops and your engine runs hot. The fix isn't a whole new pump. It's a fresh impeller and the seals that go with it, which is exactly what's in this kit.

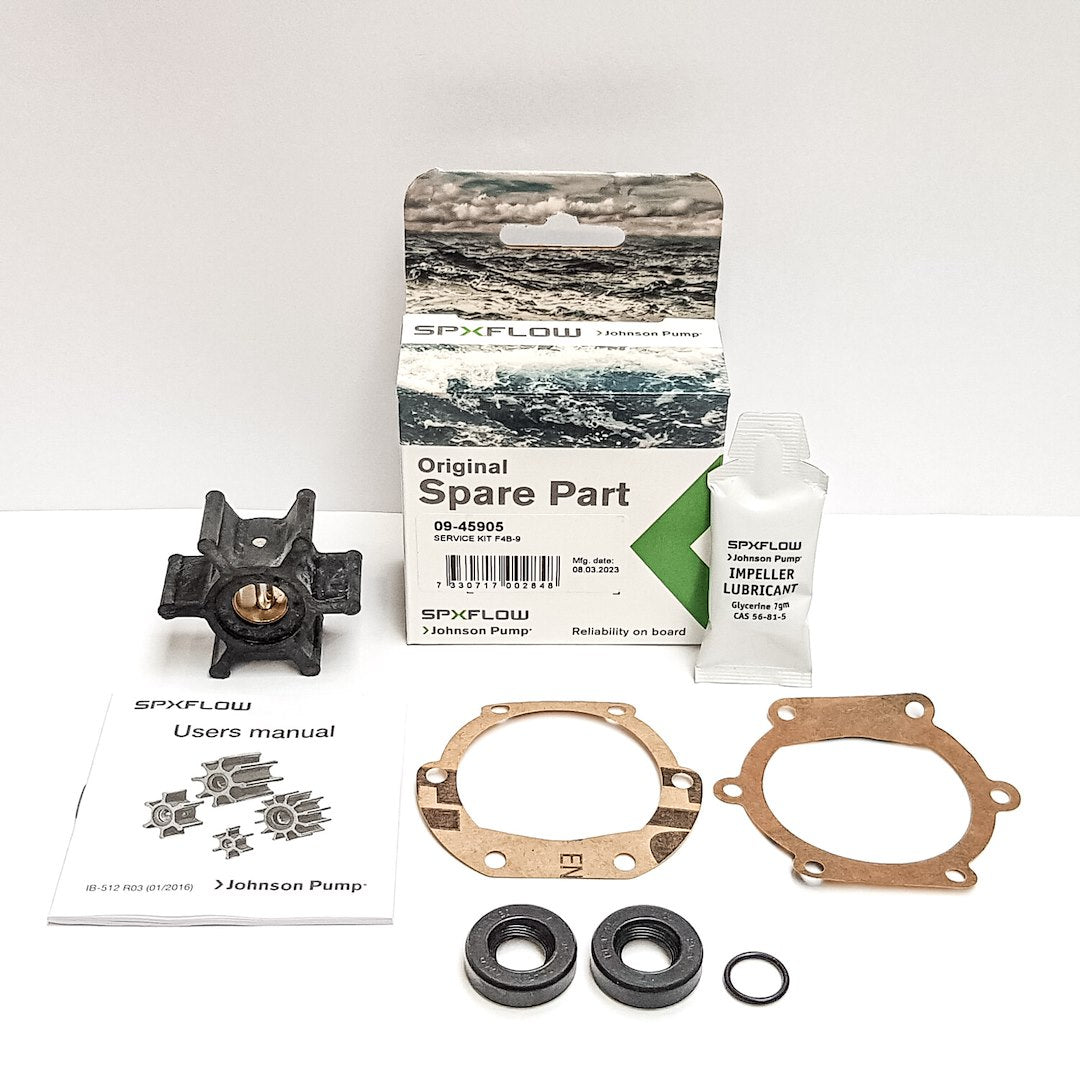

The 09-45905 kit is the genuine SPX service kit for the F4B-9 pump. It brings the wear parts that matter together in one box: a new flexible impeller, the shaft seal, O-rings, gaskets, and the mounting hardware you need to close the pump back up. That last part sounds small until you've dropped a tiny brass screw into the bilge and watched it disappear. Having the right gaskets and hardware in the kit means you do the job once and do it right, instead of piecing it together from three different drawers.
How do you know it's time? A few tells. Your engine temperature creeps up higher than normal at cruise. The stream out your exhaust looks weak or intermittent. Or you pull the pump cover and see impeller vanes that are set in a bend, cracked at the roots, or missing a tip entirely. If a vane broke off, go find the pieces downstream before you run it again, because a chunk of rubber stuck in a hose or heat exchanger will cook you just as surely as a bad impeller. Most boaters we talk to run a fresh impeller once a season, and keep the old one as an emergency spare if it still has life in it.
Rebuilding an F4B-9 is a very doable afternoon job. Close the seacock first. Pull the pump cover, work the old impeller off the shaft, and clean up the housing so you can see whether the walls and cam are still smooth. This is the moment to be honest with yourself. If the shaft is scored or the housing is worn, a service kit won't save it and you're better off replacing the pump. If everything looks good, coat the new impeller with the lubricant, work it into the housing following the natural set of the vanes, fit the new gaskets and O-rings, and button it up with the fresh hardware. Open the seacock, start the engine, and confirm you've got a strong steady stream before you leave the slip.
This is a kit worth having before you need it. Water pump failures don't schedule themselves for convenient times. Keeping a 09-45905 aboard, or on the shelf in the shop, means a tired impeller is an hour of work instead of a ruined weekend or a tow. If you run a Johnson F4B-9 on your engine or genset, this is basic, honest maintenance insurance, and it's a lot cheaper than the overheat it prevents.
Key Features
- Genuine Johnson Pump (SPX) service kit for the F4B-9 flexible impeller pump, so every part fits the way the factory intended
- Includes a fresh flexible impeller to restore full raw water flow and proper engine cooling
- Shaft seal and O-rings in the kit stop the weeping and drips that show up as a pump ages
- Gaskets included so you reseal the pump correctly on reassembly, no scavenging for parts
- Mounting hardware in the box means you're not hunting for the right brass screws mid-job
- Rebuilds the pump you already have instead of buying a complete new pump, saving real money
- Compact kit worth keeping aboard as a spare for peace of mind on a long run
Why Buy from NVN Marine
- Authorized Johnson Pump reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Johnson Pump F4B-9 Water Pump Service Kit |
|---|---|
| Brand | Johnson Pump |
| Manufacturer | Johnson Pump (SPX FLOW) |
| Manufacturer Part Number | 09-45905 |
| UPC | 7330717002848 |
| Kit Type | Water Pump Service Kit |
| Pump Series | F4B-9 |
| Pump Type | Flexible Impeller Pump |
| Application | Marine Engine Raw Water / Seawater Cooling |
| Fits Pump Models | Johnson F4B-9 |
| Included Components | Impeller, shaft seal, O-rings, gaskets, mounting hardware |
| Sold As | Complete service kit |
Frequently asked questions
What's included in the Johnson F4B-9 service kit?
The 09-45905 kit brings together the wear parts for the F4B-9 pump: a new flexible impeller, the shaft seal, O-rings, gaskets, and mounting hardware. It's what you need to rebuild the pump in one box.
Which pump does this kit fit?
It's the service kit for the Johnson F4B-9 flexible impeller pump. Match your pump model to F4B-9 before ordering, since Johnson makes several similar pumps and the kits aren't interchangeable.
How often should I replace the impeller?
Most boaters run a fresh impeller once a season, or any time you've run the pump dry or noticed weak water flow. If you cruise heavily, checking it mid-season is smart.
My pump shaft looks worn. Will this kit fix it?
No. A service kit replaces the impeller and seals, not the shaft or housing. If the shaft is scored or the housing walls are worn, replace the whole pump instead. The kit is for pumps that are still mechanically sound.
How do I know the impeller is bad?
Watch for the engine running hotter than usual, a weak or sputtering exhaust stream, or cracked and bent vanes when you pull the cover. Any of those means it's time.
What's the part number?
Johnson (SPX) part 09-45905. It's the genuine manufacturer service kit for the F4B-9 pump.
Is this hard to install?
It's a doable afternoon job for most owners. Close the seacock, pull the cover, swap the impeller and seals, refit the gaskets and hardware, and confirm a strong water stream on startup.
A vane broke off my old impeller. What now?
Find the missing pieces before you run the engine again. A chunk of rubber lodged in a hose or heat exchanger will restrict flow and cause an overheat. Trace the cooling path and clear it, then install the new impeller.
Should I keep a spare kit aboard?
Absolutely. Water pump failures never happen at a convenient time. A spare 09-45905 turns a bad impeller into an hour of work instead of a ruined trip.
Do I need special tools?
Not really. Basic hand tools and impeller lubricant get it done. A pair of pliers helps work a stubborn impeller off the shaft, and take care not to gouge the housing.
