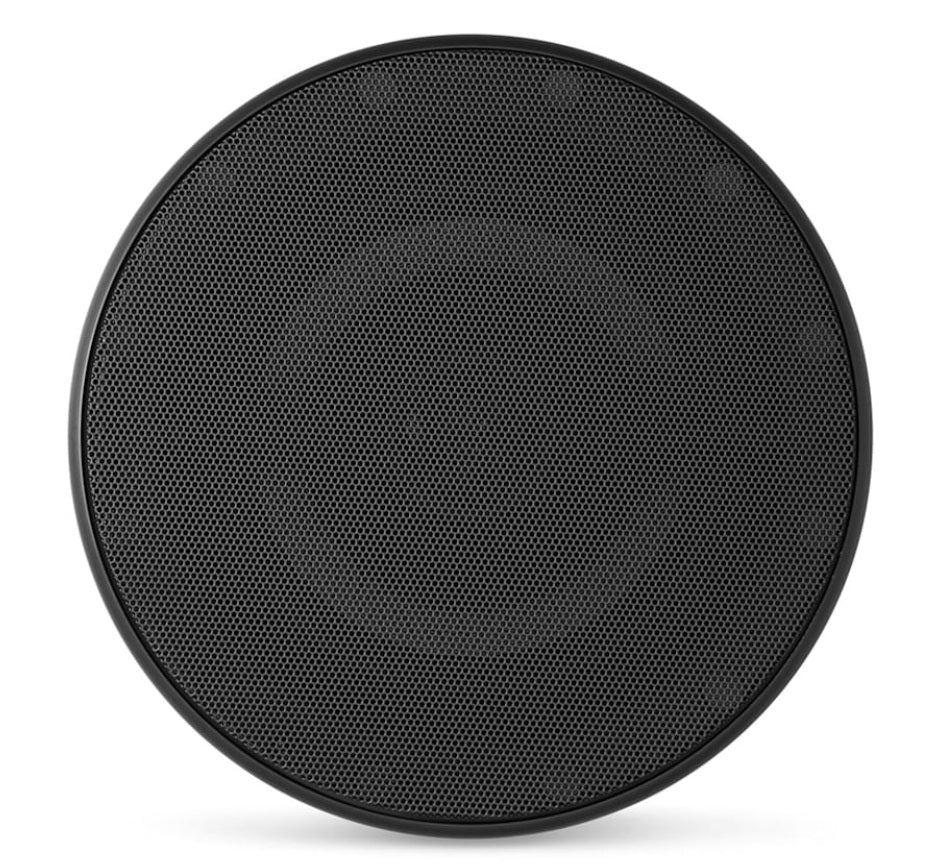

JL Audio M6 7.7in Marine Coaxial Speaker, Black
JL Audio M6 7.7in Marine Coaxial Speaker, Black — Product description
The JL Audio M6 7.7-inch marine coaxial speaker pairs a long-excursion DMA-optimized woofer with a silk dome tweeter for clear, detailed sound built to survive saltwater. In classic black, it delivers 100 watts RMS of clean, full-range audio on any boat.
Great boat sound is about clarity you can hear over wind and water, and the JL Audio M6 7.7-inch marine coaxial speaker is engineered to deliver exactly that. This is a single full-range speaker that combines a long-excursion woofer with a suspended silk dome tweeter, so one compact unit reproduces deep, tuneful lows and sparkling highs together. It's the kind of upgrade that makes a factory boat stereo sound like an entirely different system.
At the heart of the M6 is a DMA-optimized woofer. JL Audio uses proprietary motor, suspension and cone modeling to reduce distortion and improve transient response, which in plain terms means the bass stays tight and the music stays clean even when you push the volume. The cone itself is injection-molded, mica-filled polypropylene, a material chosen for stiffness and marine durability, so it holds its shape and its sound through years of sun and spray.
Up top, a 1-inch silk dome tweeter handles the detail. It's precisely tuned and sized to match the woofer, and it delivers excellent off-axis response. That last part matters more than it sounds: on a boat you're rarely sitting directly in front of a speaker, so wide, even coverage means the music sounds balanced whether you're at the helm, on the bow, or lounging across the cockpit. An advanced multi-order crossover network splits the sound cleanly between woofer and tweeter and includes an electronic protection circuit to guard the tweeter against failure.
The numbers back up the design. The M6 handles 100 watts RMS of continuous power and has a sensitivity of 91 dB, so it plays loud and efficient without demanding a huge amplifier, though it truly shines with quality amplification behind it. JL Audio recommends between 40 and 200 watts RMS per channel, which pairs beautifully with a dedicated marine amp. The frequency response spans 45 Hz to 25 kHz, and the nominal impedance is 4 ohms, standard for marine systems. Feed it clean power and you'll hear the difference immediately in vocals, cymbals and the low end.
Because this is real marine gear, every material is built to take saltwater duty. From the cone to the grille hardware, the M6 is designed to withstand a harsh marine environment and keep performing season after season. It's backed by a 3-year warranty, and it wears a clean black finish that blends into most helm and cockpit panels. Note that this listing is for a single speaker, so order a pair if you're filling two positions, or add more to build out multiple zones.
Installation is straightforward for a coaxial of this size. The speaker needs a 7.50-inch mounting hole and an 8.18-inch bolt-hole circle, with 4.26 inches of mounting depth clearance behind the panel and a low 0.38-inch grille protrusion out front, so it sits nearly flush. Connections are made with simple spade terminals, keeping wiring clean and serviceable. Everything you need to mount it comes in the box: the loudspeaker, six stainless steel mounting screws, six stainless screw washers, a grille removal tool, and a mounting template to help you cut accurately the first time.
We'd recommend the M6 to any boater who's tired of thin, harsh factory speakers and wants sound that holds up at speed. Drop a pair into your existing openings, give them a proper amp, and the whole boat gets louder, cleaner and more enjoyable. Whether you're anchored for the afternoon or running the coast at sunset, these speakers turn background noise into music you actually want to hear. It's a straightforward upgrade with a payoff you'll notice on the very first outing.
There's a reason JL Audio has such a following among boaters who care about sound. The M6 isn't chasing a spec sheet, it's tuned to sound good in the real world, on a moving boat, in the open air, where cheap speakers fall apart. Match a pair with a good amplifier and you've built a system that stays clear at full volume and keeps its composure through years of sun, salt and spray.
Key Features
- 7.7-inch marine coaxial speaker with a long-excursion DMA-optimized woofer
- 1-inch silk dome tweeter tuned for detail and wide off-axis coverage
- Injection-molded, mica-filled polypropylene cone for stiffness and marine durability
- Advanced multi-order crossover with electronic tweeter protection
- 100 watts RMS continuous power handling, 91 dB sensitivity
- 45 Hz to 25 kHz frequency response, 4-ohm nominal impedance
- Built to withstand saltwater marine environments
- Low-profile design, 7.50 in mounting hole with only 0.38 in grille protrusion
- Backed by a 3-year warranty (single speaker)
Why Buy from NVN Marine
- Authorized JL Audio reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | JL Audio M6 7.7in Marine Coaxial Speaker, Black |
|---|---|
| Brand | JL Audio |
| Manufacturer Part Number | 010-03866-00 |
| UPC | 699440937672 |
| Speaker Type | Coaxial (full range) |
| Size | 7.7 in |
| Color | Black |
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power | 40 to 200 W RMS per channel |
| Sensitivity | 91.0 dB (SPL @ 1 W/1 m) |
| Frequency Response | 45 Hz to 25 kHz (+/- 3 dB) |
| Nominal Impedance | 4 ohm |
| Cone Material | Injection-molded, mica-filled polypropylene |
| Tweeter | 1 in (25 mm) silk dome |
| Speaker Connections | Spade connectors |
| Mounting Hole | 7.50 in (191 mm) |
| Bolt Hole Circle | 8.18 in (208 mm) |
| Mounting Depth Clearance | 4.26 in (108 mm) |
| Grille Protrusion | 0.38 in (10 mm) |
| Warranty | 3 years |
| In the Box | Speaker, six screws, six washers, grille removal tool, mounting template |
Frequently asked questions
Is this listing for one speaker or a pair?
This is a single speaker. Most boaters need speakers in pairs for balanced left-and-right sound, so order two if you're filling two positions, or more if you're building out separate listening zones around the boat.
How much power do the M6 speakers handle?
Each M6 handles 100 watts RMS of continuous power. JL Audio recommends driving them with 40 to 200 watts RMS per channel, so they pair well with a quality marine amplifier that gives them clean, controlled power.
Do I need an amplifier to run these?
You can run them off a marine head unit, but the M6 is designed to benefit from real amplification. With a dedicated amp in the 40 to 200 watt range, you'll get noticeably cleaner, louder and more detailed sound, especially over wind and engine noise.
Are these speakers suitable for saltwater use?
Yes. Every part, from the mica-filled polypropylene cone to the stainless mounting hardware, is built to withstand harsh saltwater marine environments. They're made for long-term outdoor use and backed by a 3-year warranty.
What size opening do I need to install them?
The M6 needs a 7.50-inch mounting hole with an 8.18-inch bolt-hole circle, plus 4.26 inches of mounting depth clearance behind the panel. The grille protrudes only 0.38 inches, so the speaker sits nearly flush once installed.
What kind of sound quality can I expect?
You get clean, balanced full-range sound. The DMA-optimized woofer keeps bass tight and low in distortion, while the silk dome tweeter adds crisp detail with wide off-axis coverage, so the music sounds even across the whole boat, not just in front of the speaker.
How are the speakers wired?
Connections use simple spade terminals, which keep the wiring clean and easy to service. The nominal impedance is 4 ohms, the standard for marine audio systems, so they match typical marine amplifiers and head units without any special wiring.
What comes in the box?
Each speaker ships with six stainless steel mounting screws, six stainless steel screw washers, a grille removal tool, and a mounting template. The template helps you cut an accurate hole the first time, which makes the install faster and cleaner.
