JL Audio M200 6.5in Marine Speakers, RGB LED Pair
JL Audio M200 6.5in Marine Speakers, RGB LED Pair — Product description

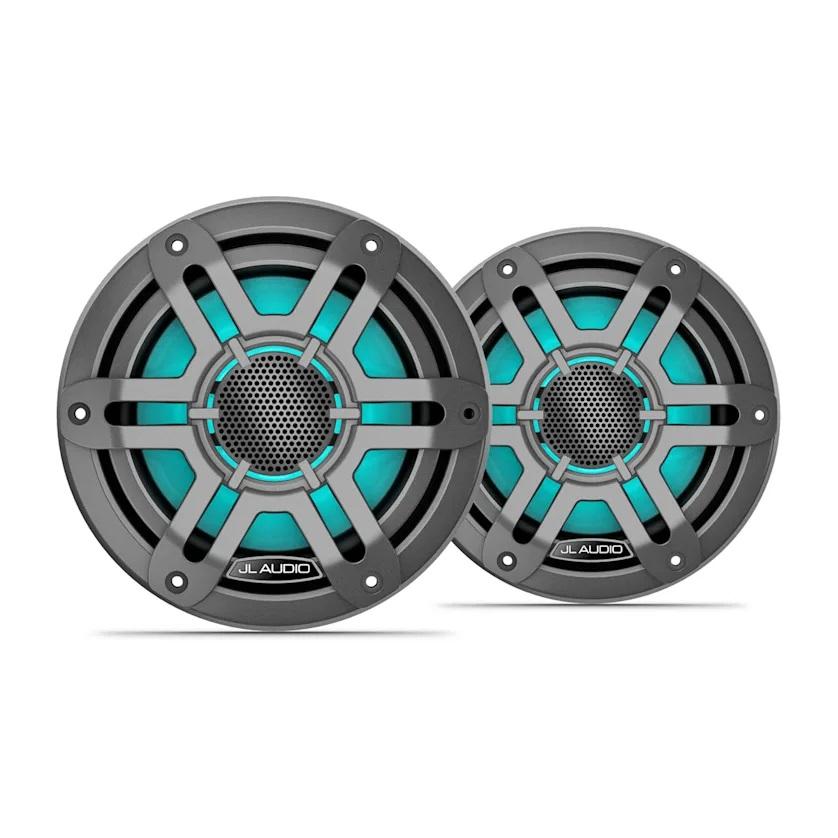

The JL Audio M200 is a pair of 6.5-inch marine coaxial speakers with gray sport grilles, RGB LED lighting, and a silk dome tweeter. Fifty watts RMS of clean power, IPX6 protection, and corrosion-resistant build make them a smart step up from factory audio on just about any boat.
The JL Audio M200 brings genuine M-series marine sound to a price that makes outfitting a whole boat a lot easier. You get a pair of 6.5-inch coaxial speakers with gray sport grilles, RGB LED lighting, and the kind of marine-grade build JL Audio is known for. If you've been running tinny factory speakers and you're ready for clean, full sound at the dock or underway, this is a smart place to start.
Each speaker handles 50 watts RMS of continuous power, with headroom up to 60 watts, so they play loud and stay clean when the wind picks up and you need a few more decibels to hear the music over the engine. The injection-molded, mica-filled polypropylene cone keeps its shape in heat and humidity, and the bridge-mounted 1-inch edge-driven silk dome tweeter with neodymium magnet and ferrofluid cooling smooths out the high end. That silk dome matters. It's what keeps vocals and cymbals warm instead of harsh, even when you turn things up.
Sensitivity comes in at 87 dB, and the frequency response runs from 55 Hz up to 20 kHz. Translation? You get usable low end for a coaxial this size and clean detail up top. Nominal impedance is 4 ohms, and JL Audio recommends 30 to 100 watts per channel of amplifier power. Run them off a decent head unit and they sound good. Add a small amp and they really wake up.
The RGB LED lighting is the fun part. Dial in just about any color to match your boat, your mood, or the time of night. The LEDs run on 10 to 14.4 volts DC and pull a maximum of 140 milliamps at 14.4 volts, so they're easy on your electrical system. An optional control module (sold separately) unlocks advanced color control from a compatible chartplotter, but you can also wire the lighting into a simple controller if you'd rather keep it basic.
These are built for salt and sun. The IPX6 water and dust rating means they shrug off heavy spray and washdowns. Corrosion-resistant connections and circuit boards are standard, which is exactly what you want in gear that lives outside year round. Connections are made through flying leads with waterproof connectors, 18 AWG for the speaker and a 4-conductor 20 AWG lead for the LEDs. Everything is designed to seal up and stay sealed.
Mounting is straightforward. You'll need a mounting hole between 5.00 and 5.25 inches with a 6.14-inch bolt hole circle, and 2.83 inches of depth clearance behind the panel. The grille protrudes just 1.30 inches off the surface, so they sit clean against a console, bulkhead, or hardtop pod. Overall diameter is 6.90 inches and total depth is 4.19 inches. Measure your space before you cut, like always.
One honest note on the grilles. The gray sport grilles are included with this pair, but JL Audio also offers interchangeable grille options that are sold separately if you want to change the look later. Same goes for the color choice up front. The M200 comes in white or gray, and this is the gray sport version. Pick the one that disappears into your boat's trim.
Who are these for? Anybody repowering a factory audio setup on a center console, pontoon, deck boat, or runabout who wants a real step up without going all the way to the top of the line. They're also a solid match for a second zone, like cockpit speakers paired with a separate amp, or a set for the bow seating on a pontoon. The compass-safe distance is 73 inches, so keep that in mind if you're mounting near a magnetic compass at the helm.
In the box you'll find one pair of speakers with the gray sport grilles installed, two water-resistant 6-pin connectors for the illuminated version, mounting screws, and documentation. Wire them in, seal the connectors, and you're playing. Backed by a 3-year warranty, these are an easy call when you want better sound on the water without overthinking it.
Key Features
- 50 watts RMS continuous power handling with headroom to 60 watts for loud, clean output that cuts through engine and wind noise
- Bridge-mounted 1-inch edge-driven silk dome tweeter with neodymium magnet and ferrofluid cooling for smooth, warm highs
- Injection-molded, mica-filled polypropylene cone holds its shape in marine heat and humidity
- RGB LED lighting runs on 10 to 14.4 VDC and draws just 140 mA max, so it's gentle on your battery
- IPX6 water and dust rating plus corrosion-resistant connections and circuit boards stand up to salt and sun
- 4-ohm nominal impedance with 30 to 100 watts per channel recommended amplifier power
- 87 dB sensitivity and 55 Hz to 20 kHz frequency response for full-range sound from a compact coaxial
- Waterproof flying-lead connectors (18 AWG speaker, 4-conductor 20 AWG LED) seal out moisture
- Fits a 5.00 to 5.25-inch mounting hole with a 6.14-inch bolt hole circle and 2.83 inches of depth clearance
- Gray sport grilles included, with interchangeable grille options available separately
- Backed by a 3-year JL Audio warranty
Why Buy from NVN Marine
- Authorized JL Audio reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | JL Audio M200 6.5in Marine Speaker Pair with LED and Gray Sport Grille |
|---|---|
| Brand | JL Audio |
| Manufacturer Part Number | 010-04753-03 |
| UPC | 753759376833 |
| Warranty | 3 years |
| Color | Gray Sport |
| Speaker Type | Coaxial |
| Speaker Size | 6.5" |
| Diameter | 6.90" (175 mm) |
| Depth | 4.19" (106 mm) |
| Water and Dust Rating | IPX6 |
| Continuous Power Handling (RMS) | 50 W |
| Sensitivity (SPL @ 1 W/1 m) | 87 dB |
| Frequency Response (+/- 3 dB) | 55 Hz - 20 kHz |
| Nominal Impedance | 4 Ω |
| Recommended Amplifier Power (RMS) | 30 - 100 W/Channel |
| LED Lighting | Yes, RGB |
| LED Supply Voltage | 10 - 14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 140 mA |
| Cone Material | Injection-molded, mica-filled polypropylene |
| Tweeter Type | Silk Dome |
| Tweeter Size | 1" (25 mm) |
| Compass-Safe Distance | 73" (185 cm) |
| Speaker Connections | Flying lead with waterproof connector, 18 AWG wire |
| LED Connection | Flying lead with waterproof connector, 4-conductor 20 AWG wire |
| Mounting Depth Clearance | 2.83" (72 mm) |
| Frontal Grille Protrusion | 1.30" (33 mm) |
| Mounting Hole | 5.00" - 5.25" (127 - 133 mm) |
| Bolt Hole Circle | 6.14" (156 mm) |
Frequently asked questions
How much power do the M200 speakers handle?
Each speaker handles 50 watts RMS continuous, with up to 60 watts of headroom. JL Audio recommends 30 to 100 watts per channel of amplifier power, so they work off a strong head unit and come alive with a small amp.
What size cutout do I need to install them?
You'll need a mounting hole between 5.00 and 5.25 inches, a 6.14-inch bolt hole circle, and 2.83 inches of depth clearance behind the panel. The grille protrudes 1.30 inches off the surface.
Are the grilles included?
Yes, the gray sport grilles come installed on this pair. JL Audio also sells interchangeable grille options separately if you want to change the look down the road.
What color options does the M200 come in?
The M200 is offered in white or gray. This listing is the gray sport version.
Can I control the LED colors?
Yes. The RGB LEDs can be wired to a compatible lighting controller, and an optional control module (sold separately) unlocks advanced color control from a compatible chartplotter.
Are these speakers waterproof?
They carry an IPX6 water and dust rating and use corrosion-resistant connections and circuit boards, so they handle heavy spray, washdowns, and salt exposure.
What's the impedance?
Nominal impedance is 4 ohms, which is standard for most marine head units and amplifiers.
Will they interfere with my compass?
The compass-safe distance is 73 inches, so mount them at least that far from a magnetic compass.
What comes in the box?
One pair of speakers with the gray sport grilles, two water-resistant 6-pin connectors for the illuminated version, mounting screws, and documentation.
What's the sound like?
A 1-inch edge-driven silk dome tweeter delivers smooth, warm highs, while the mica-filled polypropylene cone covers 55 Hz to 20 kHz at 87 dB sensitivity. Clean and full for a 6.5-inch coaxial.
