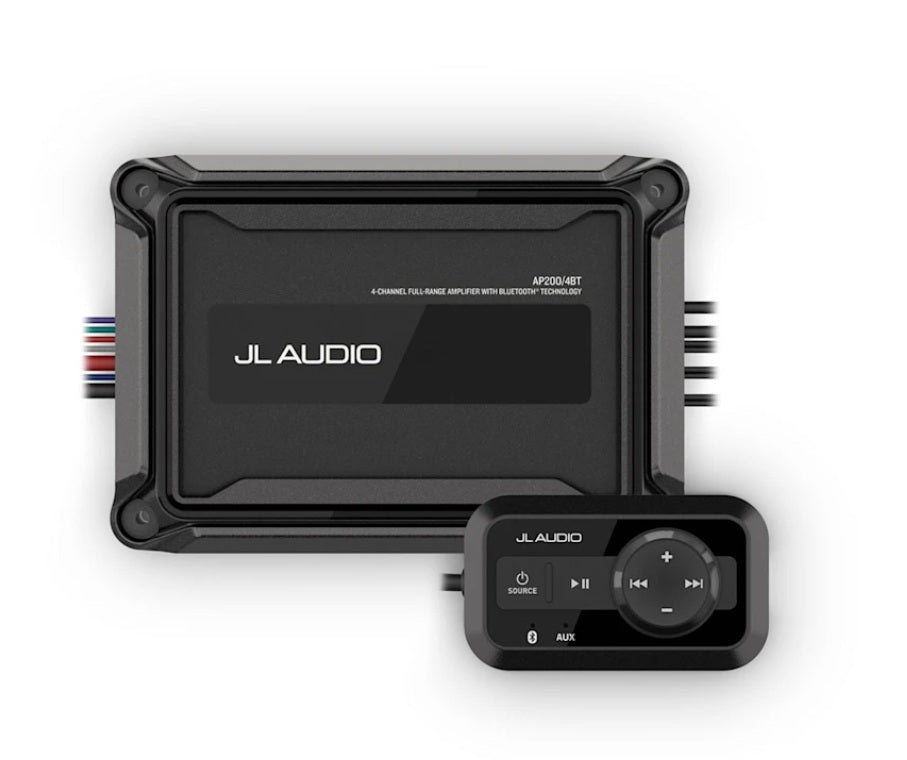

JL Audio AP200/BT 4-Channel Marine Amplifier, Bluetooth
JL Audio AP200/BT 4-Channel Marine Amplifier, Bluetooth — Product description
The JL Audio AP200/BT is an ultracompact 4-channel Class D marine amplifier with built-in Bluetooth. Stream audio straight from your phone with no head unit required, control it from the IP67-rated wired remote, and mount it almost anywhere thanks to its IP67-rated housing and tiny footprint. It's the perfect sound solution for a small boat, jet ski, or overland rig.
Not every boat has room for a full stereo head unit, and not every owner wants one. If you've got a small center console, a jon boat, a jet ski, or an overland rig, the JL Audio AP200/BT solves the audio problem in one tidy package. It's an ultracompact four-channel amplifier with Bluetooth built right in, so you can stream music straight from your phone and skip the dash-mounted stereo entirely. Fewer holes to cut, less to wire, and nothing to steal or corrode at the helm.
Here's how it works. The AP200/BT pairs directly with your compatible smartphone over Bluetooth and handles both the source and the amplification in a single chassis. You control everything, power, volume, and playback, from the included wired remote, which you can flush-mount, surface-mount, or bar-mount wherever it's easiest to reach. Tuck the amp behind a panel, put the remote by the wheel or on the console, and you've got a clean, capable sound system without a screen in sight. For a lot of small boats, that's exactly the right amount of technology.
Despite its size, this is a real amplifier, not a toy. It's a four-channel Class D design that delivers 40 watts by four at 4 ohms, or 100 watts by two when bridged, and it steps up to 50 watts by four at 2 ohms. Class D circuitry is the key to fitting this much output into such a small box, because it runs efficiently and cool while sipping current from your battery. That efficiency is a big deal on a small craft where you're often running off one modest battery and can't afford a power-hungry amp draining it while you're anchored up with the music going.
The sound stays clean too. You get a signal-to-noise ratio better than 70 dB and full 20 Hz to 20 kHz frequency response, so your playlist comes through crisp and detailed rather than harsh. The RCA inputs are switchable between a low range of 200 mV to 2 V and a high range of 800 mV to 8 V, giving you flexibility if you ever want to feed it from a wired source instead of Bluetooth. Four channels means you can run two pairs of speakers, so both the bow and the stern get filled with sound.
Because it's going on the water, JL Audio built it tough. The amplifier is rated to IP67 standards, excluding cables, so the sealed housing resists dust and handles splash, rain, and wash-down. The included wired remote is IPX7-rated, meaning it too can take a soaking without missing a beat, which matters a lot for a control that's often mounted out in the open near the helm. The amp operates across a wide temperature range from 4 degrees F to 149 degrees F, so a hot compartment or a cold morning won't stop the party. It's backed by a three-year JL Audio warranty.
Installation is about as simple as marine audio gets. The amp measures just 7.28 in wide, 4.90 in deep, and 1.85 in tall, so it fits into tight spots under a console or seat. Wire it with 4 AWG minimum power and ground and protect it with a 35-amp fuse using AFS, AGU, or MaxiFuse types. Built-in protection circuits cover input under and over voltage, over-temperature, and output short circuits, so it looks after itself. The box comes loaded with everything you need: the amplifier, the wired remote controller, a surface mounting cup with screws, amplifier mounting screws, flush mounting kits, a flush mounting template and waterproof gasket for the remote, and documentation.
Think about a quick afternoon on a small skiff. You drop the boat in, pair your phone once, and the music follows you all day, controlled from a weatherproof remote right at your fingertips, powered by an amp that's barely bigger than your hand and won't kill your battery. If you want great marine sound without the bulk and expense of a full stereo system, the AP200/BT is a genuinely smart, punch-above-its-weight choice.
Key Features
- Ultracompact 4-channel Class D marine amplifier with built-in Bluetooth streaming
- Streams straight from your smartphone, no separate head unit required
- Included wired remote flush-, surface-, or bar-mounts for easy control
- 40W x4 at 4 ohms, 100W x2 bridged, or 50W x4 at 2 ohms
- Efficient Class D circuitry runs cool and sips battery current
- IP67-rated amplifier housing (excluding cables) resists dust and spray
- IPX7-rated wired remote survives a full soaking
- Signal-to-noise ratio better than 70 dB with full 20 Hz to 20 kHz response
- Tiny 7.28 in x 4.90 in footprint fits small boats, jet skis, and overland rigs
- Backed by a 3-year JL Audio warranty
Why Buy from NVN Marine
- Authorized JL Audio reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | JL Audio AP200/BT 4-Channel Marine Amplifier with Bluetooth |
|---|---|
| Brand | JL Audio |
| Manufacturer Part Number | 010-03431-00 |
| UPC | 729218924549 |
| Channels | 4 |
| Amplifier Class | Class D |
| Wireless | Bluetooth audio streaming |
| RMS Power at 4 Ohm | 40W x4, or 100W x2 bridged |
| RMS Power at 2 Ohm | 50W x4 |
| Operating Voltage | 9 to 16 VDC |
| Amplifier Water and Dust Rating | IP67 (excluding cables) |
| Remote Water Rating | IPX7 |
| Signal-to-Noise Ratio | Greater than 70 dB (A-weighted) |
| Frequency Response | 20 Hz to 20 kHz (+0, -1 dB) |
| Input Sensitivity | Switchable, 200 mV to 2 V (Low) or 800 mV to 8 V (High) |
| Fuse Rating | 35A (AFS, AGU, or MaxiFuse) |
| Minimum Power/Ground Wire | 4 AWG copper |
| Protection Circuits | Input under/over voltage, over-temperature, output short circuit |
| Dimensions (H x W x D) | 1.85 in x 7.28 in x 4.90 in (47 x 185 x 125 mm) |
| Operating Temperature | 4 to 149 degrees F (-20 to 65 degrees C) |
| Warranty | 3 years |
| In the Box | Amplifier, wired remote, surface mounting cup with screws, amplifier mounting screws, flush mounting kits, remote template and gasket, documentation |
Frequently asked questions
Do I need a stereo head unit to use the AP200/BT?
No, and that's the whole point. It has Bluetooth built in, so it pairs directly with your smartphone and acts as both the source and the amplifier. You skip the dash-mounted stereo entirely and control everything from the included wired remote.
How much power does the AP200/BT put out?
It's a four-channel amp rated at 40 watts by four at 4 ohms, 100 watts by two when bridged, or 50 watts by four at 2 ohms. Its efficient Class D design packs that output into a very small, cool-running chassis.
How do I control it if there's no head unit?
You use the included wired remote, which handles power, volume, and playback. It can be flush-mounted, surface-mounted, or bar-mounted wherever it's most convenient, such as near the wheel or on the console.
Is the remote waterproof?
Yes. The wired remote is rated to IPX7, so it can withstand a soaking, which is important since it's often mounted out in the open near the helm. The amplifier itself is rated to IP67, excluding cables.
What boats or vehicles is this amp best for?
Its ultracompact size makes it ideal for small boats, jet skis, jon boats, and even overland vehicles, anywhere you want good sound without the bulk of a full stereo system. It fits into tight spaces under a console or seat.
How many speakers can I connect?
With four channels you can run two pairs of speakers, so you can fill both the bow and the stern of a small boat. You can also bridge channels for more power to a single pair if you prefer.
What wiring and fuse does it need?
Plan on 4 AWG minimum copper power and ground wire, protected by a 35-amp fuse using AFS, AGU, or MaxiFuse types. Built-in protection circuits guard against under and over voltage, over-temperature, and short circuits.
What comes in the box?
You get the amplifier, the wired remote controller, a surface mounting cup with four screws, four amplifier mounting screws, flush mounting kits, a flush mounting template and waterproof gasket for the remote, and documentation. JL Audio backs it with a three-year warranty.
