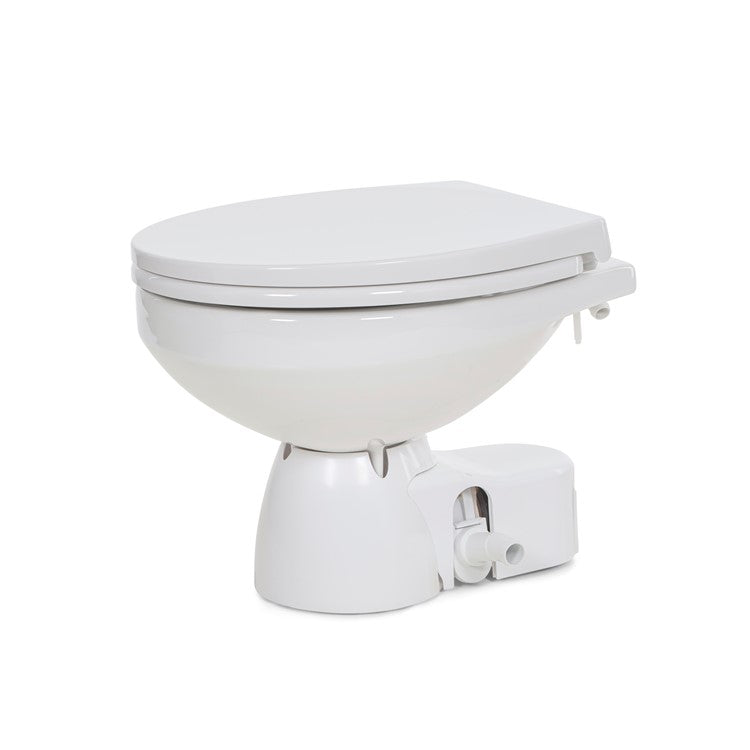

Jabsco 38045-4192 Quiet Flush E2 Electric Marine Toilet, 12V

The Jabsco Quiet Flush E2 is the electric head a lot of boaters end up wishing they'd installed the first time. It's a fresh water flush model, which means it draws from your onboard pressurized water supply instead of pulling raw water over the side. The practical payoff is a cleaner bowl and none of that low-tide smell raw water heads develop over a season. Push the touch-sensor panel and it flushes. That's it.

This is the regular bowl version on a permanent, rotatable base. The rotatable base is more useful than it sounds. In a tight sailboat head, the plumbing rarely lines up with where you actually want the bowl to sit, and being able to spin the base a few degrees lets you square the seat to the compartment instead of to the discharge fitting. Overall footprint is 14.8 inches wide, 18.9 inches deep, and 14.4 inches tall, so it drops into most heads on boats in the 30 to 40 foot range. That low 14.4 inch height is worth measuring against your compartment if you're on a pocket cruiser, since some of the smaller heads are genuinely tight.

Electrically, it runs on 12 volt DC and pulls up to 20 amps during the flush cycle. That's real current, so wire it right. We tell folks to run a dedicated circuit off the house bank with short, heavy-gauge cable and keep the voltage drop low. When the supply sags, the macerator slows down and you get incomplete flush cycles, which is the number one complaint we hear and almost always a wiring problem, not a pump problem. It's fused at 25 amps. If you find the fuse nuisance-tripping on the startup surge, step up to a slow-blow fuse of the same rating and that usually settles it down.

On the plumbing side, the fresh water flush wants a supply in the 20 to 40 psi range. If your water pressure is low, the toilet keeps trying to fill and you'll hear it cycling, so make sure your pump and accumulator can hold pressure. Run it with 1 inch sanitation hose and a properly installed vented loop above the waterline. The vented loop is not optional. It's what keeps the system from back-siphoning and turning a fresh install into a smell you can't chase down.

The touch-sensor flush panel is the piece people love day to day. There's no manual pump handle to wear out and no lever to explain to weekend guests. One touch adds water, one touch flushes. Keep the panel dry when you can, since these are electronic controls and standing moisture is their enemy over the long haul. Mount it somewhere it won't take a constant spray and it'll serve you well.

The seat and lid are composite with a slow-close hinge, so nothing slams when the boat rolls in a beam sea. A built-in solenoid valve meters the fresh water on every cycle, and the whole thing comes in a clean white finish that matches standard marine head compartments. It ships with the slow-close seat and cover.

Who's this for? Anyone repowering a tired manual head, or building out a new install on a cruising boat where the head gets daily use and you want push-button simplicity for guests who've never pumped a marine toilet in their life. It's not the cheapest head on the shelf, and it's not a fifteen-minute install. Give it a dedicated circuit, decent water pressure, and a vented loop, and it'll run quietly for years. Skip any of those three and you'll be back in the compartment with a headlamp on a Saturday morning, so do it once and do it right the first time.
