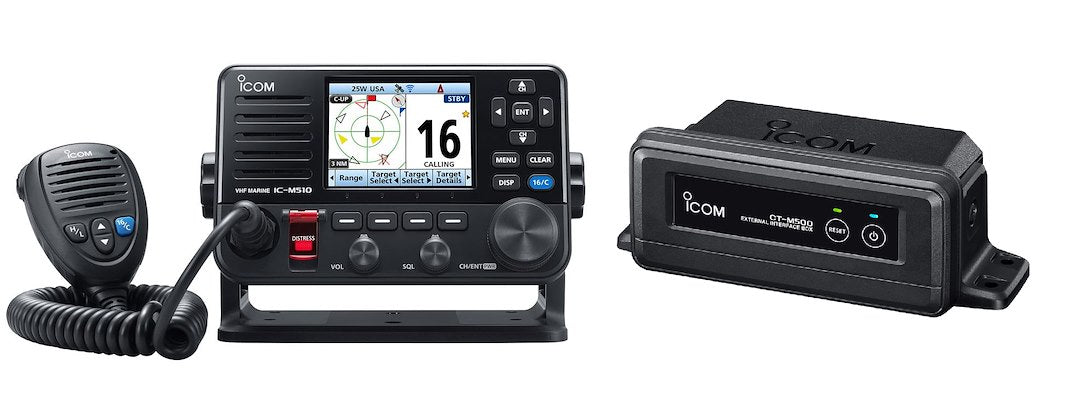

ICOM M510 PLUS Fixed Mount VHF Radio with AIS and CTM-500 Interface

The ICOM M510 PLUS is about as much VHF radio as you can put on a helm without moving up to a full black-box system. It's a fixed-mount Class D DSC set built around a bright color touchscreen, and this bundle pairs it with the CTM-500 interface so you can run the radio from a phone or tablet over Wi-Fi. If you've been squinting at a monochrome display and reaching across the dash to change channels, this is a real step up.

The touchscreen is the headline. You get a clean color layout that shows channel, position, and DSC status at a glance, and you tap through the menus instead of scrolling with a knob. Nice on a busy console. One honest caution from folks running open boats: that TFT can glare in direct sun, so if your helm faces the sky, plan on a sun hood or a tilt bracket to angle it. It's a screen thing, not a radio thing, but worth knowing before you drill the mount.

The PLUS in the name means there's an AIS receiver built right in. So you'll see nearby AIS-equipped traffic on the radio's own screen, and you can push those targets out to a compatible chartplotter. Built-in GPS handles your position for DSC distress calls and AIS. Quick real-world note from the docks: that internal GPS wants a clear view of the sky. Tuck the radio deep under a hardtop or down in a cabin and it can struggle to lock, so a lot of boaters add an external GPS puck for a solid fix. And if you want that GPS position feeding your plotter over NMEA, you'll likely run a firmware update from a PC first, and that data cable isn't in the box.

On the air you get the full 25 watts on high and 1 watt on low, with all USA, Canadian, and International channel banks plus 10 NOAA weather channels with alert. The border-cruising crowd should know the channel-bank switching lives a few taps into the menu, so it's worth learning before you're crossing into Canadian waters. For the wiring, treat 25 watts with respect. Run at least 14 AWG on the power leads, especially on a long pull back to the panel, or you'll see the voltage sag and your transmit suffer. The set itself is compact at 6.8 inches wide and only 2 inches deep, which fits tight modern dashes. Just leave yourself about 2 inches of clearance behind it so the heat sink can breathe. Cook it in a sealed box and a hot 25-watt transmit can shut it down.

It's public-address capable too, so you can wire in a hailer horn and talk to the foredeck crew or run fog-signal functions. Plan for a dedicated 4 to 6 ohm hailer speaker and its own fuse. The supplied harness doesn't carry that speaker run, so budget for the extra wire and horn if the hailer matters to you.

Wireless LAN is where the CTM-500 interface earns its spot in the bundle. It lets a smartphone or tablet act as a wireless control point for the radio, so you can check traffic, change channels, or use intercom features from the flybridge or the cockpit without running a second wired station. The NOAA weather alert will ping you when the local office pushes a warning. Heads up that it can false-trigger if it's listening to a distant station, so lock it to your local weather channel once and it settles right down.

Build quality is what you'd expect from ICOM. The body carries IP68 dust-tight and waterproof protection and it's rated to run from -4 to 140 degrees Fahrenheit, so it handles a wet, hot, or freezing helm. In the box you get the HM-205RB speaker microphone, DC power cable, microphone hanger, mounting bracket kit, the built-in AIS receiver, and the CTM500-11 VHF radio interface. It's a serious primary radio for a cruiser, a sportfisher, or any boat where the helm does double duty as your comms station. Wire it right and it'll be the set you don't think about, which is exactly what you want from a VHF.
