Icom M510 Fixed Mount VHF Marine Radio with GPS and WiFi

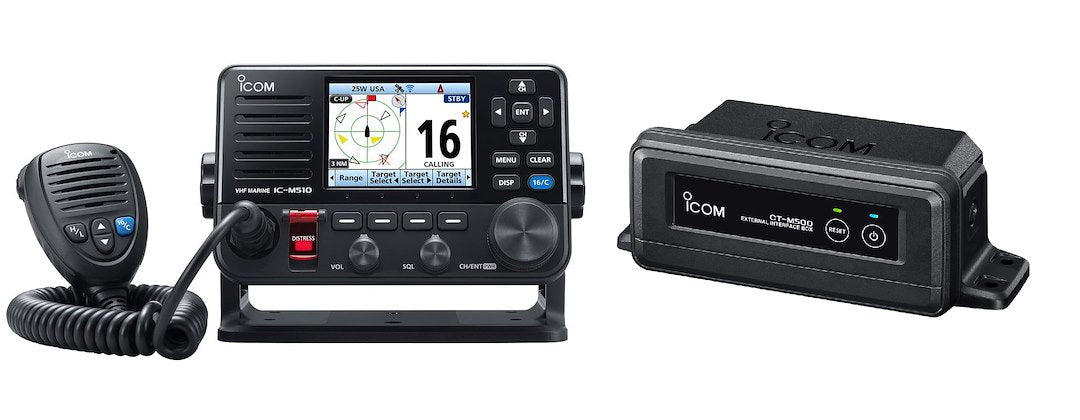

The Icom M510 sits at the top of Icom's fixed-mount VHF lineup, and this bundle pairs it with the CT-M500 interface box and the HM-205RB speaker microphone so you've got a full helm station right out of the carton. It's a 25-watt Class D DSC radio built for real saltwater use, with an IP68 rating that means it shrugs off spray, rain, and a full dunk. If you run a center console, a cruiser, or a sportfisher and you want one radio that does everything at the dash, this is it.

The first thing you notice is the screen. Icom went with a wide TFT color display instead of the old segmented LCD, so channel numbers, DSC position data, and the menu all read clean, even at a glance. The whole unit is compact too, just 2 inches deep behind the dash, which matters a lot when you're fitting it into a tight console or a crowded T-top pod. Measure your cutout carefully and give it a little air. Owners running enclosed consoles in hot climates tell us a bit of ventilation keeps it happy through a Florida summer.

Where the M510 really separates itself is the Wireless LAN function. The radio has built-in WiFi, so you can pair it with the free RS-M500 app on your phone or tablet and run the radio from anywhere on the boat. Up on the bow setting the hook? You can still see the channel, make a call, or check DSC info from your phone. Add the HM-205RB speaker mic that ships in this bundle and you've effectively got two full control points, one at the dash and one wherever you mount the mic.

On the safety side, this is a proper Class D DSC radio with a dedicated red distress button under a spring cover. Wire in a GPS feed and one press sends your position and vessel info to the Coast Guard and every DSC radio in range. The M510 is GPS-capable through an external input rather than a built-in receiver, so plan on running a GPS or NMEA source to it. Heads up from the field: match the baud rate to your chartplotter or you'll see no position data. It's an easy fix once you know to look for it.

You also get all USA, International, and Canadian channel banks, all 10 NOAA weather channels with weather alert, and full public address capability. Hook up a loud hailer horn and the M510 doubles as a PA for docking, hailing a bridge, or getting a crew member's attention over engine noise. The weather alert will ping you when NOAA pushes an advisory, though if you're running near the Canadian border you may want to tune which channels it monitors to cut down on cross-border false alarms.

A couple of honest notes so you buy the right radio. The M510 does not have built-in AIS. If you want targets on your plotter, you'll add a separate AIS receiver or step up to the M510 AIS version. And the 1-watt low-power setting is there to keep short-range chatter off the airwaves, so remember to bump it back to 25 watts when you need to reach a distant bridge or another boat well offshore. Beyond that, this is about as complete as a fixed VHF gets, and the bundle means you're not hunting for a speaker mic and interface after the fact.

Install is straightforward for anyone comfortable running power and an antenna lead. The bundle includes the DC power cable, a mounting bracket kit, and a microphone hanger, so mounting hardware is covered. Give it a clean 12-volt supply, a good VHF antenna up high, and a solid ground, and you're on the air. For the DSC and position features, run your GPS or NMEA line and enter your MMSI once. If you've never programmed an MMSI, we're happy to walk you through it. Get it right and the M510 becomes the piece of gear you're glad you spent on the day you actually need it.
