Humminbird 14-M-SIDB-Y Side Imaging and Dual Beam Y-Cable

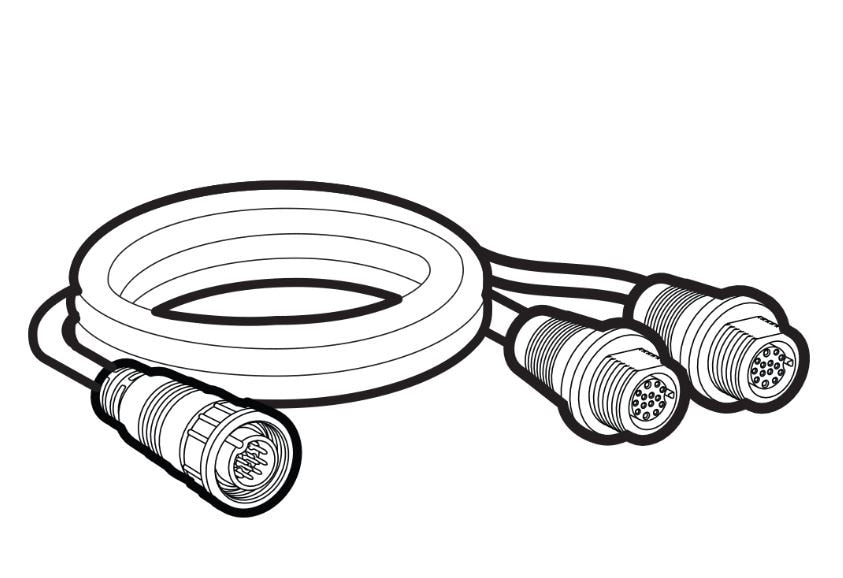

If you run Side Imaging on a Humminbird and you've ever wished you could add a dedicated 2D transducer without stacking a transducer switch behind the dash, this is the cable that does it. The 14-M-SIDB-Y is a factory Humminbird Y-cable, sometimes called a splitter, that lets you feed a Side Imaging transducer and a separate dual beam transducer into a single head unit at the same time. One connector at the unit, two transducers on the other end. That's the whole idea.

Here's why that matters on the water. Side Imaging is fantastic for scanning structure and finding fish out to the sides of the boat, but it isn't always the sharpest tool for holding bottom at speed. A dedicated dual beam 2D transducer tracks bottom cleanly when you're running, so you keep a solid depth reading and a clean 2D return while you idle around looking at side scan. Instead of choosing one or the other, the Y-cable lets you run both. You get the Side Imaging picture and the high-speed 2D bottom tracking off the same unit.

Think about a typical day working a shoreline. You idle in, watching Side Imaging paint the laydowns and rock piles off to either side. You mark a spot, then throttle up to reposition. On the run, that dedicated dual beam ducer is holding bottom and depth solid, so you're not staring at a scrambled reading every time you come off idle. Pull back to trolling speed and you've got your Side Imaging back, sharp as ever. That back-and-forth, scan then run then scan, is exactly the workflow this cable is built for.

The old way to do this was a transducer switch, a separate box wired between your transducers and your unit that you'd toggle to pick which ducer was live. It worked, but it was one more thing to mount, one more connection to corrode, and one more step at the helm. The Y-cable does away with all of that. Both transducers stay connected, the unit sees them together, and there's nothing to flip. Cleaner install, fewer failure points, less clutter behind the dash.

This cable is built for Humminbird's bigger units, the Solix, Onix, and ION families, and it supports MEGA Side Imaging so you're not giving up any of that high-resolution detail. It uses the 14 M connector, and it's specifically a Side Imaging plus dual beam setup. In other words, it's meant to pair one Side Imaging transducer with one dual beam transducer, not to run two Side Imaging ducers. If you're trying to split two Side Imaging transducers for a port-and-starboard setup, that's a different Humminbird cable. This one is for the Side Imaging plus 2D combination.

The cable itself is 30 inches long, which is plenty to reach from the back of a flush-mounted Solix or Onix down to where your transducer leads come up through the rigging. We'd still route it with a little care. Give the junction where the two legs split a clean, supported path so it isn't hanging on the connector, and if you're running it anywhere near a transom or through-hull, a dab of dielectric grease on the connection keeps corrosion out over the seasons. It's a simple plug-in job, no tools beyond what you already use to pull your transducer connectors.

So who's this for? Any Humminbird angler running a Solix, Onix, or ION who wants the best of both worlds, Side Imaging for scanning and a dedicated 2D ducer for clean high-speed bottom tracking, without wiring in a switch box. If that's you, and you've already got both transducers, the 14-M-SIDB-Y is the part that ties them together. If you only run a single transducer, you don't need it. Simple as that.
