Hella ValueFit 500 LED Driving Light Kit, Set of 2

SKU: 2007958 · UPC: 760687177166 · MPN: 358117171
4.7 · 0 reviews
Authorized dealer49% off
$140.99
$278.90Save $137.91
or 4 payments of $35.24 with Affirm · See disclosures
In stock — Ships Monday Pickup Tuesday · Fort Lauderdale (FL)
SAME-DAY SHIPPING · 14:23 EST
Order now, ships Monday
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$140.99
02 · Overview

Hella ValueFit 500 LED Driving Light Kit, Set of 2 — Product description

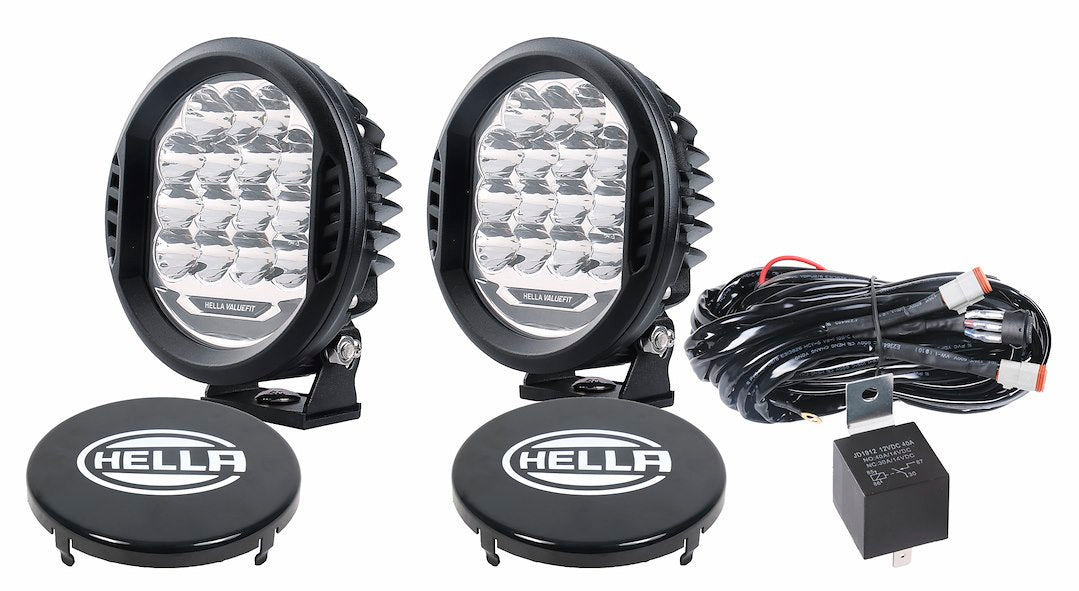

The Hella ValueFit 500 is a matched pair of round LED driving lights that throw a clean, focused beam out in front of you. Each one puts out 2100 lumens on just 22.5 watts and runs on 10 to 30 volts, so it drops onto a 12V or 24V boat with no fuss. The kit shows up complete, with mounting hardware, a switch, a relay, a harness, and stone shields.

The Hella ValueFit 500 LED Driving Light Kit gives you a matched pair of round LED driving lights, ready to throw a clean, focused beam down the water or the road ahead. Each light pulls 22.5 watts and puts out 2100 lumens through a clear lens, so you get real forward reach without hammering your battery bank. It's a complete kit. Two lights, the mounting hardware, a switch, a relay, a pre-terminated wiring harness with a Deutsch DT connector, and stone shields all come in the box. You're not hunting for parts on install day.

These run on anything from 10 to 30 volts, which means they drop straight onto a 12-volt or a 24-volt system with no converter. That's handy whether you're wiring them to a center console's house bank or a hardtop circuit. The driving beam is a forward pattern built for distance, not a wide wash of light, so aim them where you actually need to see. On a boat, that's usually the water ahead when you're idling into a dark slip or running a familiar channel after sundown.

The pedestal mount is the standout here for practical rigging. It bolts to a flat surface or clamps to a tower leg, a hardtop rail, or a bow rail with the right backing, and it lets you tilt the light to dial in your aim. Hella builds the ValueFit line to take a beating, and the black housing keeps things low-key on darker rigs. The stone shields snap over the lens to protect the clear face from spray, sand, and debris kicked up on the trailer or on a rough run.

There's a reason boaters keep coming back to Hella for lighting. The ValueFit line uses LEDs rated for a long service life, so you're not pulling the light apart to swap a bulb every couple of seasons. Solid-state lighting also shrugs off the constant pounding and vibration that kills filament bulbs on a boat, and it draws far less current than an old halogen driving light of the same output. Less heat, less draw, more hours on the water. That's the trade you're making here, and it's a good one.

A quick word on install, because these kits reward doing it right. The Deutsch DT connector is a solid weather-tight fitting, but salt air is salt air. Hit the pins with dielectric grease when you plug it in and you'll save yourself a corrosion headache down the line. If you're mounting a pedestal on a planing hull, add a lock washer and a dab of thread locker so vibration doesn't walk the base loose over a season. And remember the stone shields are there for transport and spray, not for running, so if they trap heat on a long night run, pop them off.

Who's this for? Anybody who wants a factory-matched pair of auxiliary driving lights with the wiring already sorted. The included switch and relay mean you're not sourcing your own trigger circuit, and the pre-made harness keeps the job clean. It's a straightforward upgrade for a boat that needs more forward light, and because it's the ValueFit 500, it's just as at home on a truck, a trailer rig, or a utility vehicle. The 22.5-watt draw per light is easy on a small outboard's charging system, though on long harness runs it's worth checking for voltage drop and upsizing the wire if you extend past the supplied harness.

What it isn't: this is a driving beam, so it's not the tool for a wide, up-close work-light wash. If you want to light up a whole cockpit or a dock apron, that's a flood pattern's job. Driving lights like these shine when you need to punch light out in front of you. Mount them, aim them a touch below level, and they'll do exactly that.

Key Features

  • 2100 lumens of driving-beam output per light for real forward reach on dark channels and open runs
  • 22.5 watts of draw per light keeps the current load light on small charging systems
  • 10 to 30 volt input runs on 12V and 24V systems with no converter needed
  • Round 6-inch clear-lens design in a black housing for a clean, low-profile look
  • Pedestal mount tilts to aim and bolts to hardtops, towers, rails, or flat decks
  • Complete kit includes two lights, mounting hardware, a switch, a relay, and a wiring harness
  • Deutsch DT connector on the pre-terminated harness for a weather-resistant plug-in
  • Stone shields included to protect the clear lens from spray, sand, and debris
  • LED light source rated for long service life with no bulbs to replace
  • Sold as a factory-matched set of 2 for balanced left-and-right aim

Why Buy from NVN Marine

  • Authorized Hella Marine reseller, full manufacturer warranty
  • NMEA member and ABYC certified, advice from real boat techs
  • Same-day shipping before 3 PM ET on in-stock items
  • NY headquarters and Fort Lauderdale flagship retail store
NVN Marine — 11 W State Road 84, Fort Lauderdale, FL 33315 Available for pickup at our Fort Lauderdale store (Tuesday) $140.99
03 · The numbers

Technical specifications

Title Hella ValueFit 500 LED Driving Light Kit, Set of 2
Brand Hella Marine
Manufacturer Part Number 358117171
UPC 760687177166
Product Line ValueFit 500
Light Source LED
Beam Pattern Driving Beam
Lumens 2100 Lumens
Wattage 22.5 Watts Per Light
Voltage 10 to 30V DC
Lens Shape Round
Diameter 6 Inch
Lens Color Clear
Housing Color Black
Mounting Style Pedestal Mount
Connector Deutsch DT
Quantity Set of 2
Included In Kit Mounting Hardware, Switch, Relay, Wiring Harness with DT Connector, Stone Shields
04 · Before you buy

Frequently asked questions

What comes in the Hella ValueFit 500 driving light kit?

You get a matched set of two round LED driving lights plus the mounting hardware, an on/off switch, a relay, a pre-terminated wiring harness with a Deutsch DT connector, and a pair of stone shields. It's everything you need to wire and mount both lights.

What voltage do these lights run on?

They accept 10 to 30 volts, so they work on standard 12-volt and 24-volt systems without any extra converter or resistor.

Is this a spot beam or a flood beam?

It's a driving beam, a forward-focused pattern built for distance. It throws light out in front of you rather than washing a wide area up close.

How bright are they and how much power do they draw?

Each light puts out 2100 lumens and draws 22.5 watts. That's a strong forward beam for the current load, which stays easy on a small outboard's charging system.

How do they mount?

Each light sits on a pedestal mount that bolts to a flat surface and tilts so you can aim it. With the right backing plate it works on hardtops, tower legs, bow rails, and roll bars.

What are the stone shields for?

They snap over the clear lens to protect it from spray, sand, and debris. They're meant for transport and protection, so if you notice heat building on a long run, take them off while you're running.

What connector does the wiring harness use?

The included harness is pre-terminated with a Deutsch DT connector, a weather-resistant plug that's common on marine and off-road wiring. A little dielectric grease on the pins at install helps keep salt air out.

Do I need to buy a separate relay or switch?

No. A relay and a switch are both included in the kit, so you have the full trigger circuit ready to wire in.

How many lights are in the box?

Two. The ValueFit 500 kit is sold as a factory-matched set of 2 so your left and right beams match.

Will these work on a truck or trailer as well as a boat?

Yes. It's the Hella ValueFit 500 line, so the same kit that lights up the water ahead works just as well on a truck, trailer, or utility rig running 12 or 24 volts.
