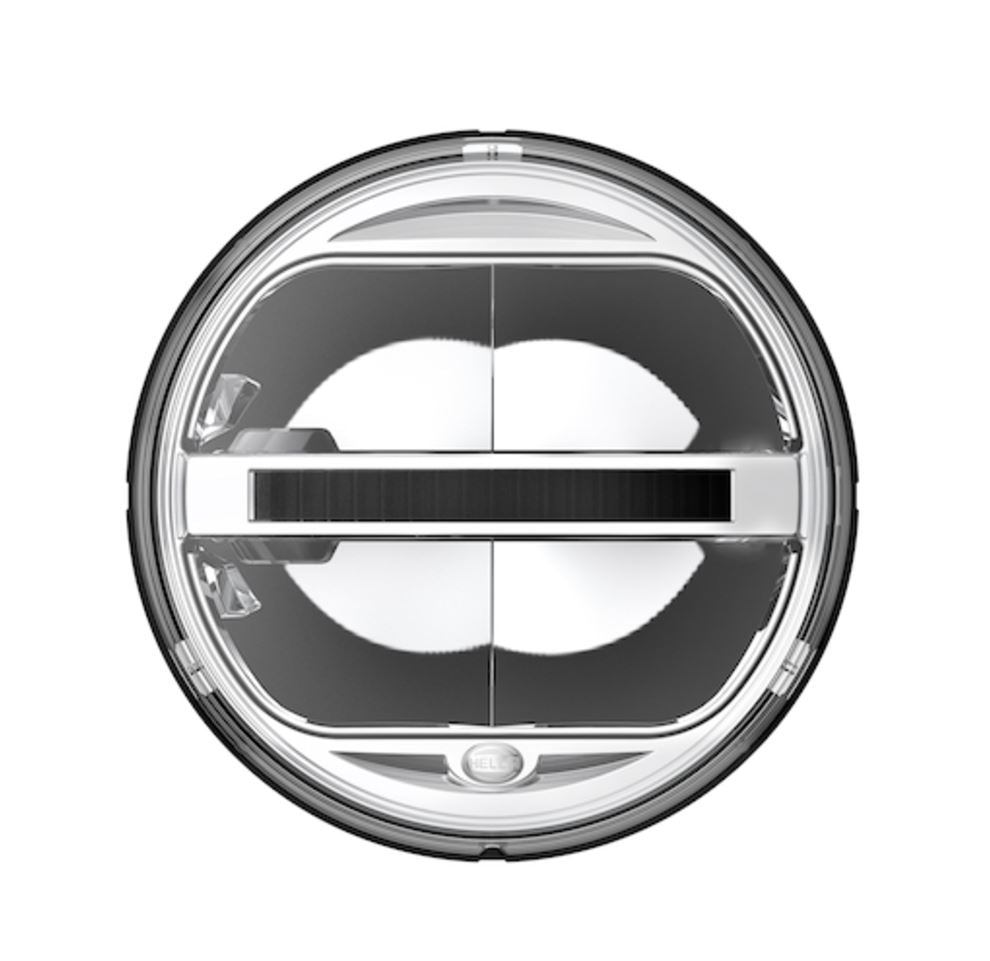

Hella Marine Rallye 4000 LED Flood Insert, 1220 Lumens

The Hella Marine Rallye 4000 LED Flood Insert takes one of the most recognized lamp housings on the water and brings it into the LED era. It's a drop-in LED module built to sit inside the 203 millimeter round Rallye 4000 lamp, throwing a wide flood beam rated at 1220 lumens. If you've already got Rallye 4000 lamps on the boat, or you're building a new light setup and want a name that's been proven offshore for decades, this is the insert that gets you there.

Flood is the key word here. This isn't a pencil-beam spot meant to reach a channel marker a quarter mile out. It's a wide, even wash of light built for close-in work. Think deck lighting, cockpit illumination, lighting up the swim platform while you're tidying gear, or throwing light across the dock as you back in after dark. On boats in the 25 to 30 foot range the flood pattern covers the working area nicely without leaving hard shadows. Larger boats often run a pair to cover a wider deck.

The build is classic Hella Marine. An aluminum housing does double duty as the structure and the heat sink, pulling warmth away from the LEDs so they hold their output and last. The lens is clear polycarbonate, which shrugs off the knocks and flying gear that break glass. Hella Marine calls their gear fit and forget, and that philosophy is why you still see these lamps working years after install. It ships with a cable pigtail already fitted, so you're wiring into your existing circuit rather than fishing a lead through the lamp body.

Installation is straightforward if your boat already has the Rallye 4000 cutout. The insert seats into the 203 millimeter round opening. A couple of tips from folks who've done a bunch of these. Hit the mounting screws with a little dielectric grease before you snug them down, because bare aluminum and stainless fasteners in salt air will fight each other over a season. And plan your wiring run. The factory pigtail is a short lead, so a flybridge or hardtop install usually wants an extension and a proper waterproof junction rather than a butt connector left exposed to spray.

LED is the reason to make this swap. Next to the halogen insert it replaces within the same Rallye 4000 line, the LED version draws far less current, runs cooler, and doesn't have a filament to shake loose when you're pounding through a chop. For anyone on a battery budget, running house loads at anchor, that lower draw matters. You get useful deck light without watching your voltage sag.

Who's this for? Center console owners who want clean cockpit light for late runs and early launches. Cruisers who want deck wash for boarding and line handling. Sportfishers rigging a hardtop for cockpit work at the dock. It's also at home on RVs, overland rigs, and utility vehicles that run the Rallye 4000 platform, since the insert is the same regardless of what it's bolted to. Anywhere you need a broad, honest flood of light and a lamp that'll take abuse, this earns its spot.

One more thing worth understanding is the difference between this flood insert and its spot-beam sibling in the same family. The flood spreads that 1220 lumens across a wide angle for area coverage up close, while the spot concentrates the same idea into distance. If your job is lighting the boat itself, the deck, the cockpit, the water right behind you, flood is the right call. If you're trying to pick out something far off, that's a different tool. Match the beam to the job and you'll be happy with the result.

A couple of honest notes to close. Polycarbonate lenses can haze from UV over time, so an occasional polish keeps the output clean. And because the housing is aluminum, a yearly check of the mounting hardware and a fresh dab of grease keeps corrosion from getting a foothold. Do that, and this insert will light your deck for a long, long time.
