Hella Pagid Rear Brake Pads BMW 128i 328i X1 355011301
Hella Pagid Rear Brake Pads BMW 128i 328i X1 355011301 — Product description

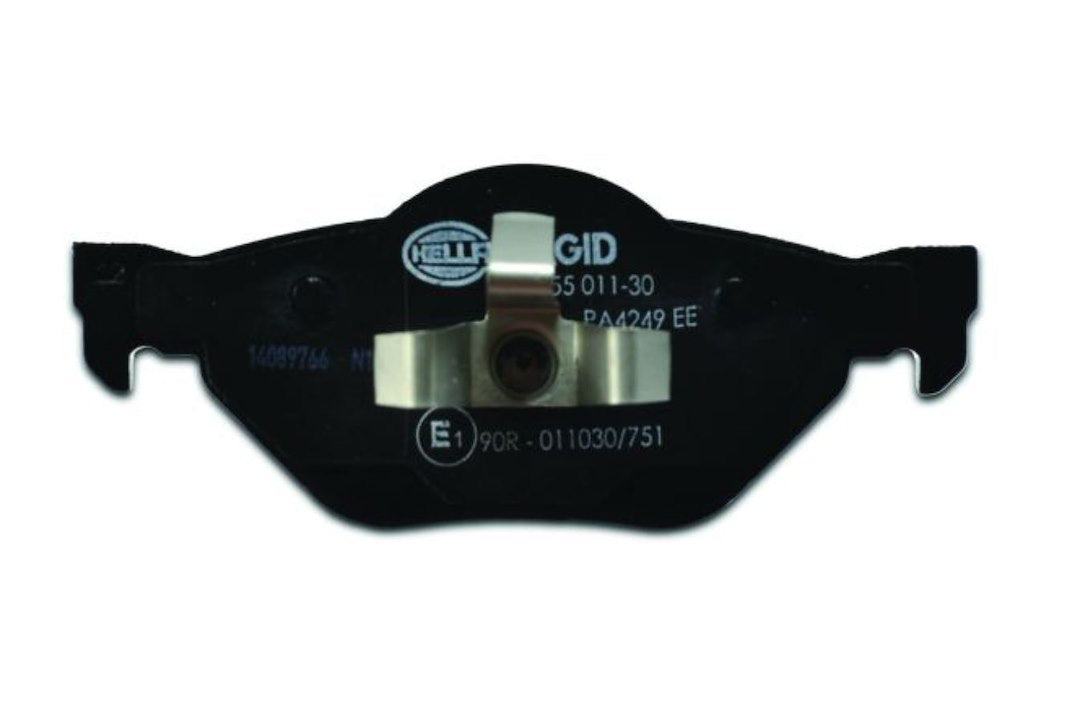

The Hella Pagid 355011301 is a rear low-metallic brake pad set for the BMW 1 Series, 3 Series and first-generation X1, 2006 through 2015. Low-metallic friction cut to the factory caliper shape, with adhesive shims included, for strong stops and good heat control on a daily-driven BMW.
These are Hella Pagid rear brake pads for the BMW 1 Series and 3 Series, plus the first-generation X1. If you're driving a 128i, a 325i or 325xi, a 328i, 328xi or 328i xDrive, or an X1 from the 2006 through 2015 model years, this is the set that goes on the back axle. Low-metallic friction material, cut to the factory Teves caliper shape, ready to bolt in.
Low-metallic is a good middle-ground pad for a daily-driven BMW. It's got a small amount of steel blended into the friction mix, which gives you strong, confident stops and pulls heat off the rotor quickly. You get firm pedal feel when the car's cold and when it's been worked hard on an on-ramp. The trade-off is a little more brake dust than a pure ceramic pad, and a touch more noise potential if the hardware isn't clean. For most owners that's a fair deal for the extra bite.
The set covers the complete rear axle, so both back wheels get fresh pads out of one box. Adhesive-backed shims come attached to cut down on that high-pitched squeal you get from bare backing plates. The pads are prepared for a pad wear indicator, but the sensor itself isn't in the box. On these BMWs the rear wear sensor is a separate part (Hella Pagid 355201141), so if your old one is due, order it alongside these and swap it at the same time.
People ask how low-metallic compares to semi-metallic and ceramic. They're not the same thing. Semi-metallic pads carry a higher steel content, which means great high-heat performance but more noise and rotor wear. Ceramic pads run cleaner and quieter but can feel a hair softer when cold. Low-metallic sits in between, and it's what a lot of European cars came with from the factory because it balances bite, heat handling and pedal feel for street driving. If your BMW came on this style of pad, staying with low-metallic keeps the brake feel you're used to.
Fitment note. BMW ran a lot of drivetrain and transmission combinations across these chassis, so match by your exact model, year and VIN before you order. The rear pad shape is shared across the 128i, 325i, 328i and X1 in these years, which is why one part number covers the group. If your car has the M Sport brake package or an aftermarket big-brake kit, that's a different caliper and this isn't your pad.
Installing them is a straightforward afternoon job if you've done pads before. You'll need to retract the caliper piston, and on a car with an electronic parking brake you may need to put the rear calipers into service mode with a scan tool first so the actuators back off. Clean the caliper carrier, grease the slide pins and the pad ears, seat the new pads, and torque the caliper bolts to spec. Bed them in with a series of moderate stops from around 30 mph before you lean on them hard, and they'll settle in quiet.
How long will they last? That depends on how you drive and where. City driving with a lot of stop-and-go wears pads faster than highway miles. Since there's no sensor in this box, check the pad thickness visually at every tire rotation, or fit the separate wear sensor so the dash warns you. Replace them before the friction material gets down to the backing plate, or you'll score the rotors and turn a pad job into a pad-and-rotor job.
Want the honest take? Low-metallic pads like these are the right call if you want a stock-feeling brake that stops hard and lasts, and you don't mind wiping a little dust off the wheels now and then. If your car's rotors are grooved, lipped or below minimum thickness, do the rotors at the same time. New pads on tired rotors never feel right, and you'll be back under the car sooner than you'd like.
Key Features
- Low-metallic friction material for strong, confident stops with good heat dissipation
- Fits the rear axle of BMW 128i, 325i/325xi, 328i/328xi/328i xDrive and X1, 2006-2015
- Cut to the factory Teves caliper shape for a direct, no-modification fit
- Prepared for a pad wear indicator (wear sensor 355201141 sold separately)
- Adhesive-backed shims included to cut down on brake squeal
- Covers the complete rear axle in one box
- Pad dimensions 123 mm wide, 48.1 mm tall, 17.3 mm thick
- WVA 23927 reference for quick catalog cross-checking
Why Buy from NVN Marine
- Authorized Hella Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Hella Pagid Rear Disc Brake Pad Set, Low-Metallic |
|---|---|
| Brand | Hella Pagid |
| Manufacturer Part Number | 355011301 |
| UPC | 4082300355611 |
| Friction Material | Low-Metallic |
| Axle Position | Rear |
| Configuration | Complete rear axle set |
| Pad Width | 123 mm |
| Pad Height | 48.1 mm |
| Pad Thickness | 17.3 mm |
| Weight | 2.21 lb (1 kg) |
| WVA Number | 23927 |
| Brake System | Teves |
| Wear Sensor | Prepared for wear indicator, sensor not included |
| Wear Sensor Part (sold separately) | Hella Pagid 355201141 |
| Shims | Adhesive-backed shims included |
| OE Reference | 34216774692 |
| Fitment | BMW 128i, 325i/325xi, 328i/328xi/328i xDrive, X1 (2006-2015) |
Frequently asked questions
Which vehicles does this brake pad set fit?
It fits the rear axle of the BMW 128i, 325i and 325xi, 328i, 328xi and 328i xDrive, and the first-generation X1, across the 2006 to 2015 model years. Match by your exact model, year and VIN before ordering, since BMW used several drivetrain combinations on these chassis.
Is this a front or rear pad set?
Rear. This is the set that goes on the back axle. If you need the fronts, that's a different part number.
Does it include a wear sensor?
No. The pads are prepared for a pad wear indicator, but the sensor isn't in the box. On these BMWs the rear wear sensor is a separate part (Hella Pagid 355201141), so order it alongside the pads if yours is due.
What does low-metallic mean, and are these pads any good?
Low-metallic pads blend a small amount of steel into the friction mix. That gives you strong stops and quick heat dissipation with a firm pedal, cold or hot. They make a little more dust than ceramic pads, but for a daily-driven BMW they're a solid, factory-style choice.
Are low-metallic and semi-metallic pads the same thing?
No. Semi-metallic pads have a higher steel content, so they handle high heat well but can be noisier and harder on rotors. Low-metallic pads use less metal and sit between semi-metallic and ceramic for street driving.
How many pads are in the set?
The set covers the complete rear axle, so both back wheels get fresh pads out of one box.
Are shims included?
Yes. Adhesive-backed shims come attached to the pads to help cut down on the high-pitched squeal you get from bare backing plates.
Do I need to replace my rotors at the same time?
Only if they need it. If the rotors are grooved, lipped or below minimum thickness, replace them with the pads. New pads on worn rotors never feel right and wear out faster.
Do I need any special tools to install these?
You'll need to retract the caliper piston, and on a car with an electronic parking brake you may need a scan tool to put the rear calipers into service mode first. Beyond that it's standard pad-service tools plus caliper grease.
Do these pads need to be bedded in?
Yes. Bed them in with a series of moderate stops from around 30 mph before any hard braking. That transfers an even layer of friction material to the rotor and helps them run quiet.
