Hella Pagid 355133031 Vented Brake Disc 345mm 5x112
Hella Pagid 355133031 Vented Brake Disc 345mm 5x112 — Product description
This is a Hella Pagid vented brake disc, a one-piece gray cast iron rotor measuring 345mm across with a 5x112 bolt pattern and a 67mm hub bore. The zinc coating keeps the hat and edges from rusting up. It's sold as a single disc, so order the pair if you're doing both sides of the axle.

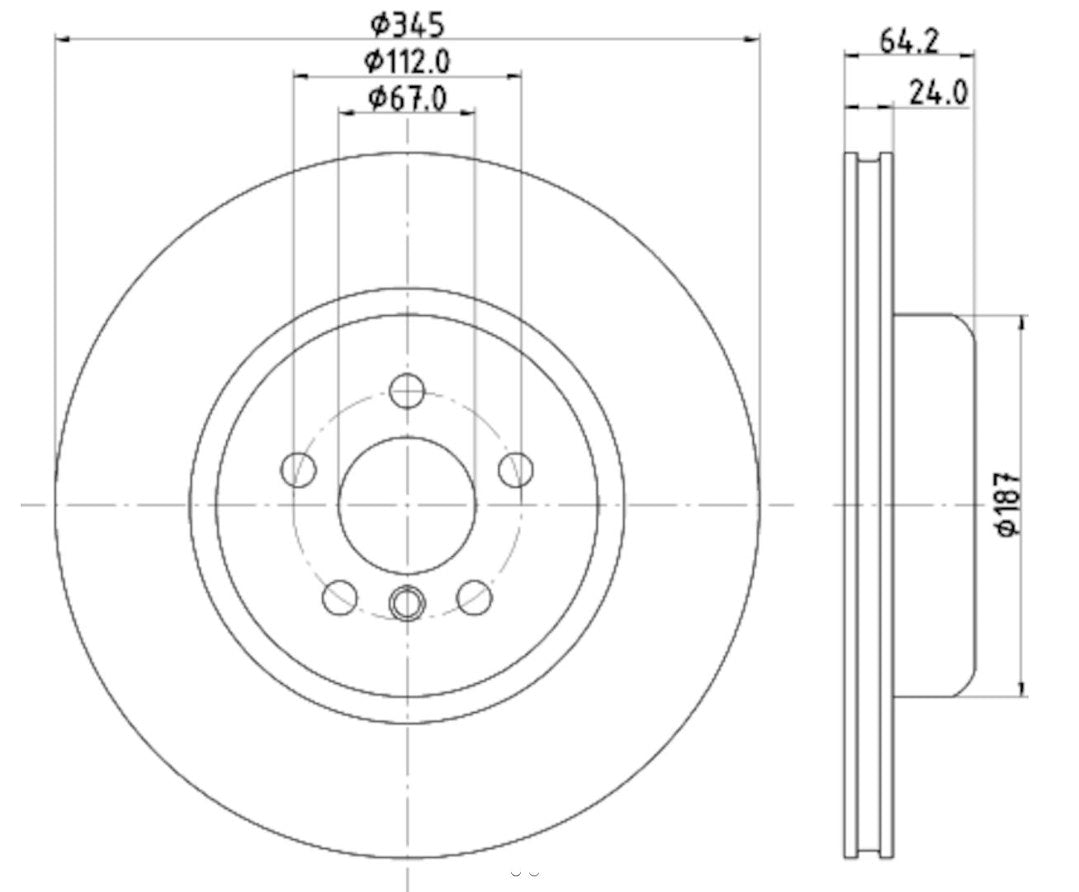

Hella Pagid discs are what you fit when you want a straight, quiet stop without paying dealer prices. This one is a vented, one-piece rotor turned from gray cast iron, 345mm in diameter with a 24mm thickness and a 64.2mm overall height. The 5x112 bolt pattern and 67mm hub bore tell you a lot about what it fits, so match those numbers to your car before you order.
Vented discs like this run cooler than solid rotors because air moves through the internal vanes as the wheel turns. That's why you'll usually find a disc this size on the front axle, where most of the braking heat ends up. The zinc coating on the hat and outer edges fights the surface rust that makes a rotor look tired after one wet winter.
It ships as a single disc. Brakes work in pairs, so grab two if you're replacing both sides of the axle. And always confirm the exact fitment against your VIN using the part number.
Key Features
- 345 millimeter diameter, one-piece vented design for cooler running under repeated stops
- 5 x 112 millimeter wheel bolt pattern with a 67 millimeter hub bore, match to your vehicle before ordering
- Gray cast iron with a zinc coating on the hat and edges to resist surface rust
- 24 millimeter thickness, 64.2 millimeter overall height
- Sold as a single disc
Why Buy from NVN Marine
- Authorized Hella Pagid reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Vented; One Piece Design; Wheel Bolt Pattern 5 x 112 Millimeter; 345 Millimeter Diameter x 64.2 Millimeter Height x 24 Millimeter Thickness; 67 Millimeter Hub Diameter; Zinc Coated Gray Cast Iron; Single |
|---|---|
| Brand | Hella Pagid |
| Manufacturer Part Number | 355133031 |
| UPC | 4082300736854 |
| Disc Type | Vented |
| Design | One Piece |
| Diameter | 345 Millimeter |
| Height | 64.2 Millimeter |
| Thickness | 24 Millimeter |
| Hub Diameter | 67 Millimeter |
| Wheel Bolt Pattern | 5 x 112 Millimeter |
| Material | Zinc Coated Gray Cast Iron |
| Quantity | Single |
Frequently asked questions
Is this a front or rear disc?
It's a vented disc, and vented discs usually run on the front axle where braking heat is highest. Check the 345mm diameter, 5x112 bolt pattern, and 67mm hub bore against your car to be sure.
Does this come as a pair?
No. It's sold as a single disc. Brakes work in pairs, so order two if you're doing both sides of the axle.
What does the zinc coating do?
It protects the non-friction surfaces, the hat and outer edges, from surface rust. The pads clean the friction face themselves over the first few stops.
How do I know it fits my car?
Match the key numbers: 345mm diameter, 24mm thickness, 5x112 wheel bolt pattern, and 67mm hub bore. Then confirm against your VIN using part number 355133031.
